SKF TMBS 50E Strong back pullers

Product Code: TMBS 50E

Part/No: 033770

Brand: SKF

Click here for more details

The SKF TMBS 50E strong back puller facilitates dismounting of bearings in applications where the use of traditional jaw pullers is restricted due to lack of space or when the application requires a long reach. The puller is operated mechanically and espe

Easily separator placement between bearing and shoulder on the shaft
Spring-loaded centre point of spindle allows easy puller centring and minimises the risk of shaft damage
Dismounting force is generated by mechanical spindle
Firm grip behind

€267.79

Tax included

Quantity

100% Shopping Security

Shipped within 24 hours

Dimensions

Case dimensions (lxhxw) 295x190x50 mm

Separator height 16 mm

Properties

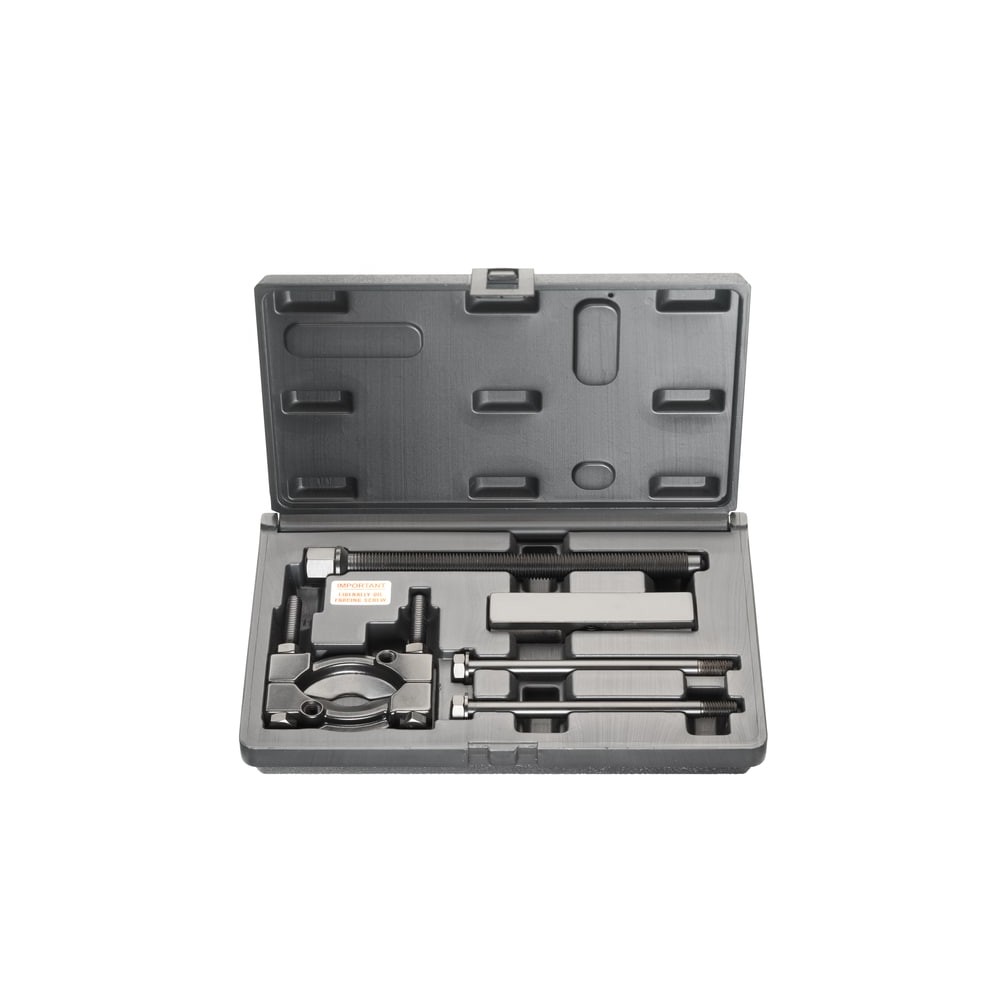

Content 1xseparator set,1xbeam,1x mechanical spindle,2xmain rods,IFU QR code card,Case

Recommended applications For dismounting of bearings, gears, pulleys and other industrial ring shaped components from shafts in industrial, construction and agricultural applications, where there is limited space behind the component and traditional jaw pullers won't fit.

Colour Black

Relative humidity max 75%

Recommended storage temperature – 50 °C

Special features Provide the possibility to engage the inner ring of the bearing, thus making sure that no withdrawal force is transmitted through the rolling elements

Product weight 1.8 kg

Pulling force (max) 30 kN

Spindle torque (max) 70 N·m

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes

Dismounting force generation Spindle

Suitable for workpiece dismounting from a Housing No

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft) Yes

Suitable for bearing type(s) All

Logistics

EAN code 07316572298459

Product net weight 1.4 kg
