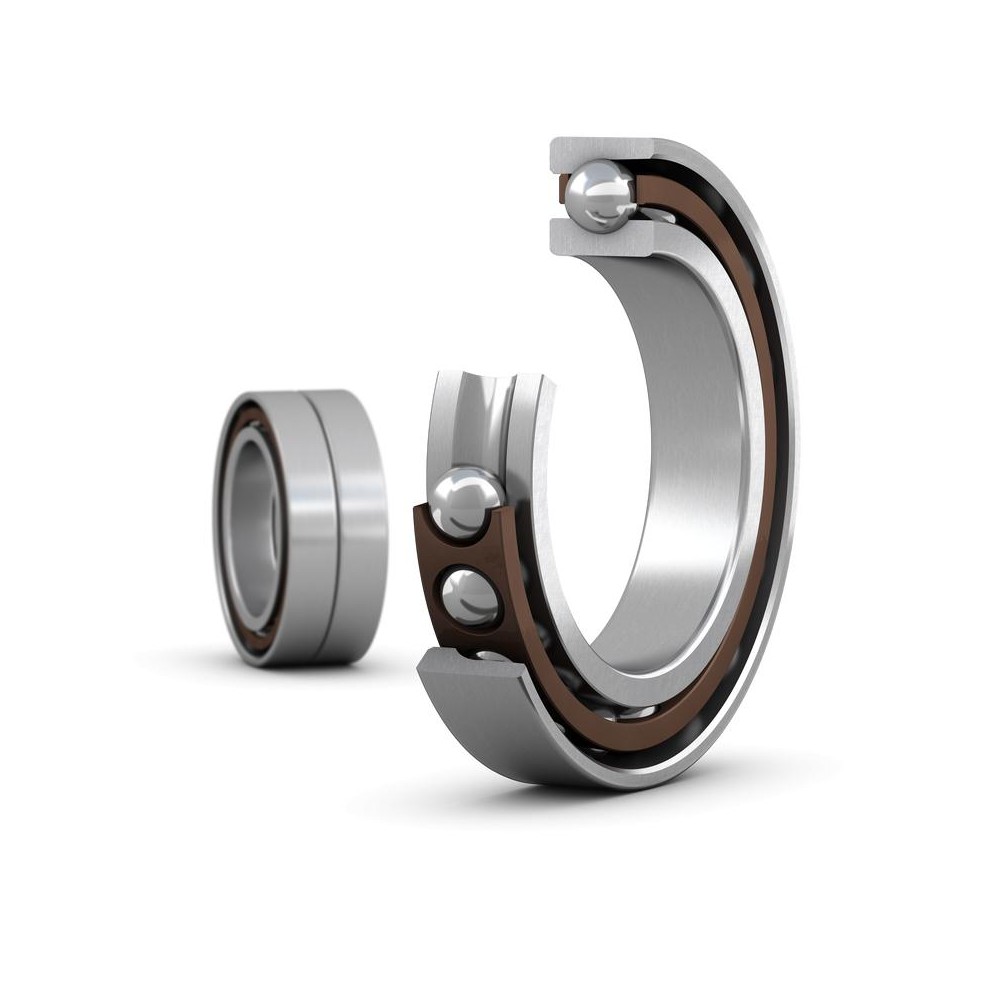

SKF 7003 CD/P4ADGA Super-precision angular contact ball bearings

SKF 7003 CD/P4ADGA Super-precision angular contact ball bearings

Product Code: 7003 CD/P4ADGA
Part/No: Eshop006903
Brand: SKF
These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.
Very high running accuracy
Very high load carrying capacity
€828.67
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 17 mm
Outside diameter 35 mm
Width 20 mm
Performance
Basic dynamic load rating 11.1 kN
Basic static load rating 6.55 kN
Properties
Contact angle 15 °
Note Contact SKF for the attainable speeds
Sealing Without
Lubricant None
Number of rows 2
Tolerance class P4A
Coating Without
Material bearing Bearing steel
Design Highcapacity D
Logistics
Pack gross weight 0.083 kg
eClass name Spindle bearing
EAN 7316576625398
Product net weight 0.075 kg
