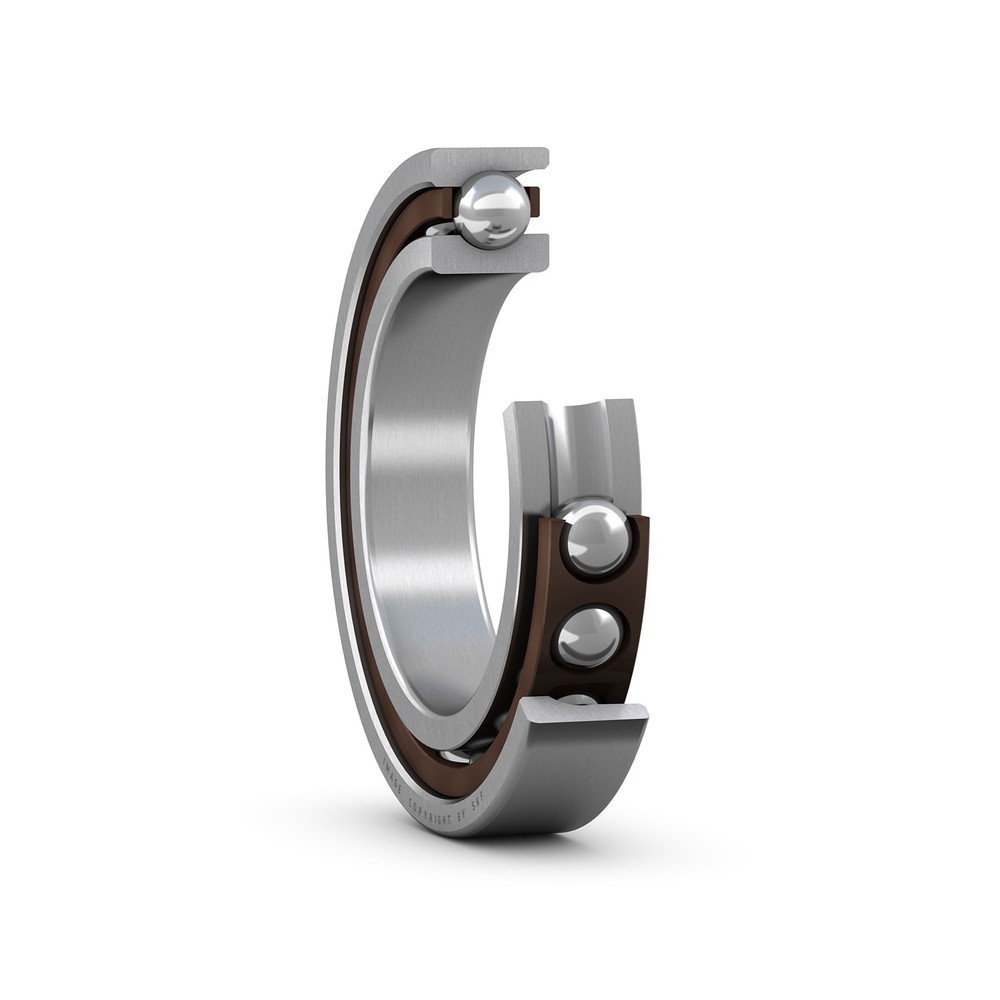

SKF 7005 CD/P4AH Super-precision angular contact ball bearings

SKF 7005 CD/P4AH Super-precision angular contact ball bearings

Product Code: 7005 CD/P4AH
Part/No: Eshop006985
Brand: SKF
These super-precision, high-capacity, single row angular contact ball bearings, with 15° contact angle, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. They have two lubrication holes in their outer rings.
Suitable for direct oil-air lubrication
Very high running accuracy
Very high load carrying capacity
Relatively high speed and stiffness
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 25 mm
Outside diameter 47 mm
Width 12 mm
Contact angle 15 °
Performance
Basic dynamic load rating 9.56 kN
Basic static load rating 5.2 kN
Properties
Design High-capacity D
Sealing Without
Lubricant None
Number of rows 1
Coating Without
Material bearing Bearing steel
Tolerance class P4A
Logistics
EAN code 07316579773973
Product net weight 0.077 kg
eClass name Spindle bearing
