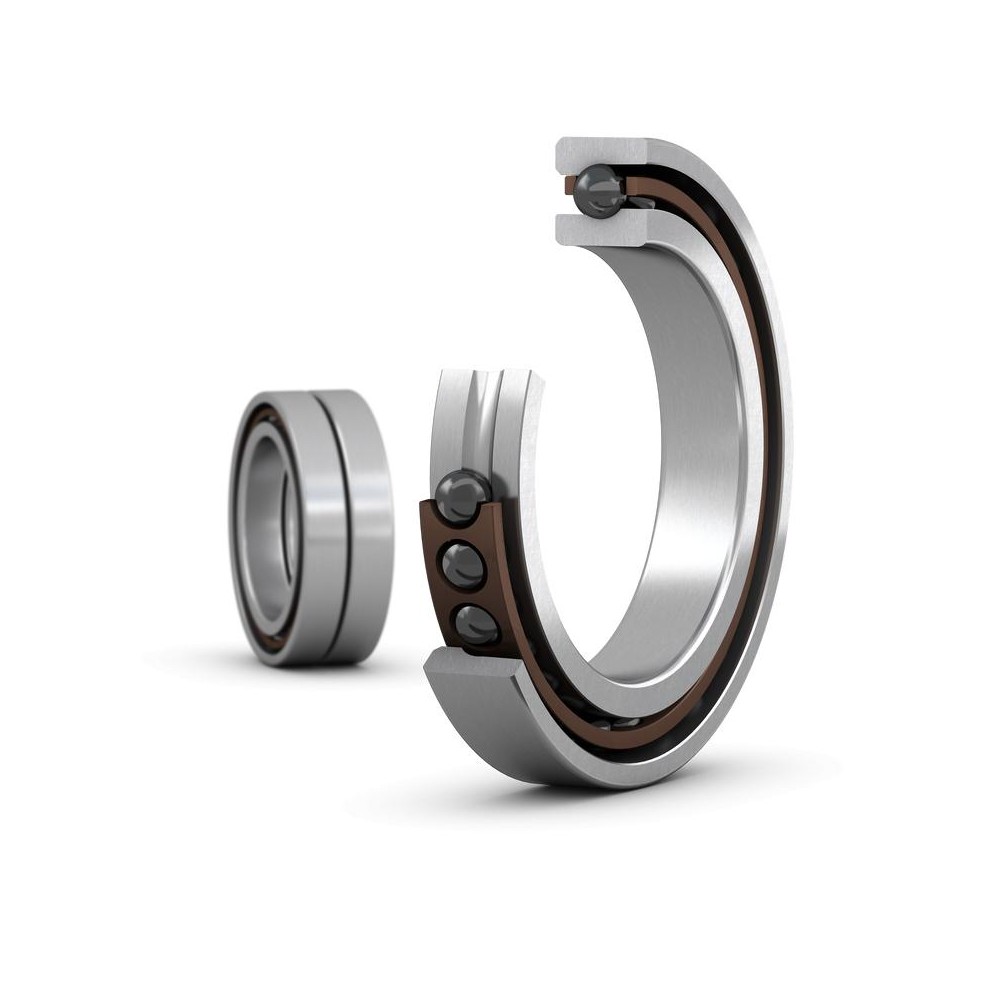

SKF 7013 ACE/HCPA9AH1DT Super-precision angular contact ball bearings

SKF 7013 ACE/HCPA9AH1DT Super-precision angular contact ball bearings

Product Code: 7013 ACE/HCPA9AH1DT
Part/No: Eshop007371
Brand: SKF
These matched sets of two super-precision, high-speed, E design, single row angular contact ball bearings are available in a variety of arrangements. Compared to the equivalent SKF B design high-speed bearings, these have a slightly higher speed capability and can accommodate heavier loads.
Very high running accuracy
Accommodate very high speeds
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 65 mm
Outside diameter 100 mm
Width 36 mm
Performance
Basic dynamic load rating 31.2 kN
Basic static load rating 29 kN
Properties
Contact angle 25 °
Note Contact SKF for the attainable speeds
Sealing Without
Lubricant None
Number of rows 2
Tolerance class PA9A
Coating Without
Material bearing Hybrid
Design Highspeed E
Logistics
Pack gross weight 0.892 kg
eClass name Angular contact ball bearing
EAN 7316575993191
Product net weight 0.77 kg
