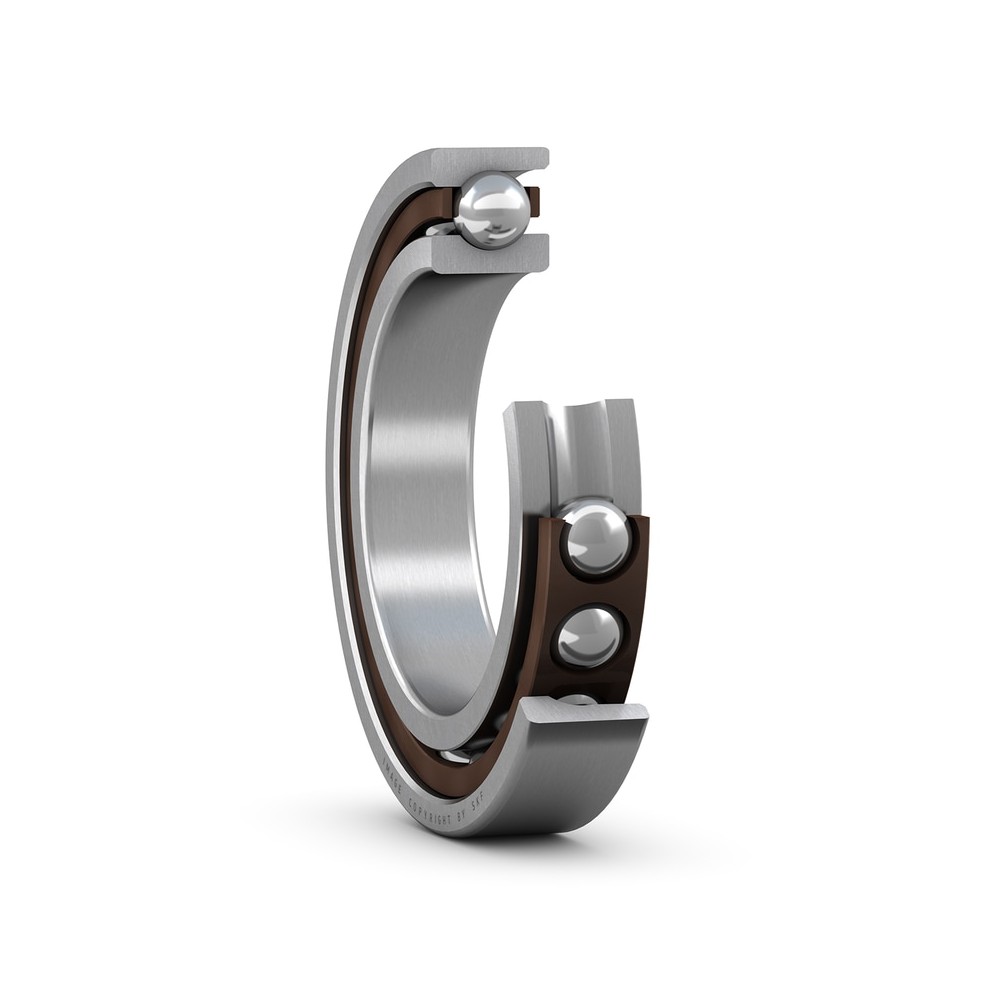

SKF 71909 CD/P4A Super-precision angular contact ball bearings

SKF 71909 CD/P4A Super-precision angular contact ball bearings

Product Code: 71909 CD/P4A
Part/No: 009395
Brand: SKF
These super-precision, high-capacity, single row angular contact ball bearings, with 15° contact angle, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures.
Very high running accuracy
Very high load carrying capacity
Relatively high speed and stiffness
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Bore diameter 45 mm
Outside diameter 68 mm
Width 12 mm
Performance
Basic dynamic load rating 13 kN
Basic static load rating 9.5 kN
Properties
Contact angle 15 °
Attainable speed for grease lubrication 19,000 r/min
Attainable speed for oilair lubrication 32,000 r/min
Sealing Without
Lubricant None
Number of rows 1
Tolerance class P4A
Coating Without
Material bearing Bearing steel
Design Highcapacity D
Logistics
Pack gross weight 0.146 kg
eClass name Spindle bearing
EAN 7316570171389
Product net weight 0.131 kg
