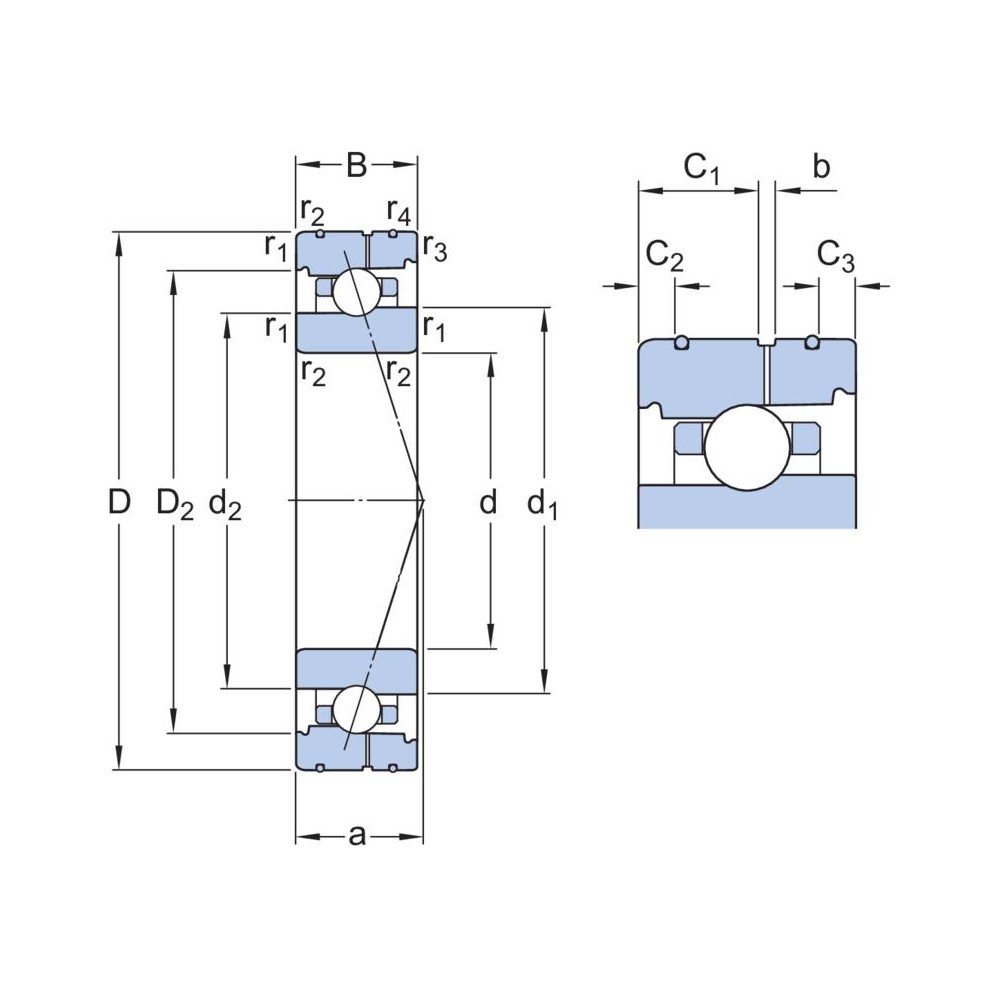

SKF 71914 ACBGA/HCP4AL Super-precision angular contact ball bearings
Product Code:
71914 ACBGA/HCP4AL
Part/No:
Eshop008444
Brand:
SKF
These super-precision, high-speed, single row angular contact ball bearings with 15° or 25° contact angle accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. Compared to the equivalent SKF E design high-speed bearings, these are suited for lighter loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices. They have two lubrication holes, an annular groove, and two annular O-ring grooves in their outer rings.
Suitable for direct oil-air lubrication
Very high running accuracy
Accommodate high speeds
Reduced stresses on rolling contact surfaces
Universally matchable
Very high running accuracy
Accommodate high speeds
Reduced stresses on rolling contact surfaces
Universally matchable
