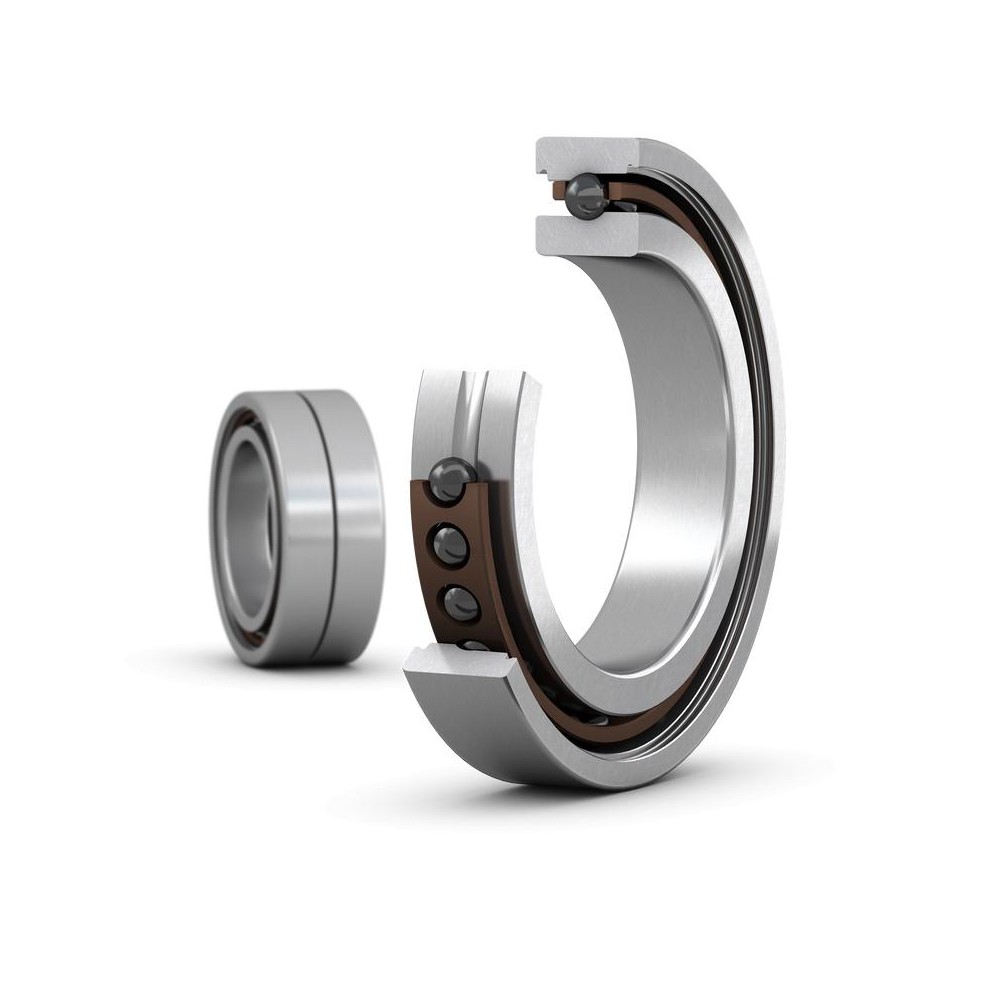

SKF 71920 ACB/HCP4ADGA Super-precision angular contact ball bearings

SKF 71920 ACB/HCP4ADGA Super-precision angular contact ball bearings

Product Code: 71920 ACB/HCP4ADGA
Part/No: Eshop008582
Brand: SKF
These matched sets of two super-precision, high-speed B design, single row angular contact ball bearings are available in a variety of arrangements. Compared to the equivalent SKF E design high-speed bearings, these are suited for lighter loads.
Very high running accuracy
Accommodate high speeds
Reduced stresses on rolling contact surfaces
€2,002.40
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 100 mm
Outside diameter 140 mm
Width 40 mm
Contact angle 25 °
Performance
Basic dynamic load rating 33.2 kN
Basic static load rating 42.5 kN
Note Refer to catalogue data
Properties
Design High-speed B
Sealing Without
Lubricant None
Number of rows 2
Coating Without
Material bearing Hybrid
Tolerance class P4A
Logistics
EAN code 07316575003760
Product net weight 1.33 kg
eClass name Angular contact ball bearing
