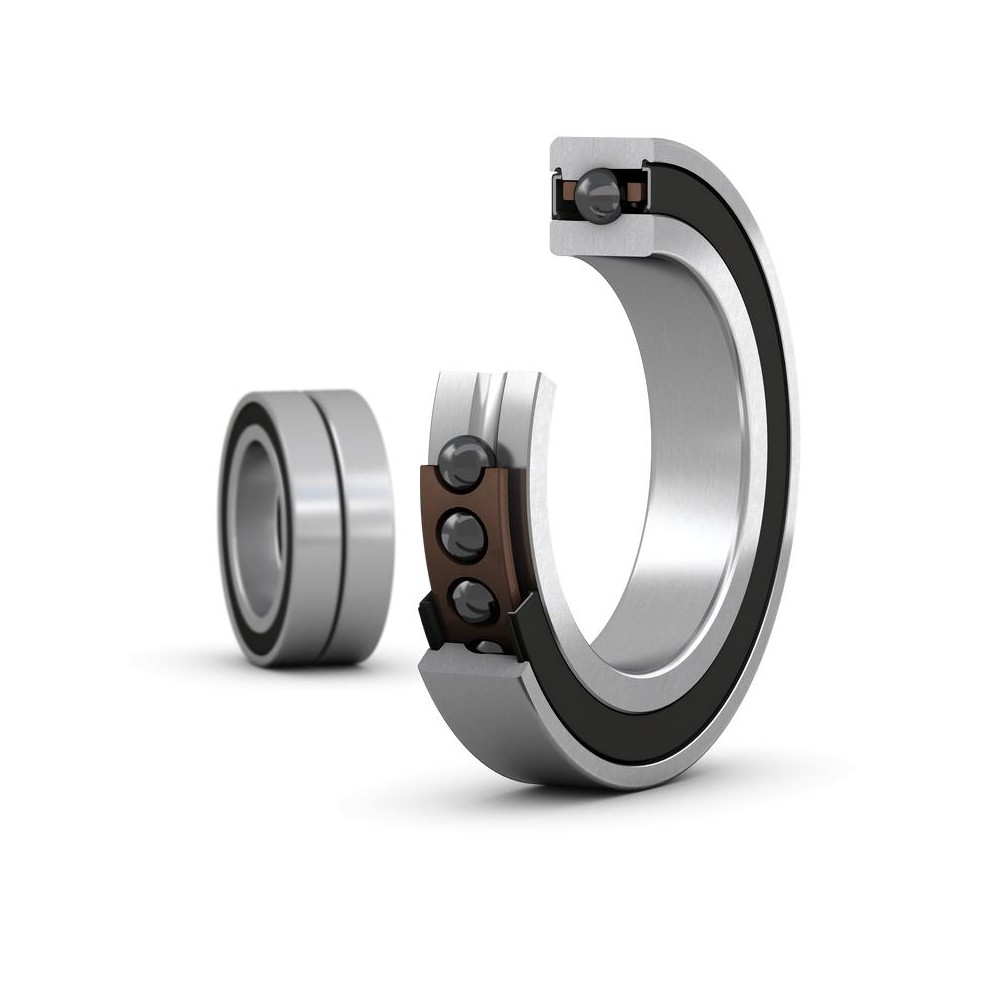

SKF S7005 FE/HCP4ADBB Super-precision angular contact ball bearings

SKF S7005 FE/HCP4ADBB Super-precision angular contact ball bearings

Product Code: S7005 FE/HCP4ADBB
Part/No: Eshop018668
Brand: SKF
These matched sets of two super-precision, high-speed, E design, single row angular contact ball bearings with seals are available in a variety of arrangements. Compared to the equivalent SKF B design high-speed bearings, these have a slightly higher speed capability and can accommodate heavier loads.
Very high running accuracy
Accommodate very high speeds
Non-contact seals
Integral sealing prolongs bearing service life
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 25 mm
Outside diameter 47 mm
Width 24 mm
Performance
Basic dynamic load rating 13.3 kN
Basic static load rating 8.15 kN
Properties
Contact angle 18 °
Note Contact SKF for the attainable speeds
Sealing type Noncontact
Sealing Seal on both sides
Lubricant Grease
Number of rows 2
Tolerance class P4A
Coating Without
Material bearing Hybrid
Design Highspeed E
Logistics
Pack gross weight 0.147 kg
eClass name Angular contact ball bearing
EAN 7316575982928
Product net weight 0.152 kg
