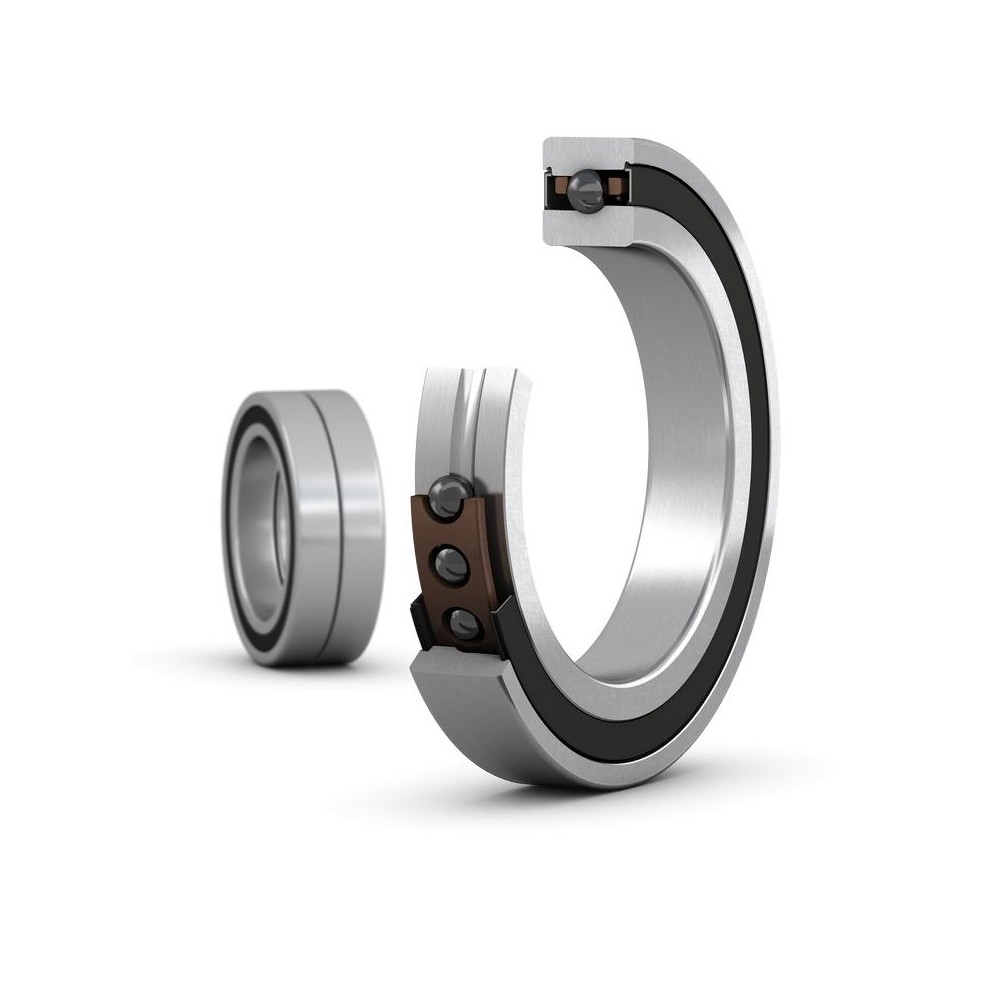

SKF S71910 CB/HCP4ADBA Super-precision angular contact ball bearings

SKF S71910 CB/HCP4ADBA Super-precision angular contact ball bearings

Product Code: S71910 CB/HCP4ADBA
Part/No: Eshop019163
Brand: SKF
These matched sets of two super-precision, high-speed B design, single row angular contact ball bearings with seals are available in a variety of arrangements. Compared to the equivalent SKF E design high-speed bearings, these are suited for lighter loads.
Very high running accuracy
Accommodate high speeds
Reduced stresses on rolling contact surfaces
Non-contact seals
Integral sealing prolongs bearing service life
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 50 mm
Outside diameter 72 mm
Width 24 mm
Performance
Basic dynamic load rating 12.5 kN
Basic static load rating 12.5 kN
Properties
Contact angle 15 °
Note Contact SKF for the attainable speeds
Sealing type Noncontact
Sealing Seal on both sides
Lubricant Grease
Number of rows 2
Tolerance class P4A
Coating Without
Material bearing Hybrid
Design Highspeed B
Logistics
Pack gross weight 0.3 kg
eClass name Angular contact ball bearing
EAN 7316574830381
Product net weight 0.24 kg
