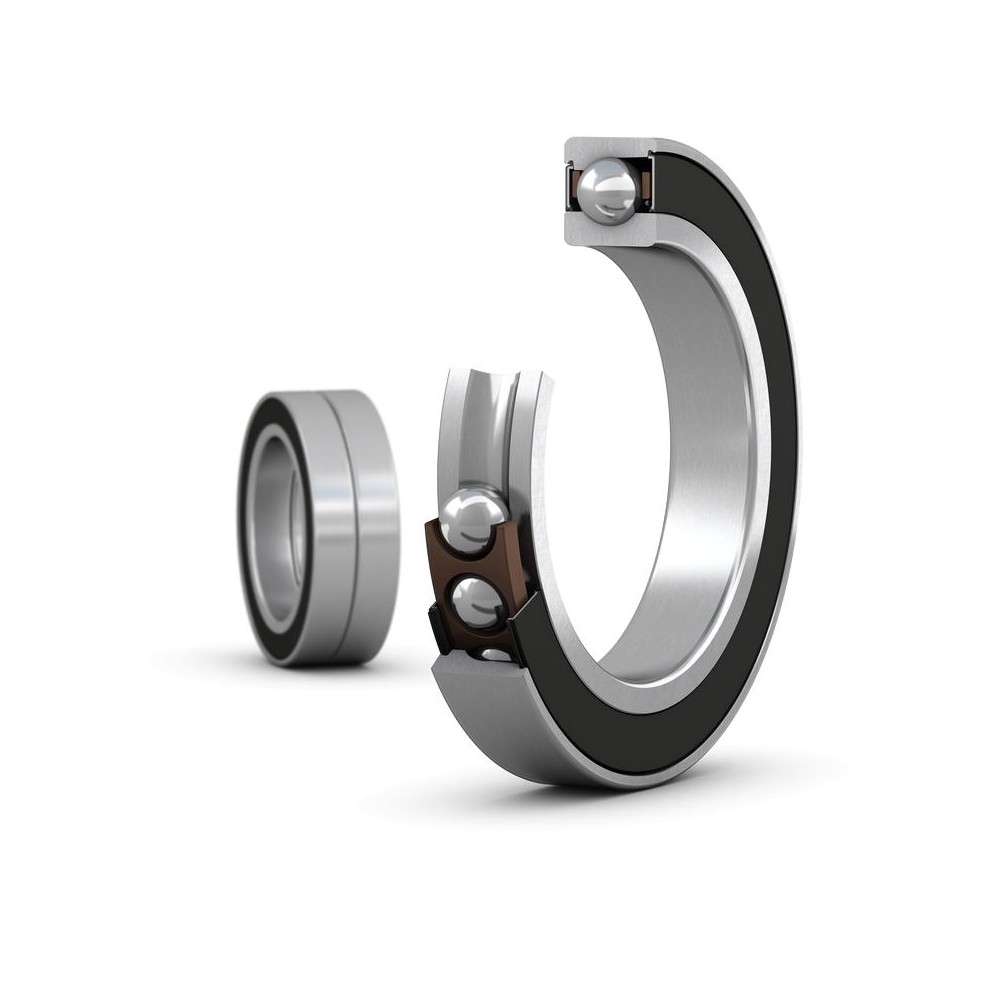

SKF S71916 CD/P4ADGA Super-precision angular contact ball bearings

SKF S71916 CD/P4ADGA Super-precision angular contact ball bearings

Product Code: S71916 CD/P4ADGA
Part/No: Eshop019286
Brand: SKF
These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings with seals are available in a variety of arrangements. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures.
Very high running accuracy
Very high load carrying capacity
Non-contact seals
Integral sealing prolongs bearing service life
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 80 mm
Outside diameter 110 mm
Width 32 mm
Performance
Basic dynamic load rating 59.2 kN
Basic static load rating 78 kN
Properties
Contact angle 15 °
Note Contact SKF for the attainable speeds
Sealing type Noncontact
Sealing Seal on both sides
Lubricant Grease
Number of rows 2
Tolerance class P4A
Coating Without
Material bearing Bearing steel
Design Highcapacity D
Logistics
Pack gross weight 0.871 kg
eClass name Spindle bearing
EAN 7316571884684
Product net weight 0.636 kg
