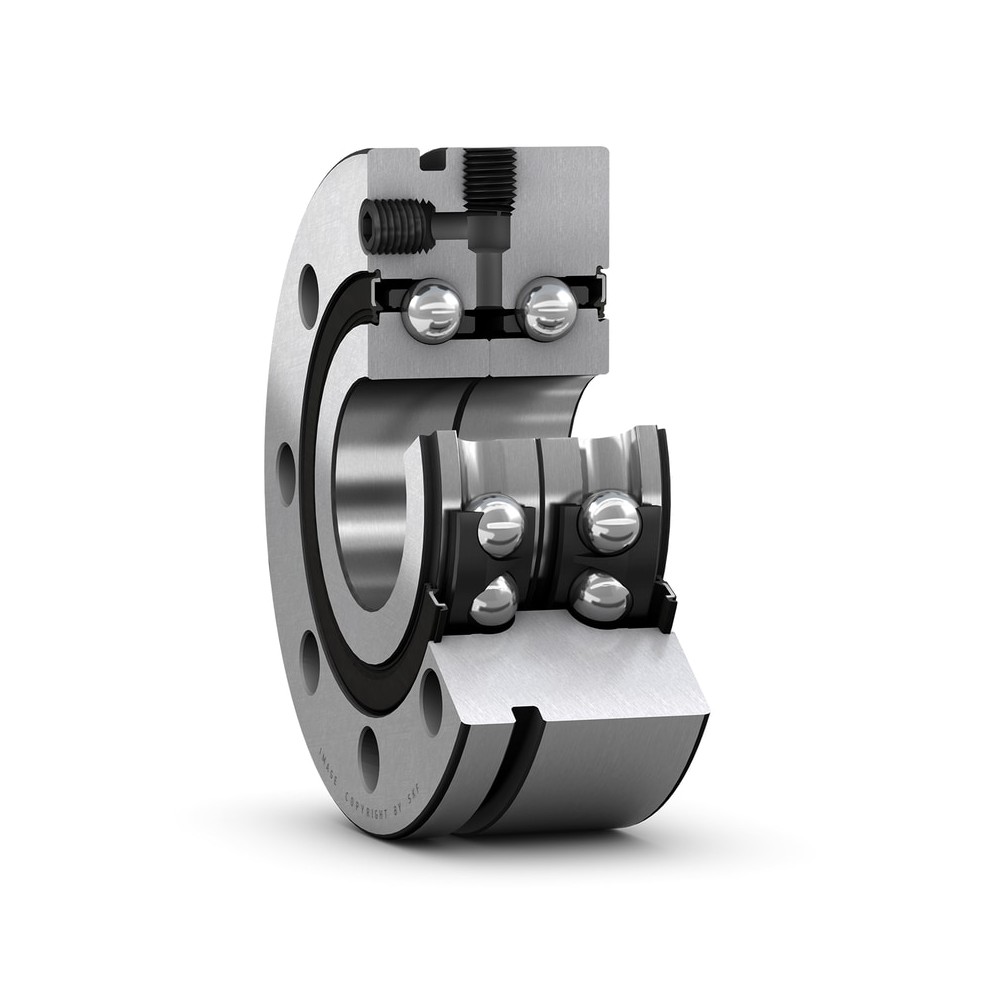

SKF BEAM 017062 C-2RSH Super-precision angular contact thrust ball bearings

SKF BEAM 017062 C-2RSH Super-precision angular contact thrust ball bearings

Product Code: BEAM 017062 C-2RSH
Part/No: Eshop010051
Brand: SKF
These double direction angular contact thrust ball bearings are well suited for screw drive applications, but are also beneficial in other applications, where reliable radial and axial support is required, together with extremely precise axial guidance of the shaft.The BEAM series bearings have an outer ring that is much thicker then with the BEAS series, and they are equipped with through holes for attachment bolts, which makes the mounting process simple.
Accommodate radial loads, and axial loads in both directions
Greased and sealed as standard
Ready to mount
Easy to relubricate
€1,213.09
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 17 mm
Outside diameter 62 mm
Performance
Basic dynamic load rating 21.2 kN
Basic static load rating 37.5 kN
Properties
Height 25 mm
Contact angle 60 °
Attainable speed for grease lubrication 4,300 r/min
Sealing type Contact
Sealing Seal on both sides
Cage Nonmetallic
Locating feature bearing outer ring Bolt holes
Lubricant Grease
Number of rows 2
Relubrication feature With
Logistics
Pack gross weight 0.457 kg
eClass name Angular contact ball bearing
EAN 7316577857750
Product net weight 0.355 kg
