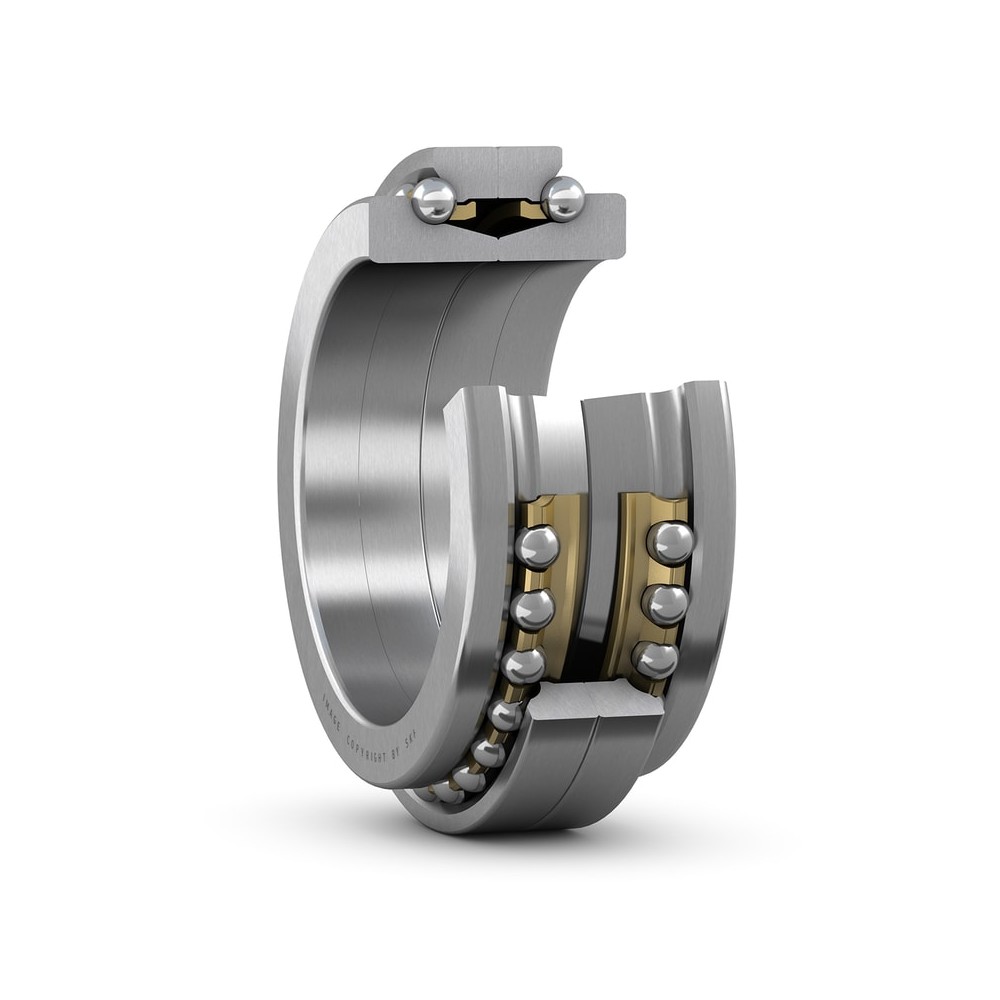

SKF BTW 200 CM/SP Super-precision angular contact thrust ball bearings

SKF BTW 200 CM/SP Super-precision angular contact thrust ball bearings

Product Code: BTW 200 CM/SP
Part/No: Eshop010428
Brand: SKF
Super precision double direction angular contact ball bearings are designed to locate spindle shafts axially in both directions. They can accommodate axial forces in both directions and are available in two main designs: BTW (the basic series bearings, which accommodate greater axial loads) and BTM (the high-speed series bearings, which accommodate higher speeds).
Very high running accuracy
High axial load carrying capacity in both directions
High axial rigidity
Two main designs to accommodate greater load carrying capacity or rigidity and speed
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 200 mm
Outside diameter 310 mm
Performance
Basic dynamic load rating 238 kN
Basic static load rating 865 kN
Properties
Height 132 mm
Contact angle 60 °
Attainable speed for grease lubrication 1,900 r/min
Attainable speed for oilair lubrication 2,400 r/min
Sealing Without
Cage Machined metal
Locating feature bearing outer ring None
Lubricant None
Number of rows 2
Relubrication feature Without
Tolerance class SP
Coating Without
Material bearing Bearing steel
Design Basic (BTW series)
Logistics
Pack gross weight 35.8 kg
eClass name Angular contact thrust ball bearing
EAN 7316574838349
Product net weight 23.103 kg
