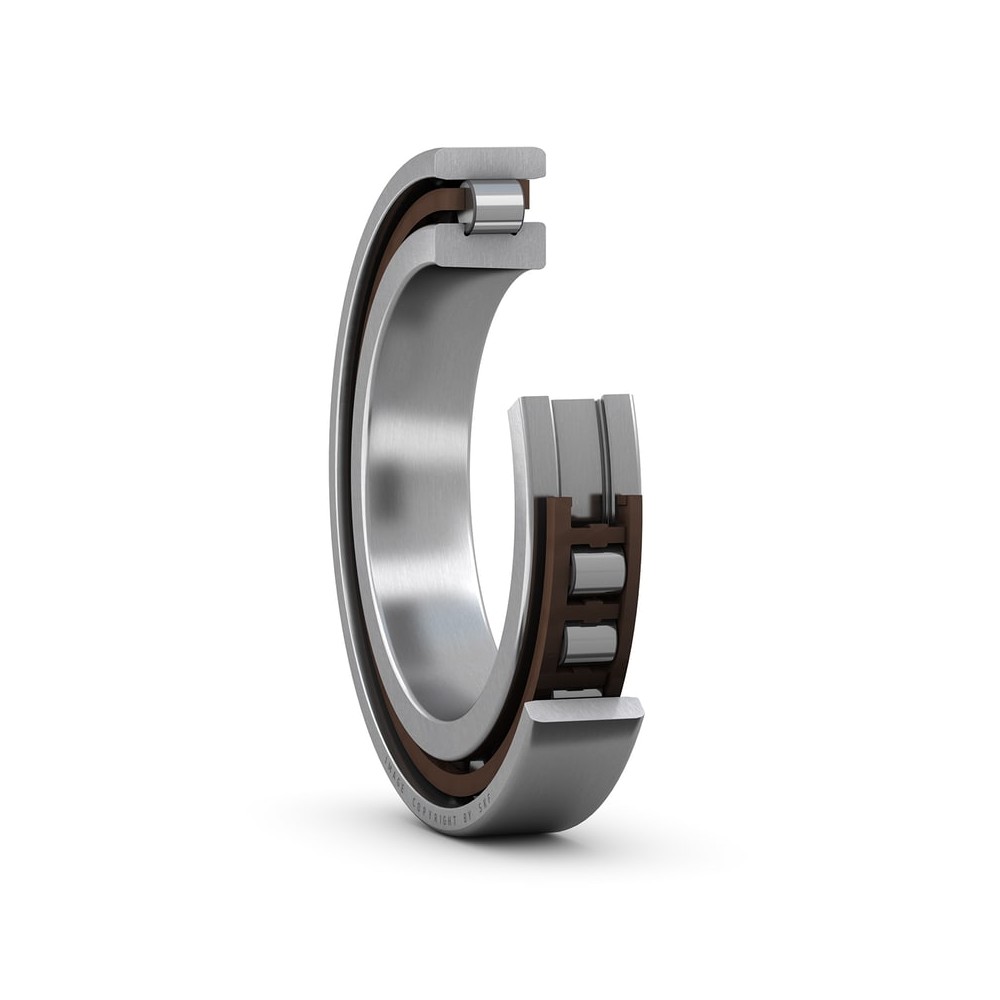

SKF N 1010 KTNHA/SP Super-precision cylindrical roller bearings

SKF N 1010 KTNHA/SP Super-precision cylindrical roller bearings

Product Code: N 1010 KTNHA/SP
Part/No: Eshop013223
Brand: SKF
These super-precision single row cylindrical roller bearings have a tapered bore and can accommodate axial displacement of the shaft relative to the housing in both directions. They contain fewer rollers than basic design bearings and can accommodate high speeds.
Accommodate high speeds
Low friction
Separable
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request

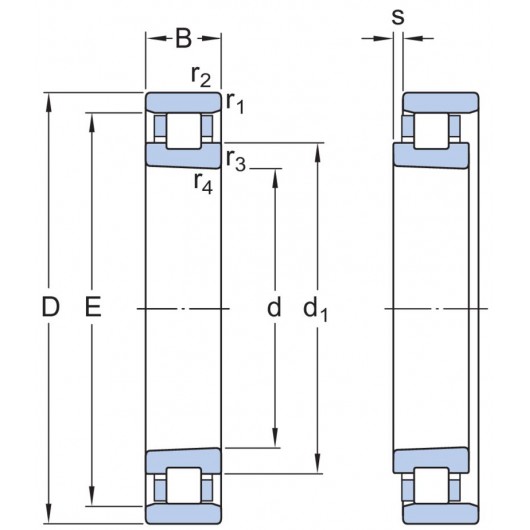

Dimensions
Bore diameter 50 mm
Outside diameter 80 mm
Width 16 mm
Performance
Basic dynamic load rating 29.7 kN
Basic static load rating 34.5 kN
Properties
Attainable speed for grease lubrication 19,000 r/min
Attainable speed for oilair lubrication 26,000 r/min
Sealing Without
Bore type Tapered 1:12
Cage Nonmetallic
Lubricant None
Number of rows 1
Radial internal clearance C1
Relubrication feature Without
Tolerance class Class SP (SP)
Bearing part Complete bearing
Number of flanges inner ring 2
Coating Without
Material bearing Bearing steel
Design Highspeed
Logistics
Pack gross weight 0.302 kg
eClass name Cylindrical roller bearing
EAN 7316571581163
Product net weight 0.253 kg
