SKF N 1016 PHA/SP Super-precision cylindrical roller bearings

SKF N 1016 PHA/SP Super-precision cylindrical roller bearings

Product Code: N 1016 PHA/SP
Part/No: Eshop013258
Brand: SKF
These basic design, super-precision single row cylindrical roller bearings have a cylindrical bore and can accommodate axial displacement of the shaft relative to the housing in both directions.They are well suited for most precision applications.
Low friction
Separable
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request

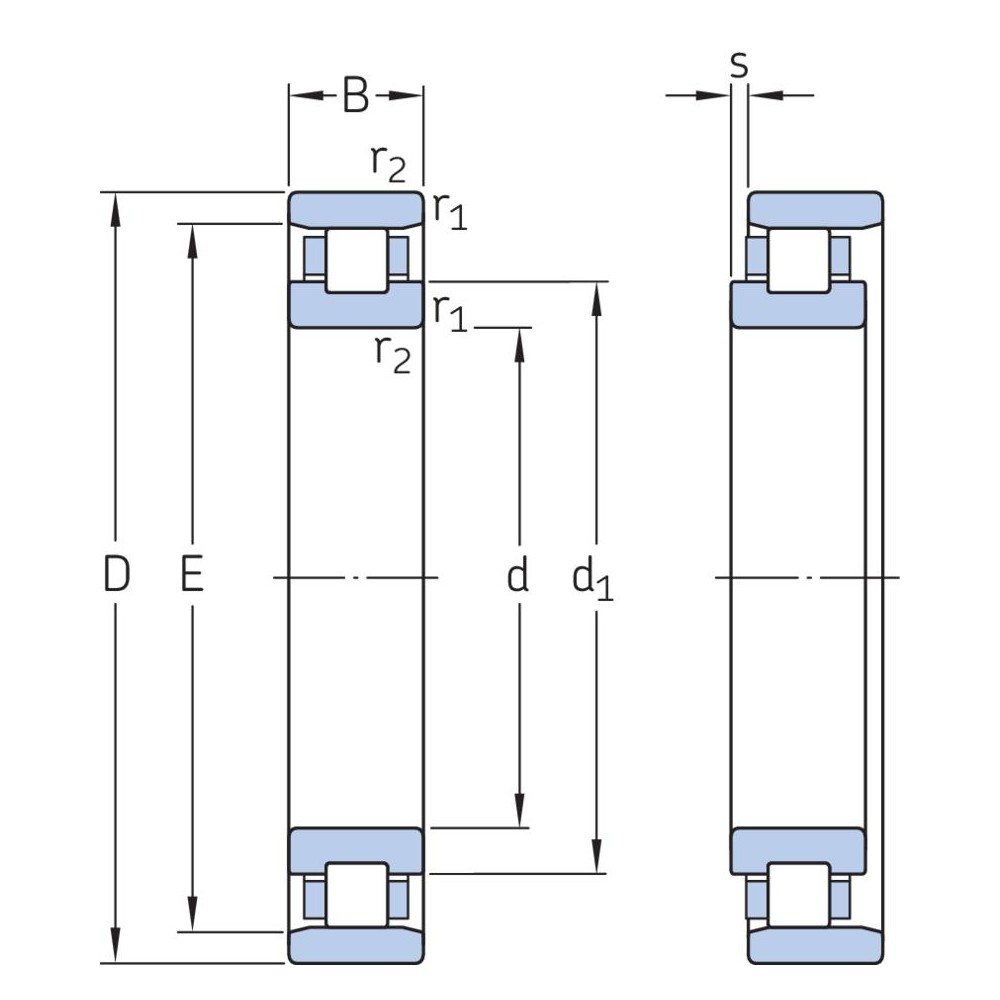

Dimensions
Bore diameter 80 mm
Outside diameter 125 mm
Width 22 mm
Performance
Basic dynamic load rating 66 kN
Basic static load rating 86.5 kN
Properties
Attainable speed for grease lubrication 16,000 r/min
Attainable speed for oilair lubrication 19,000 r/min
Sealing Without
Bore type Cylindrical
Cage Machined metal
Lubricant None
Number of rows 1
Radial internal clearance C1
Relubrication feature Without
Tolerance class Class SP (SP)
Bearing part Complete bearing
Number of flanges inner ring 2
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 1.028 kg
eClass name Cylindrical roller bearing
EAN 7316576946622
Product net weight 0.88 kg
