SKF 305805 C-2Z Tapered roller bearings

SKF 305805 C-2Z Tapered roller bearings

Product Code: 305805 C-2Z
Part/No: 009006
Brand: SKF

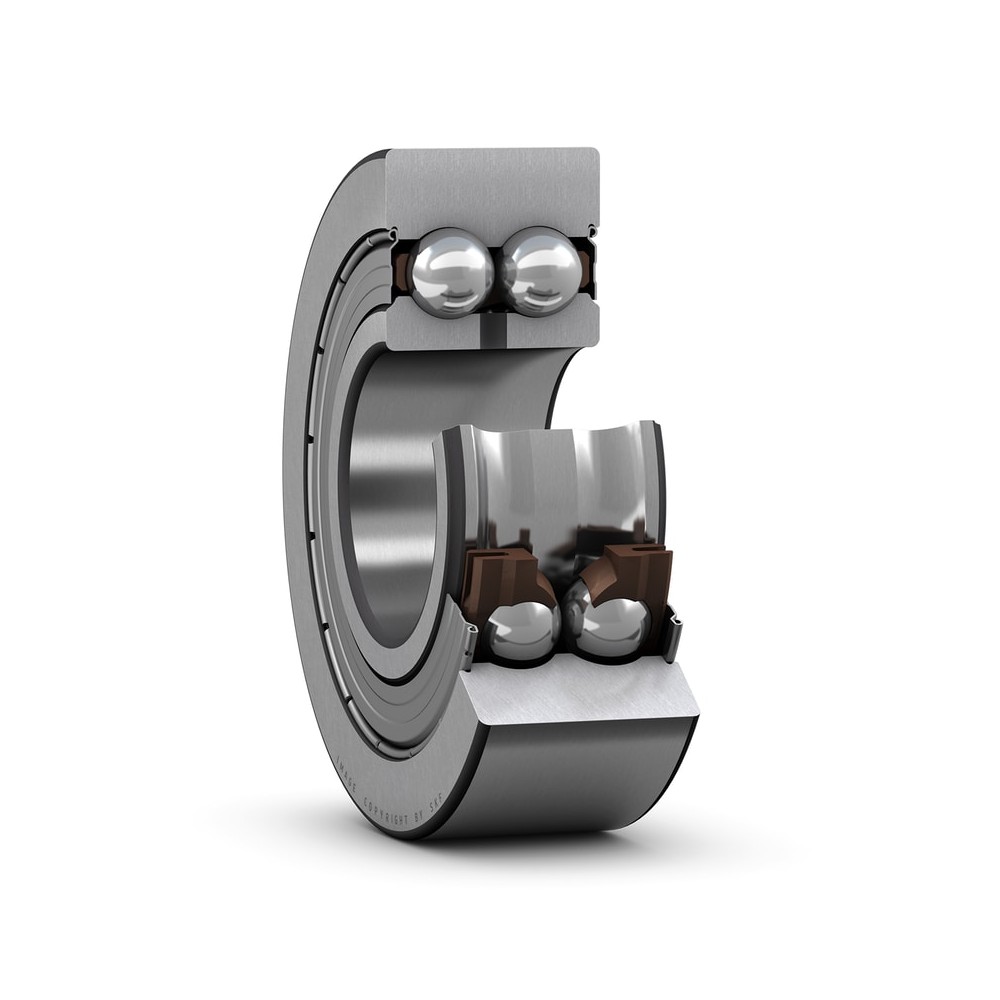

These cam rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on double row angular contact ball bearings. They have a thick-walled outer ring with a crowned running surface prevents edge stresses under skewing. They are supplied greased, sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.
High radial load carrying capacity and relatively high speed capability
Accommodate tilting moments
Long service life
Ready to mount
Integral sealing, for increased reliability, with relubrication feature
€182.13
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 25 mm
Width 20.6 mm
Performance
Basic dynamic load rating 19.9 kN
Basic static load rating 12.2 kN
Limiting speed 8,000 r/min
Properties
Functional outside diameter 62 mm
Sealing type Noncontact
Sealing Shield on both sides
Cage With
Lubricant Grease
Number of rows 2
Radial internal clearance Not applicable
Relubrication feature With
Tolerance class Normal (except crowned running surface)
Bearing part Complete track roller
Outer ring profile Crowned
Rolling elements Balls
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 327.5 g
eClass name Angular contact ball bearing
EAN 7316577742735
Product net weight 0.321 kg
