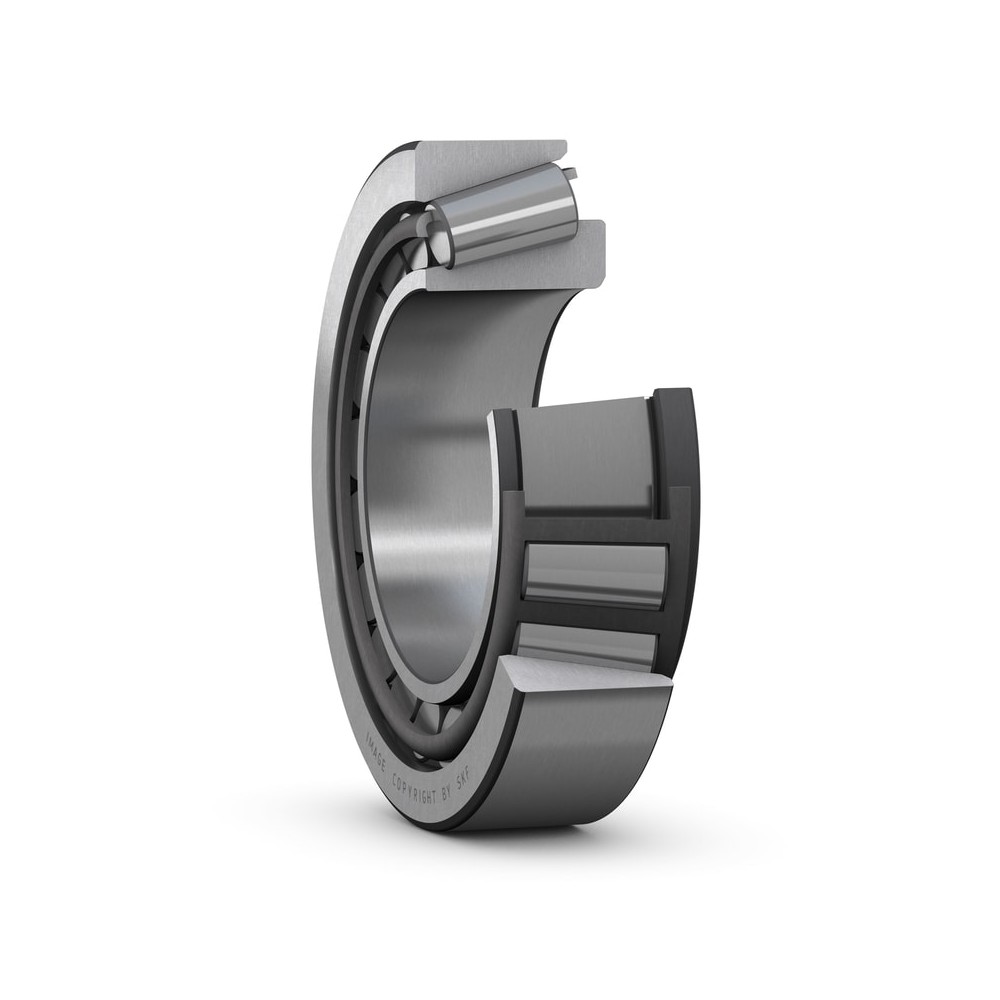

SKF 32010 X/P5 Tapered roller bearings

SKF 32010 X/P5 Tapered roller bearings

Product Code: 32010 X/P5
Part/No: 038476
Brand: SKF
Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Bore diameter 50 mm
Outside diameter 80 mm
Width inner ring 20 mm
Width outer ring 15.5 mm
Performance
Basic dynamic load rating 75.1 kN
Basic static load rating 88 kN
Limiting speed 8,000 r/min
Reference speed 6,300 r/min
Properties
Contact angle 15.750000000039 °
Width total 20 mm
SKF performance class SKF Explorer
Sealing Without
Bore type Cylindrical
Cage Sheet metal
Locating feature bearing outer ring None
Lubricant None
Number of rows 1
Relubrication feature Without
Arrangement of contact angle double row bearing Not applicable
Bearing part Complete bearing
Coating Without
Logistics
Pack gross weight 0.397 kg
eClass name Tapered roller bearing
EAN 7316577948489
Product net weight 0.38 kg
