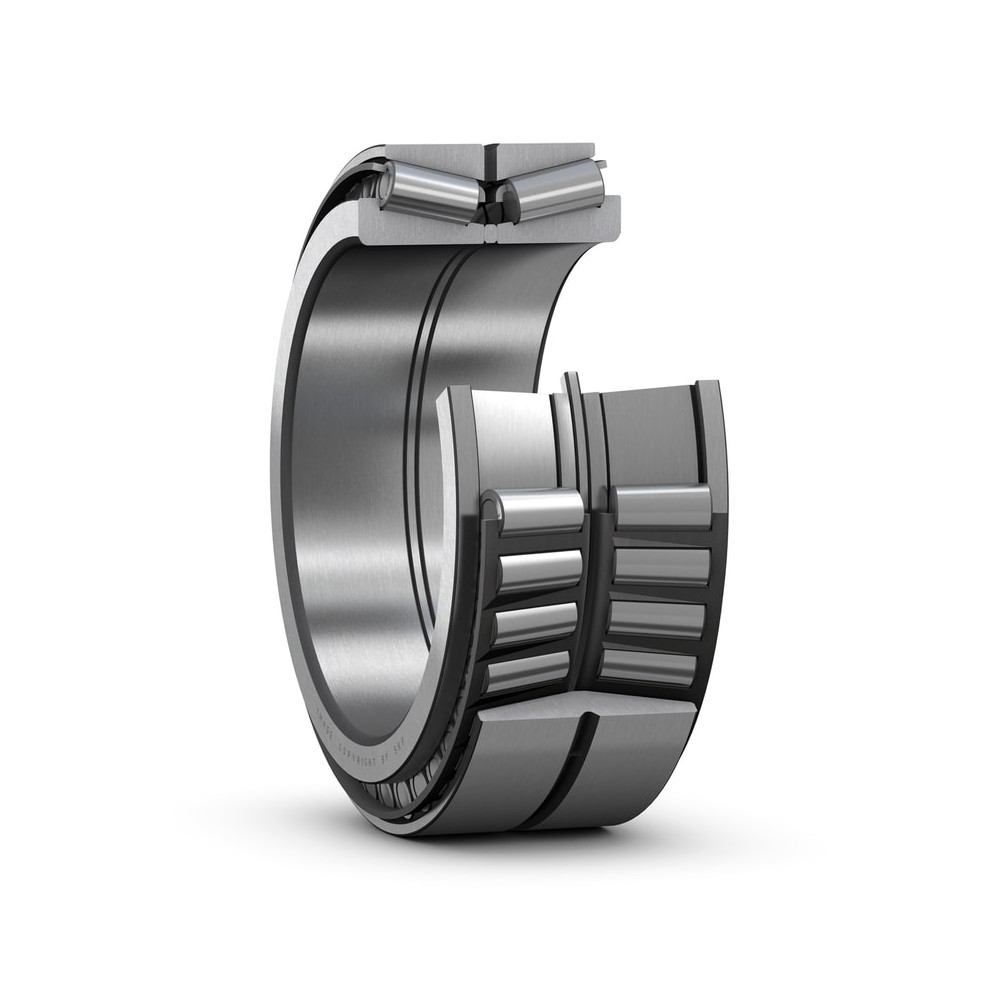

SKF 442213 Tapered roller bearings

SKF 442213 Tapered roller bearings

Product Code: 442213
Part/No: Eshop000843
Brand: SKF
SKF double row tapered roller bearings are ready-to-mount units, manufactured with a predetermined axial clearance or preload. TDO design bearings have a double row outer ring and two single inner rings that usually have an intermediate ring between them. Their roller sets are arranged back-to-back (O-arrangement), which enables them to accommodate tilting moments. Design variants include features such as a helical groove in the bore or lubrication grooves in the side faces of the bearing rings.
High radial load carrying capacity
Accommodate axial loads in both directions
Relatively high stiffness
Accommodate tilting moments
Many variants, including a helical groove in the bore or lubrication grooves in the side faces of the bearing rings
Ready to mount
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 180 mm
Outside diameter 270 mm
Width inner ring 109.538 mm
Width outer ring 84.21 mm
Performance
Basic dynamic load rating 682.00000034927 kN
Basic static load rating 1,600.0000008194 kN
Properties
Contact angle 17.65 °
Width total 96.874 mm
Sealing Without
Bore type Cylindrical
Cage Sheet metal
Locating feature bearing outer ring None
Lubricant None
Number of rows 2
Relubrication feature With
Arrangement of contact angle double row bearing Backtoback (O)
Bearing part Complete bearing
Coating Without
Logistics
Pack gross weight 22.428 kg
eClass name Tapered roller bearing
EAN 7316570045079
Product net weight 22.08 kg
