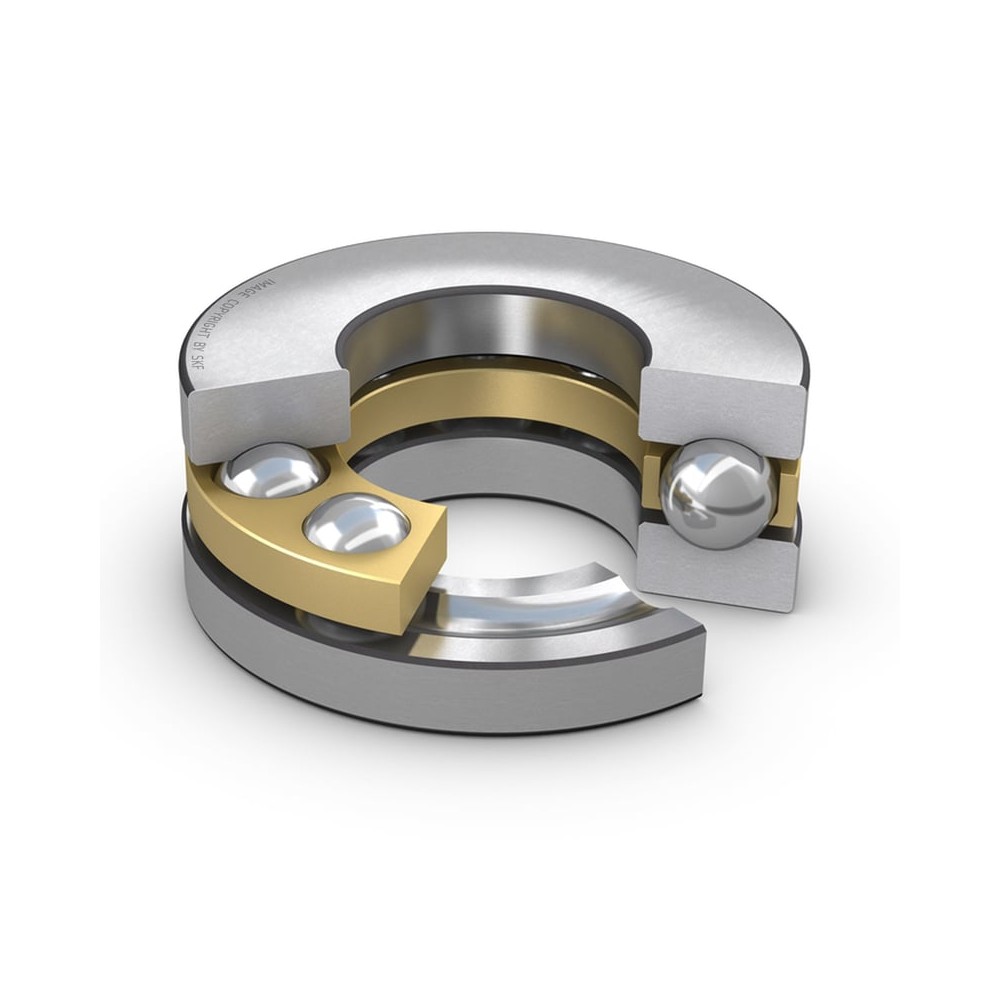

SKF 51234 M Thrust ball bearings

SKF 51234 M Thrust ball bearings

Product Code: 51234 M
Part/No: 001224
Brand: SKF
Single direction thrust Ball bearingscan accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.
Separable design facilitates mounting/dismounting and maintenance inspections
Interchangeable components
Ground bore of shaft washers enable interference fit
€2,930.29
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 170 mm
Outside diameter 240 mm
Performance
Basic dynamic load rating 281 kN
Basic static load rating 980 kN
Limiting speed 1,600 r/min
Reference speed 1,100 r/min
Properties
Height 55 mm
Housing washer type Flat
Cage Machined metal
Number of rows 1
Tolerance class Normal
Housing washer type 5 Flat
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 8013.7 g
eClass name Thrust ball bearing
EAN 7316577059666
Product net weight 7.85 kg
