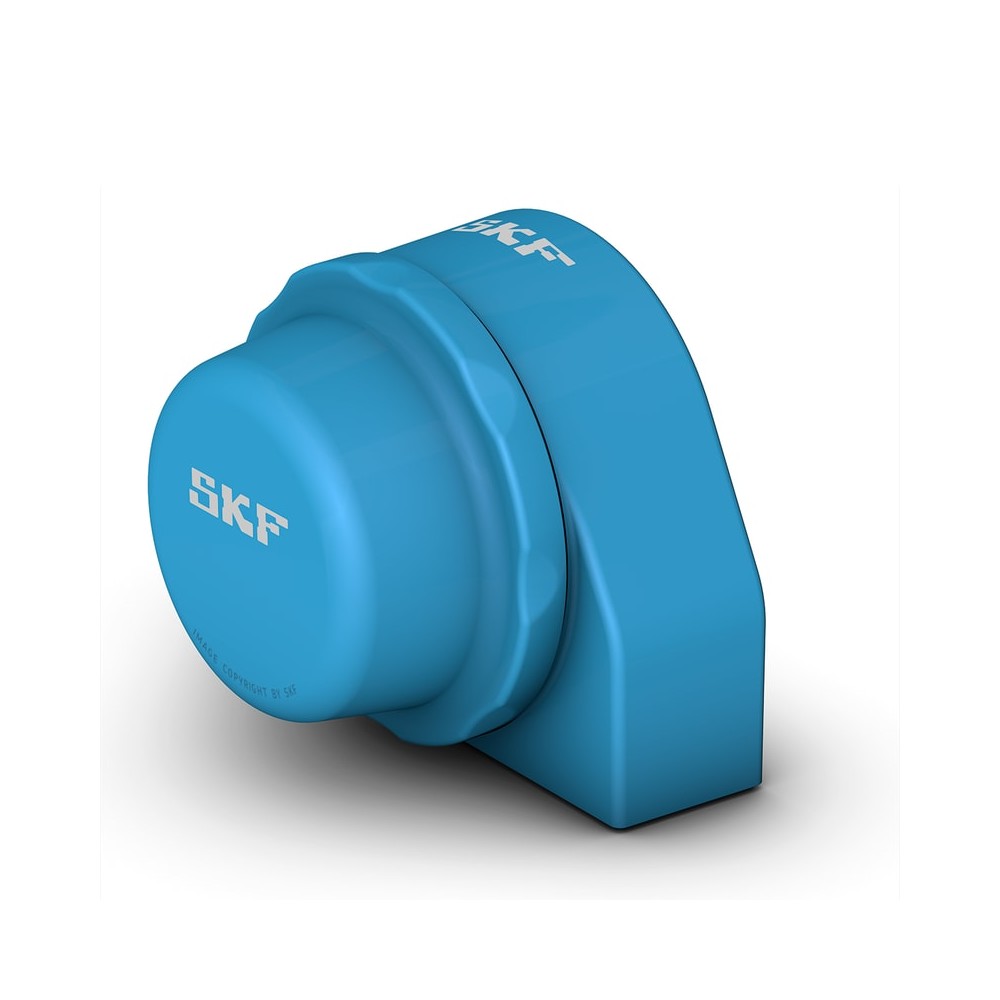

SKF P2BTC 100-CPSS-DFH Ball bearing units

SKF P2BTC 100-CPSS-DFH Ball bearing units

Product Code: P2BTC 100-CPSS-DFH
Part/No: Eshop016992
Brand: SKF
Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a composite housing. It has threads for attachment bolts and is suitable for applications with both constant and alternating directions of rotation. It has a narrow inner ring and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
Designed for a constant and alternating rotation
Excellent corrosion resistance
Lightweight
Recyclable
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 25.4 mm
Performance
Basic dynamic load rating 11.9 kN
Basic static load rating 7.8 kN
Limiting speed 700 r/min
Properties
Centre height pillow block 36.5 mm
Bearing width total 27.3 mm
Centre distance between bolt holes 51 mm
Housing overall width 27 mm
Housing type Pillow block
Sealing type Contact, gutter
Bore type Cylindrical
Lubricant Grease
Material housing Composite for the SKF Food Line
Fastening bolt hole type Threaded
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole Without
Grease fitting Without
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal on both sides and flinger on one side
Sealing unit End cover and back seal
Coating Without
Material bearing Stainless steel
Logistics
Pack gross weight 0.4 kg
eClass name Bearing with spherical outside surface
EAN 7316577858689
Product net weight 1.65 kg
