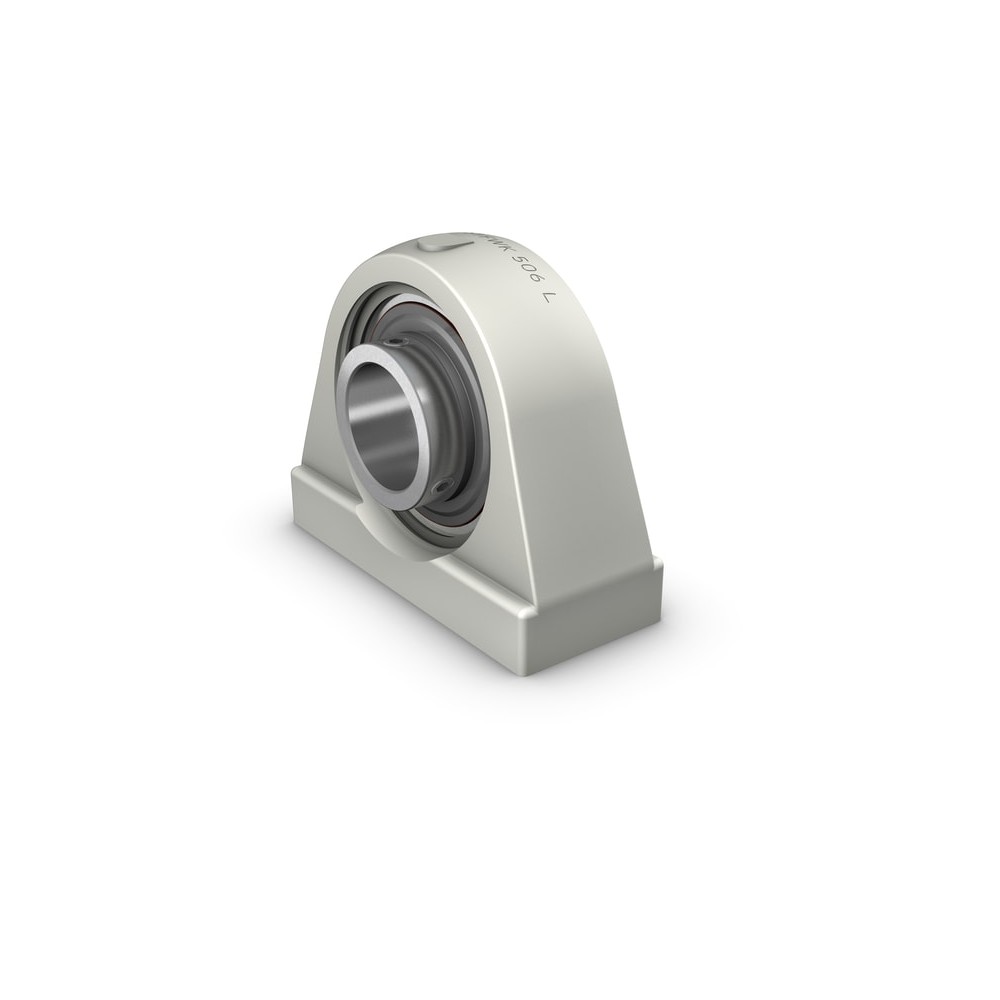

SKF SYFWK 30 LTHR Ball bearing units

SKF SYFWK 30 LTHR Ball bearing units

Product Code: SYFWK 30 LTHR
Part/No: Eshop020017
Brand: SKF
Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a composite housing. This variant has threads for attachment bolts and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
Designed for a constant and alternating rotation
Excellent corrosion resistance
Lightweight
Recyclable
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 30 mm
Performance
Basic dynamic load rating 16.3 kN
Basic static load rating 11.2 kN
Limiting speed 3,800 r/min
Properties
Centre height pillow block 42.9 mm
Bearing width total 38.1 mm
Centre distance between bolt holes 76.2 mm
Housing overall width 43 mm
Note Limiting speed with shaft tolerance h6
Housing type Pillow block
Sealing type Contact, multiple
Bore type Cylindrical
Lubricant Grease
Material housing Composite for the SKF Food Line
Fastening bolt hole type Threaded
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole Without
Grease fitting Without
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Optional end cover
Coating Without
Material bearing Stainless steel
Logistics
Pack gross weight 0.518 kg
eClass name Bearing with spherical outside surface
EAN 7316574958849
Product net weight 0.338 kg
