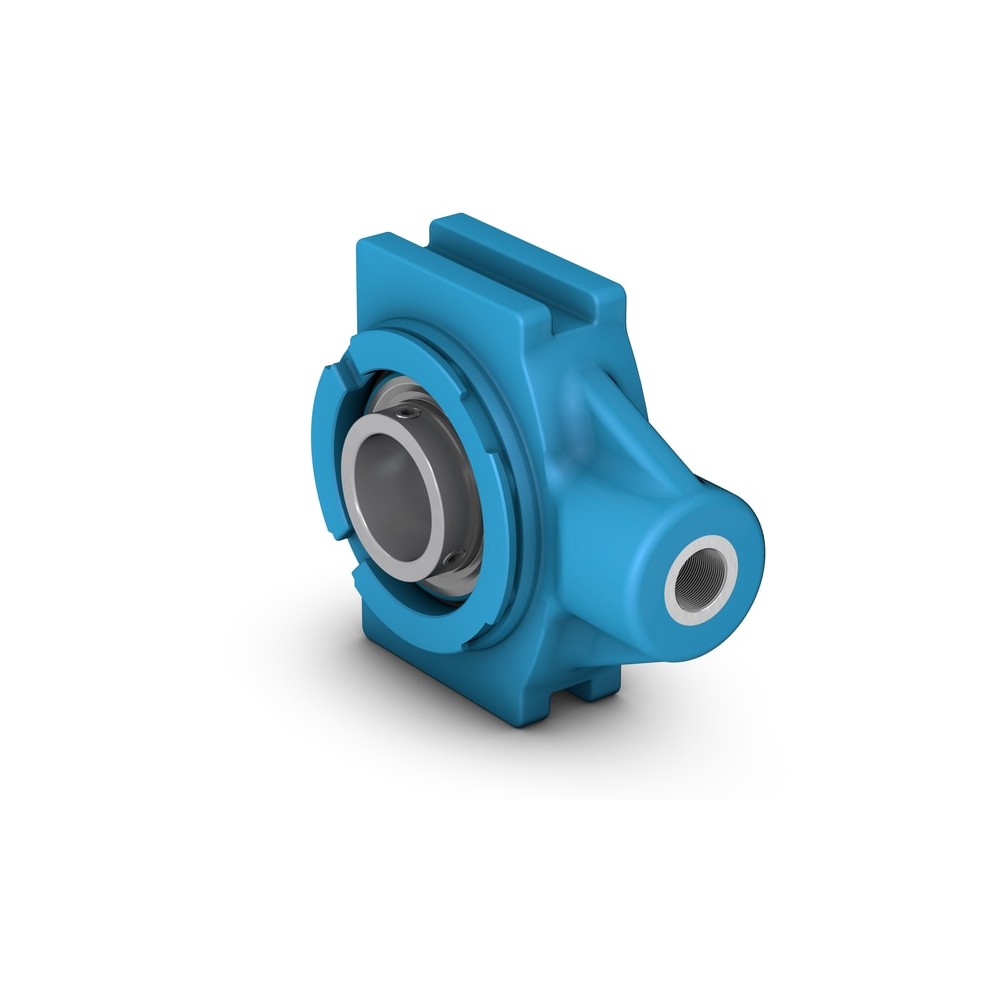

SKF WSTUC 20M-TPZM Ball bearing units

SKF WSTUC 20M-TPZM Ball bearing units

Product Code: WSTUC 20M-TPZM
Part/No: Eshop021070
Brand: SKF
Take-up ball bearing units for the SKF Food Line consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a composite housing. They are strong, yet lightweight, and chemically resistant to detergents and contaminants. Typically mounted in take-up frames, the unit has an inner ring extended on both sides and is locked by tightening a set screw on the inner ring, that makes it easy to mount.
Strong, yet lightweight
Chemically resistant
Designed for an alternating rotation
Well suited to follow the highest food safety standards
Reliable in wet environments
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 20 mm
Performance
Basic dynamic load rating 12.7 kN
Basic static load rating 6.55 kN
Limiting speed 5,000 r/min
Properties
Bearing width total 31 mm
Housing overall width 33.5 mm
Note Limiting speed with shaft tolerance h6
Housing type Takeup
Sealing type Contact, gutter
Bore type Cylindrical
Lubricant Grease
Material housing Composite for the SKF Food Line
Housing type 4 Takeup
Relubrication hole Without
Grease fitting Without
Retaining feature inner ring Set screws
Rubber seating ring Without
Sealing bearing Seal and flinger on both sides
Sealing unit Optional end cover
Coating Zinccoated bearing
Material bearing Bearing steel
Logistics
Pack gross weight 0.376 kg
eClass name Bearing with spherical outside surface
EAN 7316577847737
Product net weight 0.913 kg
