SKF TMMD 100 Blind housing bearing pullers

SKF TMMD 100 Blind housing bearing pullers

Product Code: TMMD 100

Part/No: 033862

Brand: SKF

Click here for more details

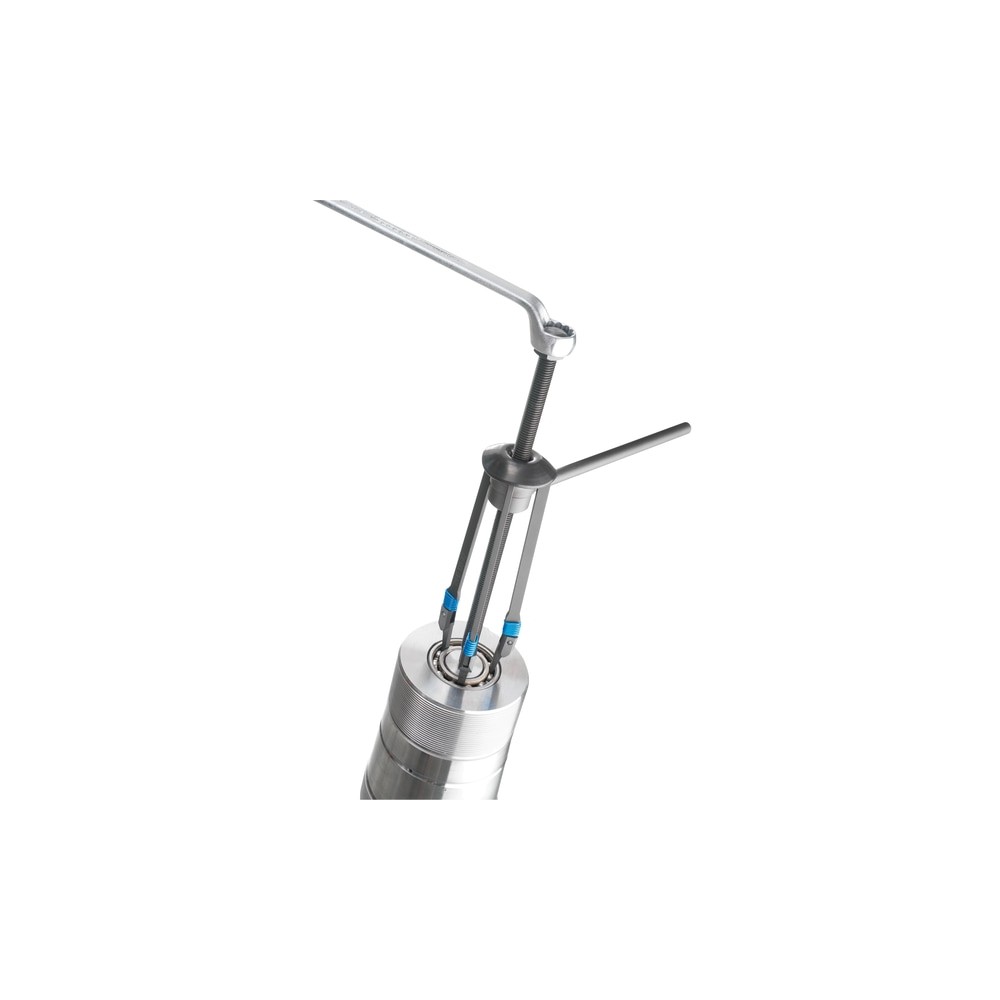

The TMMD 100 bearing puller is an easy to install tool, suitable for use in both blind housings and shaft applications. Supplied in a sturdy carrying case, it is fitted for dismounting up to 71 different SKF deep groove ball bearings, with shaft diameters ranging between 10 and 100 mm (0.43.9 in).

The claws are easy to insert and precisely fit in the bearings raceway, allowing high dismounting forces
Spanner stop function on spindle for easy and safe handling
Color coded and laser marked arms for easy selection
The puller can also be used to remove sealed bearings from blind housings, after the seal has been removed
Supplied in handy tool case

€1,153.14

Tax included

Quantity

100% Shopping Security

Shipped within 24 hours

Dimensions

Performance

Properties

Material Medium carbon steels and alloy engineering steels, hardened and tempered

Coating Black phosphated

Colour Black metallic

Bearing bore diameter range 10 – 100 mm

Suitable for bearing type (s) SKF Deep Groove Ball Bearings (DGBB's)

Content 6x sets of 3 arms, size A1 to A6;2x spindles, size S1 and S2;1x Spindle holder;1x printed Instruction for Use (language free);1x Carrying case (size X)

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) Yes

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) 2 Yes

Suitable for workpiece dismounting from a Housing No

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) No

Suitable for bearing dismounting from a Tapered seating (conical shaft) No

Number of arms 3

Total number of arms in kit 6 sets of 3

Total number of spindles in kit 2

Total product weight 3.6 kg

Logistics

Pack gross weight 3.758 kg
