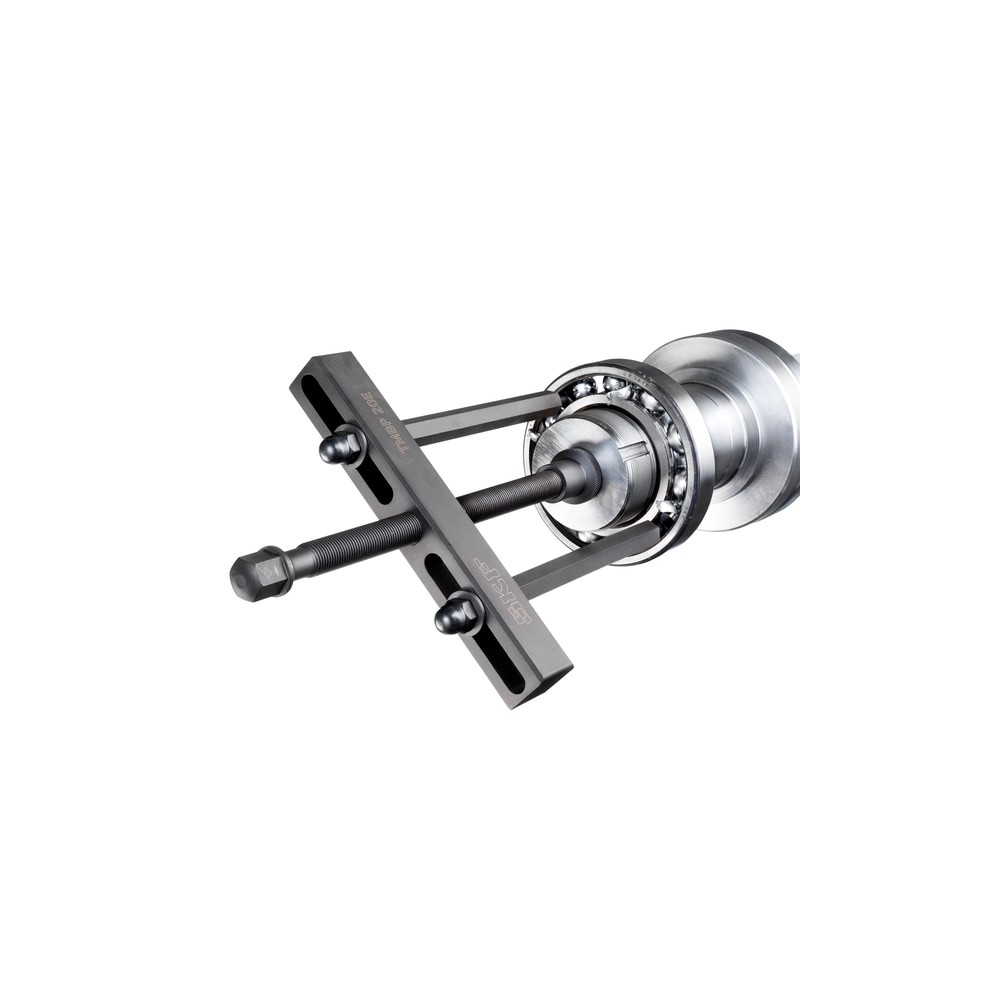

SKF TMBP 20E Blind housing bearing pullers

SKF TMBP 20E Blind housing bearing pullers

Product Code: TMBP 20E

Part/No: 033956

Brand: SKF

Click here for more details

Supplied in a sturdy carrying case, the TMBP 20E is an adapter type puller kit for dismounting deep groove ball bearings in blind housings (i.e. when accessing the ball bearing is not possible through the outer ring or through the bore) with shaft dimensions between 30 mm and 160 mm (1.18 in and 6.3 in). The use of extension rods allows a long reach of up to 583 mm (23 in).

Allows a wide of range of deep groove ball bearings to be dismounted
Ball adapters designed for a long service life
Spanner stop function on spindle for easy and safe handling
Nose piece helps minimise damage to shaft, and improves puller stability
Long reach by using extension rods
Supplied in handy toolcase

€979.54

Tax included

Quantity

100% Shopping Security

Shipped within 24 hours

Dimensions

Performance

Properties

Material Medium carbon steels and alloy engineering steels, hardened and tempered

Coating Black phosphated

Colour Black metallic

Bearing bore diameter range 10 – 100 mm

Suitable for bearing type (s) SKF Deep Groove Ball Bearings (DGBB's)

Content 6x sets of 2 bearing adapters, size A to F;1x Beam; 1x spindle with nose piece;2x arm rods;4x arm extension rods;4x washers;2x nuts;1x printed Instruction for Use (language free);1x Carrying case (size X)

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) Yes

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) 2 Yes

Suitable for workpiece dismounting from a Housing No

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) No

Suitable for bearing dismounting from a Tapered seating (conical shaft) No

Number of arms 2

Number of arm extension pieces 4 included

Total number of bearing adapters in kit 6 sets of 2

Total number of spindles in kit 1

Pulling force (max) 55 kN

Spindle torque (max) 155 N·m
