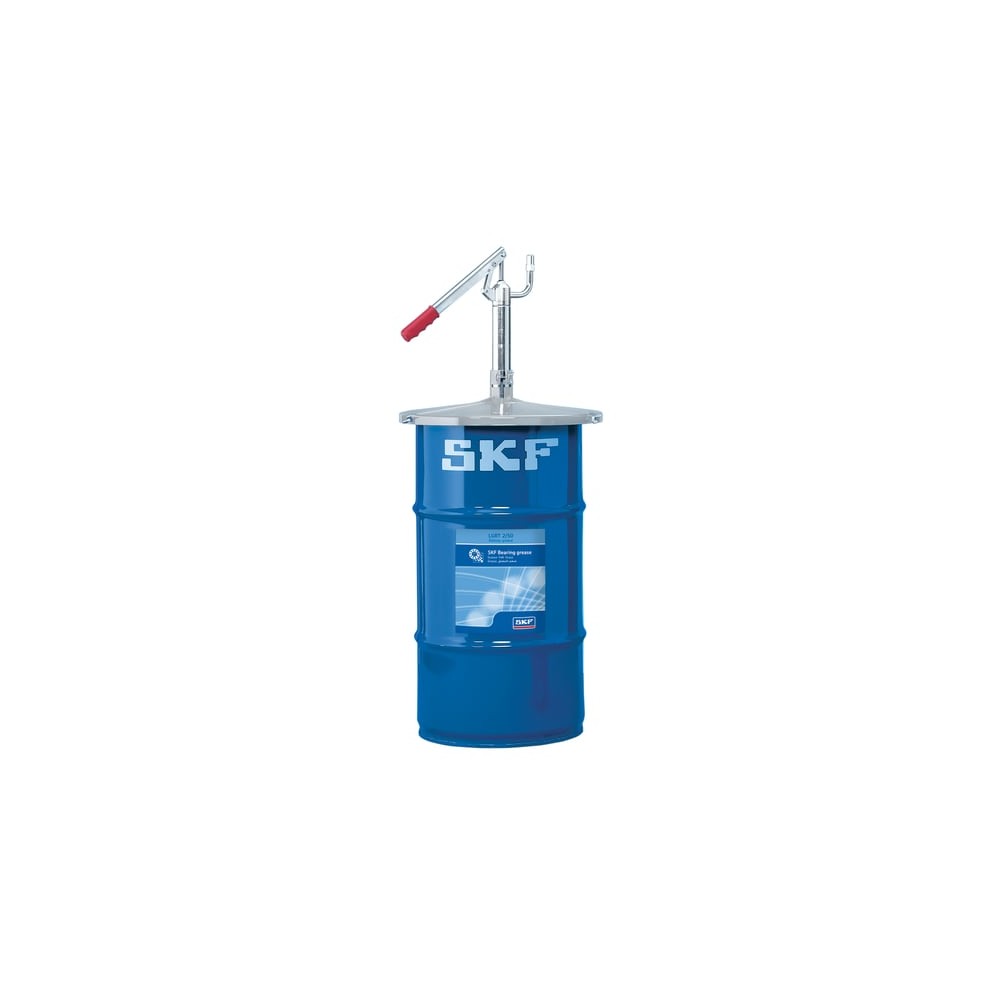

SKF LAGF 50 Grease pumps

SKF LAGF 50 Grease pumps

Product Code: LAGF 50
Part/No: Eshop041627
Brand: SKF
Best lubrication practices say that each type of grease requires an individual grease gun and that the refilling has to be a clean process. SKF Grease Filler Pumps are designed to achieve this goal. The LAGF 50 is operated with a mechnical lever and enables optimum cleanliness for filling grease guns from a 50 kg drum.
Quick filling with low pressure high stroke volume
Easy usage with all items included
Tested and approved for all SKF greases
Ideal for usage together with SKF Bearing Packer VKN 550
€437.66
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Properties
Material steel
Air pressure – bar
Ambient temperature range 5 – 50 °C
Connection greasing point: DIN 1283 nipple
Content grease pump with pump handle, drum cover plate, drum followerplate
Suitable drum inner diameter – mm
Suitable drum inside height (max) 675 mm
Mobility stationary
NLGI class of lubricant (max) 2
Operation manual pump with handle
Optional Trolley LAGT 18 - 50
Power source manual
Recommended applications grease filler pump for drums or pails designed to fill grease guns or TLRD grease dispensers
Recommended storage temperature 10–40 °C
Total product weight 6.08 kg
Volume per stroke 45 ml
Width across flats 1 30 bar
Maximum pressure 3 MPa
Logistics
Pack gross weight 7.897 kg
eClass name Lubricating arrangement (grease, parts)
UNSPSC code 15-12-19-02
EAN code 07316571359403
Product net weight 6.08 kg
eClass code 23-06-91-06
