SKF LAGG 18M Grease pumps

SKF LAGG 18M Grease pumps

Product Code: LAGG 18M
Part/No: Eshop041631
Brand: SKF

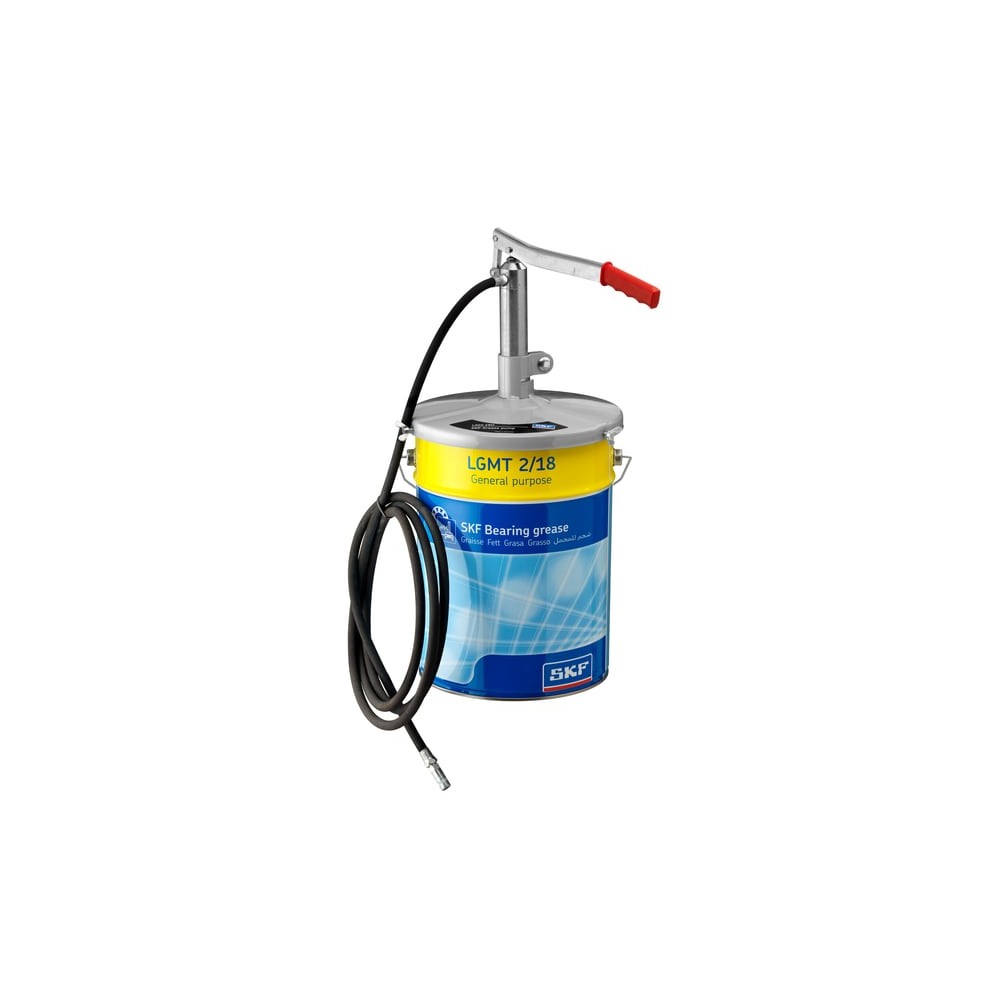

SKF manual grease pump LAGG 18M is designed to supply grease at high pressure from a 18 kg drum. This is useful when large housings have to be filled or when numerous points have to be lubricated. It is also possible to top up centralised lubrication system reservoirs.
High pressure
Reliable and tested for SKF greases in 18 kg drums
Easy and ready to use
Long tubing included
Manual operation
€619.94
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Properties
Material steel, rubber hose
Air pressure – bar
Ambient temperature range 5 – 50 °C
Connection greasing point: DIN 71412
Content grease pump with pump handle, drum cover plate, drum followerplate, high pressure hose
Suitable drum inner diameter – mm
Suitable drum inside height (max) 420 mm
Mobility stationary
NLGI class of lubricant (max) 2
Operation air operated grease pump
Optional Trolley LAGT 18 - 50
Power source manual
Recommended applications grease pump for drums or pails designed for high pressure applications;can be connected directly on greasing points;suitable for filling centralised lubricating grease systems
Recommended storage temperature 10–40 °C
Total product weight 5.81 kg
Volume per stroke 1.6 ml
Width across flats 1 500 bar
Maximum pressure 50 MPa
Logistics
Pack gross weight 6.919 kg
eClass name Lubricating arrangement (grease, parts)
UNSPSC code 15-12-19-02
EAN code 07316571359359
Product net weight 5.81 kg
eClass code 23-06-91-06
