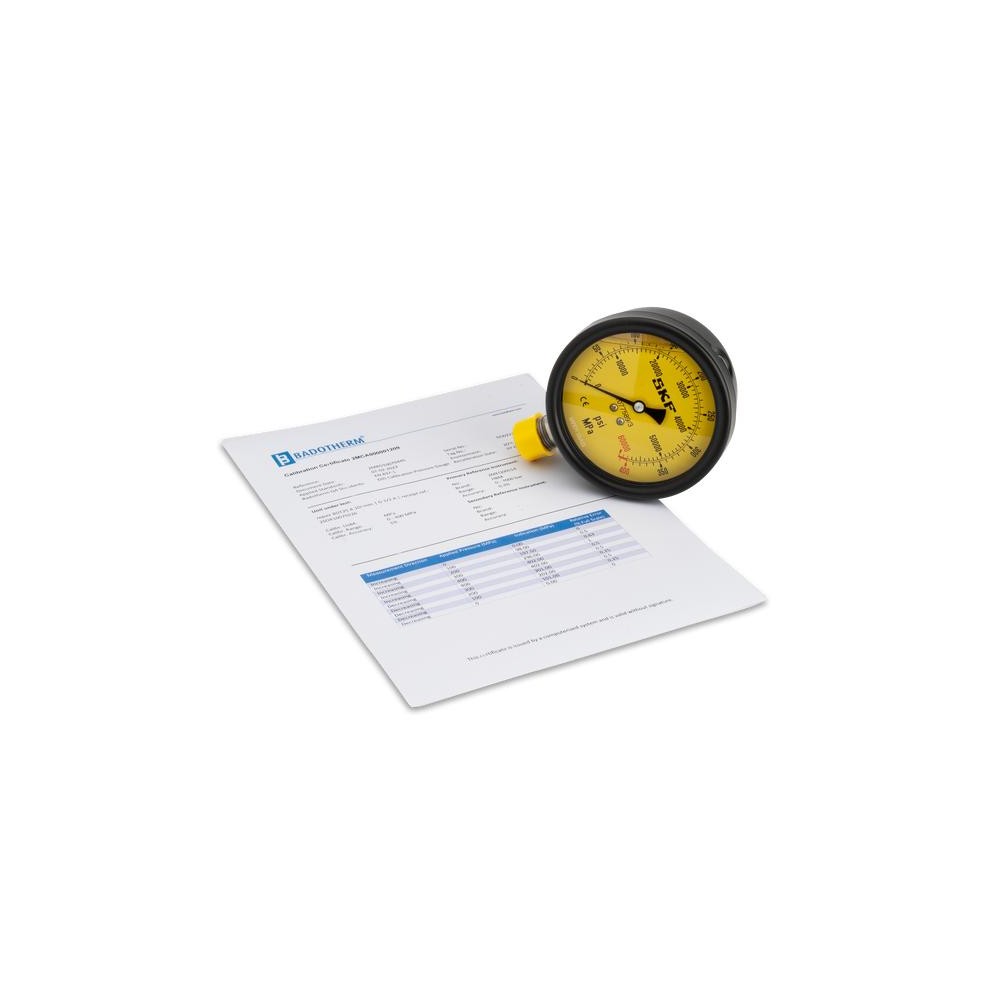

SKF 1077589/3 CAL Hydraulic pressure gauges

SKF 1077589/3 CAL Hydraulic pressure gauges

Product Code: 1077589/3 CAL
Part/No: Eshop042278
Brand: SKF
The pressure gauges, to fit hydraulic pumps and injectors, are all liquid filled and equipped with a restriction screw in order to absorb any sudden pressure drop thereby preventing damage. Safety glass and blowout discs are standard for all gauges and all have dual scales (MPa/psi).
Easy to read, high visibility yellow gauge faces
Protection against sudden pressure drops
Safety glass and blow out discs on all gauges
Stainless steel housing
Dual scales MPa/psi.
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Product weight 0.93 kg
Performance
Properties
Material Stainless steel housing, Safety glass
Coating Powder coated
Connecting thread G 1/2
Colour Black housing, Yellow dial
Certifications Calibration certificate with two year validity
Degree of protection (IP) IP 65
Housing outer diameter 110 mm
Measurement accuracy (+/-) 1
Measurement method Bourdon tube type
Operating temperature range 0 – 40 °C
Pressure range (Bar) 0 – 400 MPa
Pressure range (Mpa) 0 – 4,000 bar
Suitable for Drive up method No, but allows bearing mounting with Feeler Gauge Method
Recommended applications SKF pressure gauges are designed to fit SKF hydraulic pumps and oil injectors.
Recommended storage temperature -20 – 65 °C
Special features Dual scale dial (MPa/psi), absorbs sudden pressure drops, safety glass, blowout disc, Special calibrated version
Logistics
Pack gross weight 1.03 kg
eClass name Product for mounting and dismounting and for maintenance
UNSPSC code 27-11-29-08
EAN code 07316579346573
Product net weight 0.93 kg
eClass code 23-05-19-01
