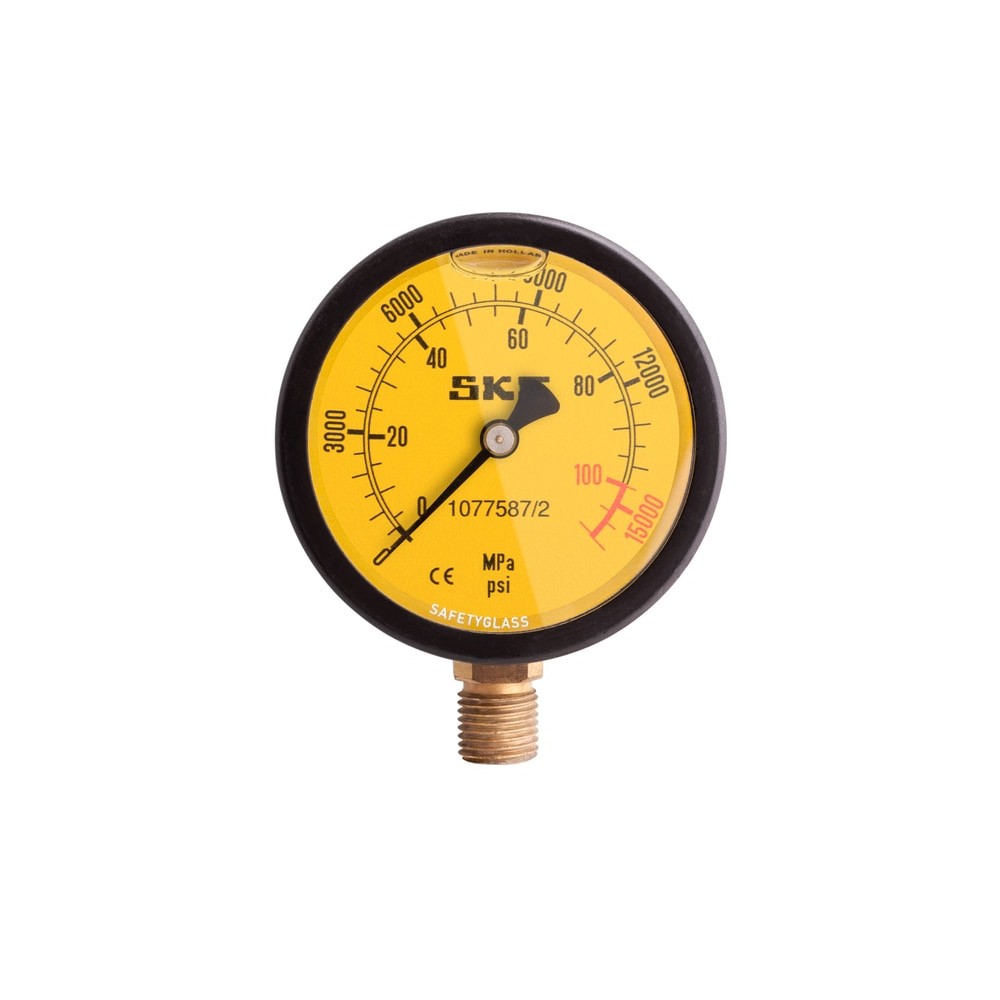

SKF 1077587/2 Hydraulic pressure gauges

SKF 1077587/2 Hydraulic pressure gauges

Product Code: 1077587/2
Part/No: 033402
Brand: SKF
SKF Pressure Gauges are designed to fit SKF Hydraulic Pumps and SKF Oil Injectors. The gauges are all liquid filled and equipped with a restriction screw in order to absorb any sudden pressure drop thereby preventing damage. Safety glass and blowout discs are standard for all gauges and all have dual scales (MPa/psi).
Protection against sudden pressure drops
Safety glass and blow out discs on all gauges
Stainless steel case
Dual scales MPa/psi
Easy to read, high visibility yellow gauge faces
€259.10
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Product weight 0.22 kg
Performance
Properties
Material Stainless steel housing, Safety glass
Coating Powder coated
Connecting thread G 1/4
Colour Black housing, Yellow dial
Certifications none
Degree of protection (IP) IP 65
Housing outer diameter 69 mm
Measurement accuracy (+/-) 1.6
Measurement method Bourdon tube type
Operating temperature range 0 – 40 °C
Pressure range (Bar) 0 – 100 MPa
Pressure range (Mpa) 0 – 1,000 bar
Suitable for Drive up method No, but allows bearing mounting with Feeler Gauge Method
Recommended applications SKF pressure gauges are designed to fit SKF hydraulic pumps and oil injectors.
Recommended storage temperature -20 – 65 °C
Special features Dual scale dial (MPa/psi), absorbs sudden pressure drops, safety glass, blowout disc
Logistics
Pack gross weight 0.29 kg
eClass name Product for mounting and dismounting and for maintenance
UNSPSC code 27-11-29-08
EAN code 07316577057334
Product net weight 0.22 kg
eClass code 23-05-19-01
