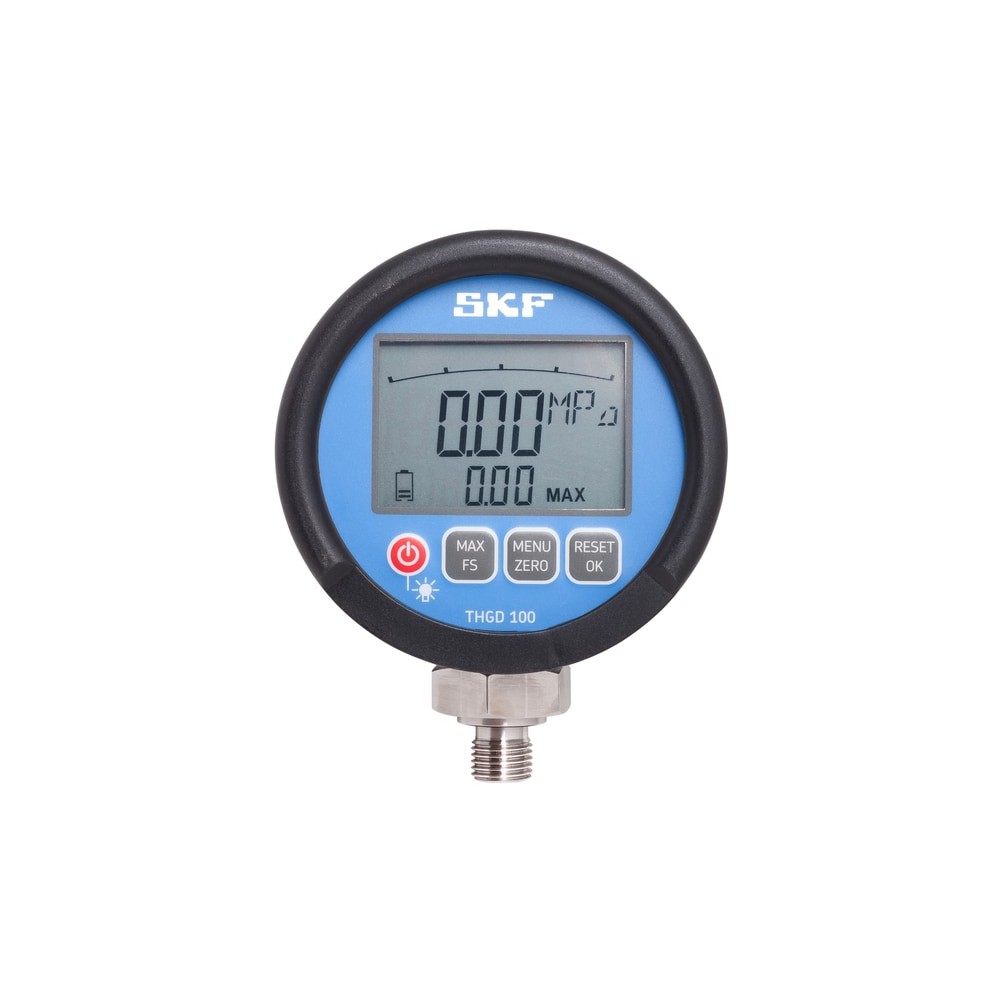

SKF THGD 100 Hydraulic pressure gauges

Product Code: THGD 100

Part/No: Eshop041955

Brand: SKF

Click here for more details

The Digital oil pressure gauge, THGD 100, is used to accurately measure the hydraulic pressure when mounting bearings using the SKF Drive-up Method.

Digital oil pressure gauge with actual and maximum display
Bar graph display 33 segments (with peak and hold function)
4.1/2 digit LC display (15 mm) with back light illumination
Start up check: LCD Segment check, maximum pressure &amp
current displayed units (MPa or psi), Auto power off status

€1,128.34

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Product weight 0.54 kg

Performance

Properties

Connecting thread G 1/4

Dimensions (WxLxH) 90 x 45 x 114 mm

Colour Black/Blue

Auto switch off 30 min, off

Battery 2 x LR6 (AA) alkaline batteries

Battery Life 100 hr, with backlight1500 hrs, without backlight

Content Gauge;2x AA batteries;Rubber Protection sleeve;Instructions for use

Display LCD 4½ digit, 15 mm with back light illumination

Degree of protection (IP) IP 67

Housing material Glass fiber reinforced housing with rubber protection sleeve

Housing outer diameter 90 mm

Measurement accuracy (+/-) 0.1

Measurement method Strain gauge

Operating temperature range 0 – 50 °C

Pressure range (Bar) 0 – 100 MPa

Pressure range (Mpa) 0 – 1,000 bar

Suitable for Drive up method Yes

Recommended applications For mounting bearings with the SKF Drive-up Method and for other applications where the pressure has to be determined with high accuracy

Resolution 0.01 MPa

Response time 10 ms

Shock resistance (IEC 60068-2-29) 25 mg/11 ms

Vibration resistance (IEC 60068-2-6) 10500 Hz / 5g

Recommended storage temperature -20 – 60 °C

Special features Dual scale dial, MPa/psi, Simulataneous display of actual and max pressure, Auto-off selectable, incl. Bar graph, Backlight, Battery level indication, Zero point correction, Swivel connection

Logistics

Pack gross weight 0.55 kg

eClass name Product for mounting and dismounting and for maintenance

UNSPSC code 27-11-29-08

EAN code 07316575611323

Product net weight 0.48 kg

eClass code 23-05-19-01
