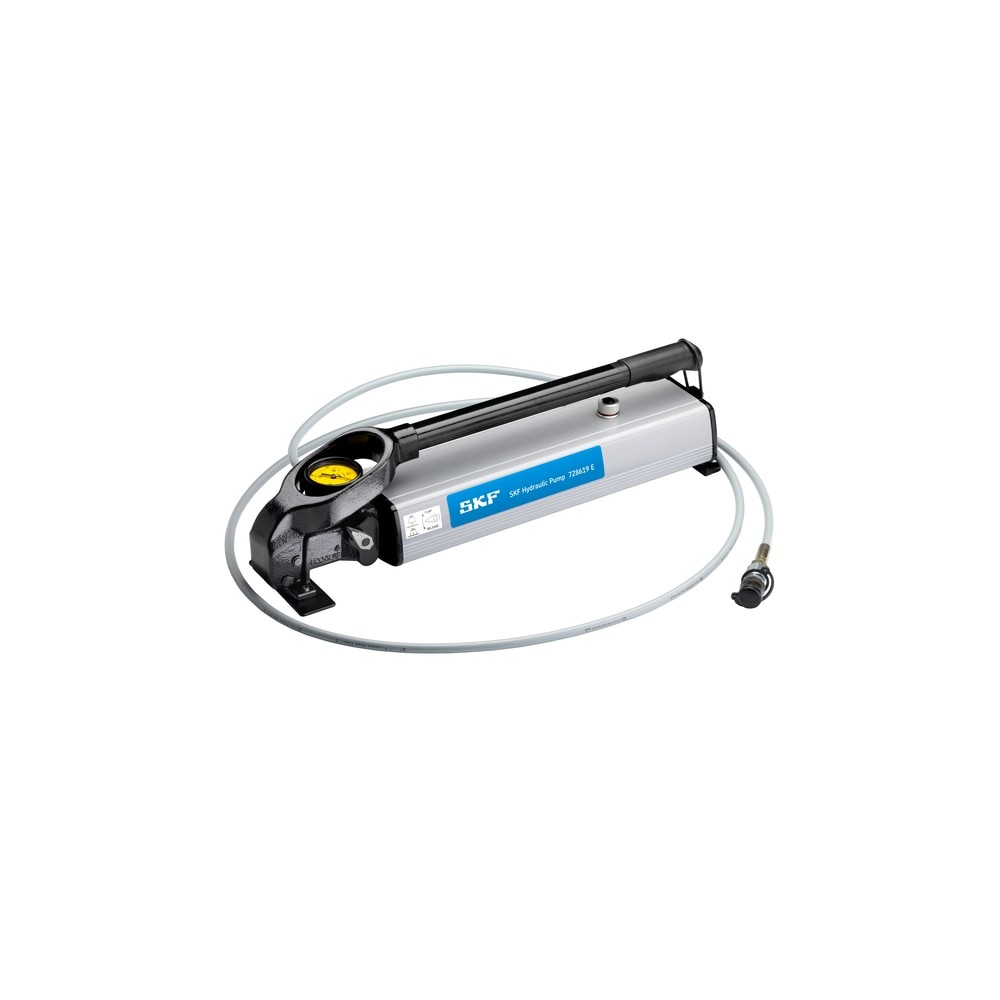

SKF 728619 E Hydraulic pumps and oil injectors

Product Code: 728619 E

Part/No: 033421

Brand: SKF

Click here for more details

The SKF 728619 E is a two-stage pump suitable for use with SKF Supergrip Bolts and to mount bearings or components where a maximum pressure of 150 MPa(21,750 psi) is required. The 728619 E can be used to install SKF Supergrip Bolts and for Oil injection applications where the maximum pressureis 150 MPa (21,750 psi). The 728169 E can be used with all sizes of SKF Hydraulic Nuts.

Oil container capacity 2550 cm (155 in)
Two stage pressure pumping
Fitted with a pressure gauge
Supplied with an extra litre of fluid
Packed in a sturdy protective case

€3,980.34

Tax included

Quantity

100% Shopping Security

Shipped within 24 hours

Dimensions

Product weight 11.4 kg

Performance

Properties

Type Hand operated pump

Case dimensions (lxhxw) 753 x 190 x 330 mm

Dimensions (WxLxH) 130 x 620 x 170 mm

Hose length 3000 mm

Colour Grey;Black

Connection nipple G 1/4 (male)

Content Pump with mounting fluid;pressure hose;quick connection coupling;quick connection nipple;pressure gauge;metal case;1l can of mounting fluid

Filled with oil Yes, with SKF Mounting Fluid LHMF 300

Handle force at maximum oil pressure 370 N

Housing material Aluminium pump body

Suitable for Hydraulic nut HMV - Largest 54

Suitable for Hydraulic nut HMV - Smallest 10

Suitable for Hydraulic nut HMV range –

Oil container capacity 2400 ml

Operating temperature range 10 – 35 °C

Pressure gauge Yes, analogue

Suitable for Drive up method No

Type of pump Two-stage

Recommended applications SKF Supergrip bolts;Oil injection applications where the maximum pressure is 150 MPa (21 750 psi);All sizes SKF hydraulic nuts

Relative humidity 0 to 75%, non-condensing

Total product weight 19.9 kg

Volume per stroke, 1st stage 20 cm³ below 2.5 MPa

Volume per stroke, 2nd stage 1 cm³ above 2.5 MPa

Width across flats 1 1500 bar

Maximum pressure 150 MPa

Logistics

Pack gross weight 20.555 kg

eClass name Product for mounting and dismounting and for maintenance

UNSPSC code 27-11-29-08

EAN code 07316571853499

Product net weight 19.87 kg
