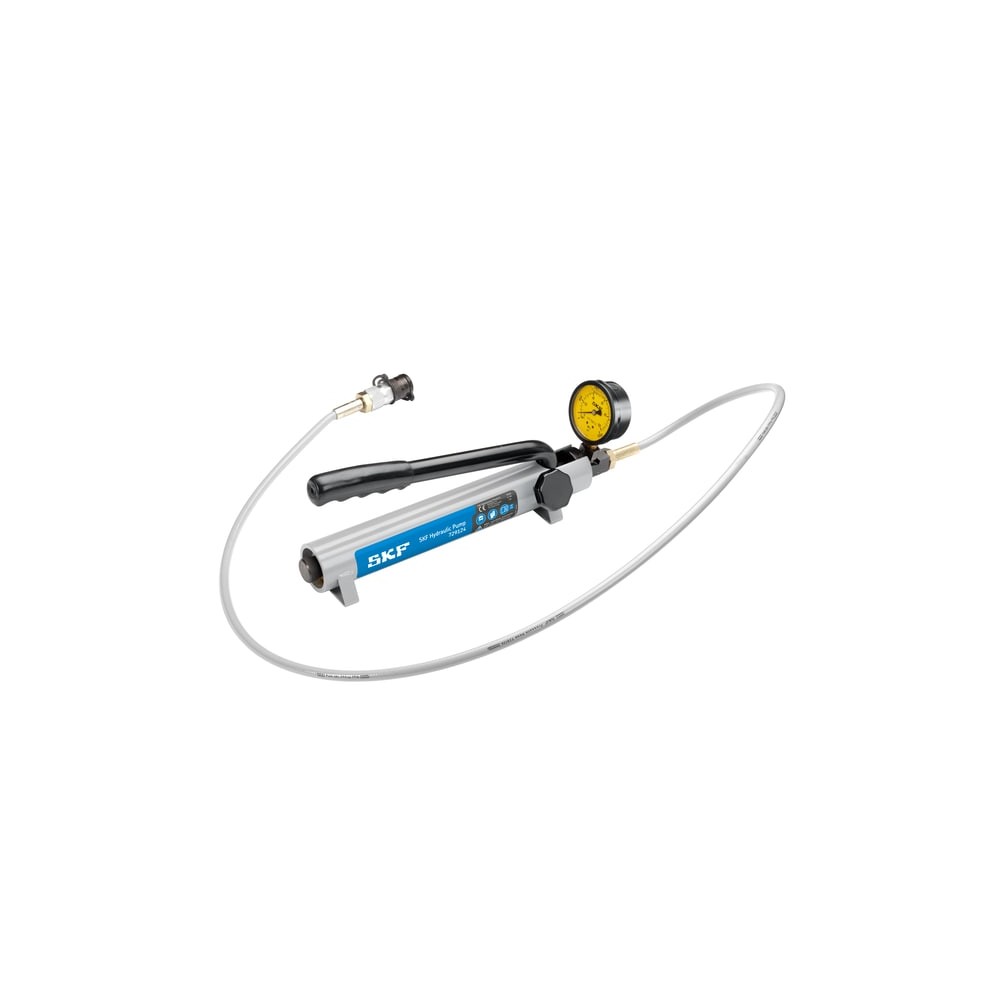

SKF 729124 Hydraulic pumps and oil injectors

Product Code: 729124

Part/No: Eshop041257

Brand: SKF

Click here for more details

The SKF 729124 is mainly intended for SKF Hydraulic Nuts (smaller than HMV 55E) to mount bearings or components where a maximum pressure of 100 MPa (14,500 psi) is required. The 729124 can also be used for oil injection applications for removing rolling element bearings.

Oil container capacity 250 cm (15 in)
Fitted with a pressure gauge
Packed in a sturdy protective case
Supplied with an extra litre of fluid

€0.00

(*The price will be determined)

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Product weight 3.52 kg

Performance

Properties

Type Hand operated pump

Case dimensions (lxhxw) 530 x 110 x 360 mm

Dimensions (WxLxH) 95 x 380 x 130 mm

Hose length 1500 mm

Colour Grey;Black

Connection nipple G 1/4 (male)

Content Pump with mounting fluid;pressure hose;quick connection coupling;quick connection nipple;pressure gauge;carrying case;1l can of mounting fluid

Filled with oil Yes, with SKF Mounting Fluid LHMF 300

Handle force at maximum oil pressure 300 N

Housing material Steel pump body

Suitable for Hydraulic nut HMV - Largest 54

Suitable for Hydraulic nut HMV - Smallest 10

Suitable for Hydraulic nut HMV range –

Oil container capacity 250 ml

Operating temperature range 10 – 35 °C

Pressure gauge Yes, analogue

Suitable for Drive up method No

Type of pump Single stage

Recommended applications SKF hydraulic nuts smaller than or equal to HMV 54E;Oil injection applications where the maximum pressure is 100 MPa (14 500 psi)

Relative humidity 0 to 75%, non-condensing

Total product weight 7.7 kg

Volume per stroke 0.5 ml

Width across flats 1 1000 bar

Maximum pressure 100 MPa

Logistics

Pack gross weight 8.023 kg

eClass name Product for mounting and dismounting and for maintenance

UNSPSC code 27-11-29-08

EAN code 07316576610677

Product net weight 7.68 kg

eClass code 23-05-19-01
