SKF THAP 030E Hydraulic pumps and oil injectors

Product Code: THAP 030E

Part/No: Eshop041922

Brand: SKF

Click here for more details

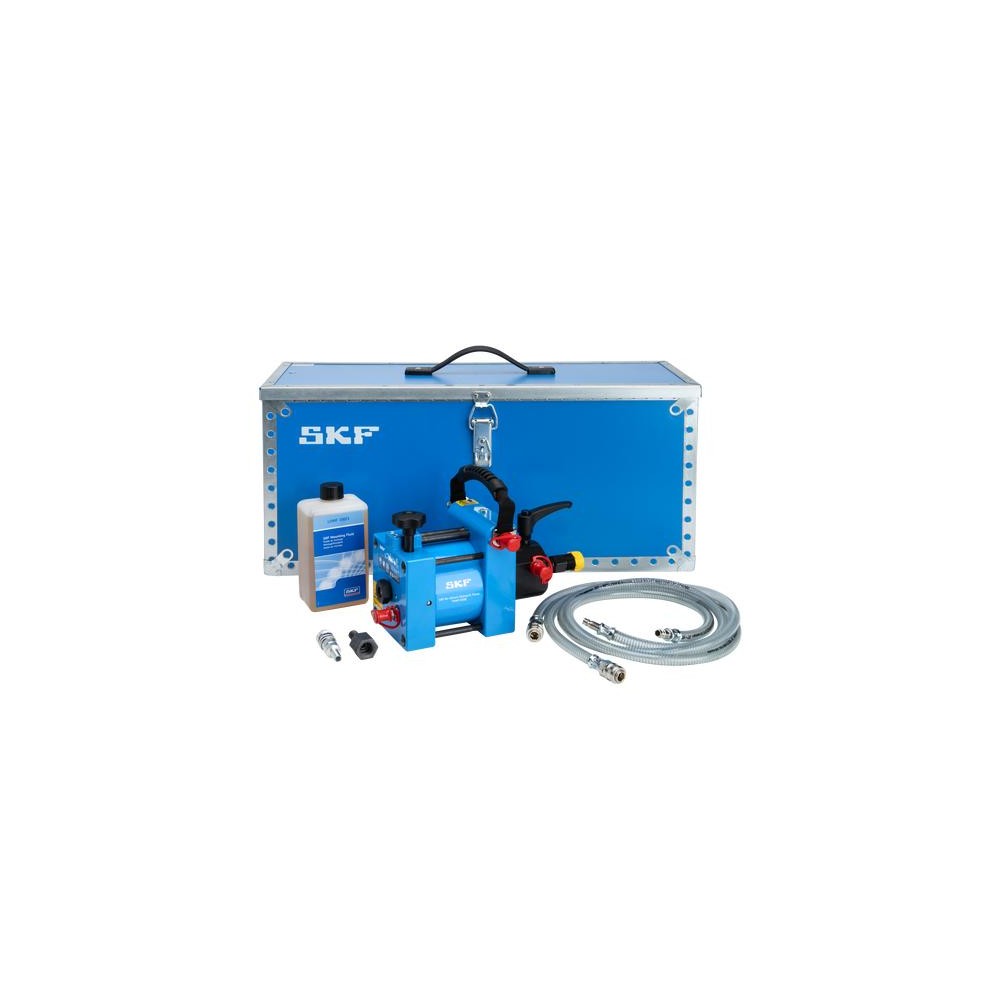

The THAP 030E air-driven hydraulic pump can be used for mounting SKF OK Coupling hydraulic chambers and simlar applications for pressures upto 30 MPa/4,350 psi. The unit consists of a hydraulic pump driven by an air motor. The item is supplied in a sturdy case including oil suction and return hoses with quick connect couplings. SKF Mounting and Dismouting fluids are recommended for use with the THAP 030E.

Time savings compared to hand operated pumps
Portable
Continuous supply of oil
Internal air pressure limiter helps ensure safe operation
Low air consumption
Wide operating temperature range
Sturdy storage boxes

€6,336.34

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Product weight 11.5 kg

Performance

Properties

Dimensions (WxLxH) 171 x 350 x 202 mm

Colour Blue, metallic grey

Air consumption 200 l/min

Air pressure – bar

Content Air driven pump 30 MPa (4 350 psi);2x Low pressure hoses with couplings(1.5 m/4.9 ft);Air hose coupling(f);Mounting fluid (1 ltr/0.22 gal);Instructions for use;Carrying case

Housing material Aluminium;Alloy tool steel

Oil container No

Oil outlet thread G 3/4

Oil viscosity (maximum) 1500

Operating temperature range 0 – 45 °C

Pressure gauge Optional

Pressure ratio 1:50

Recommended applications SKF OK Coupling hydraulic chamber

Total product weight 20.2 kg

Volume per stroke 10 cm³
10 ml

Width across flats 1 300 bar

Maximum pressure 30 MPa
