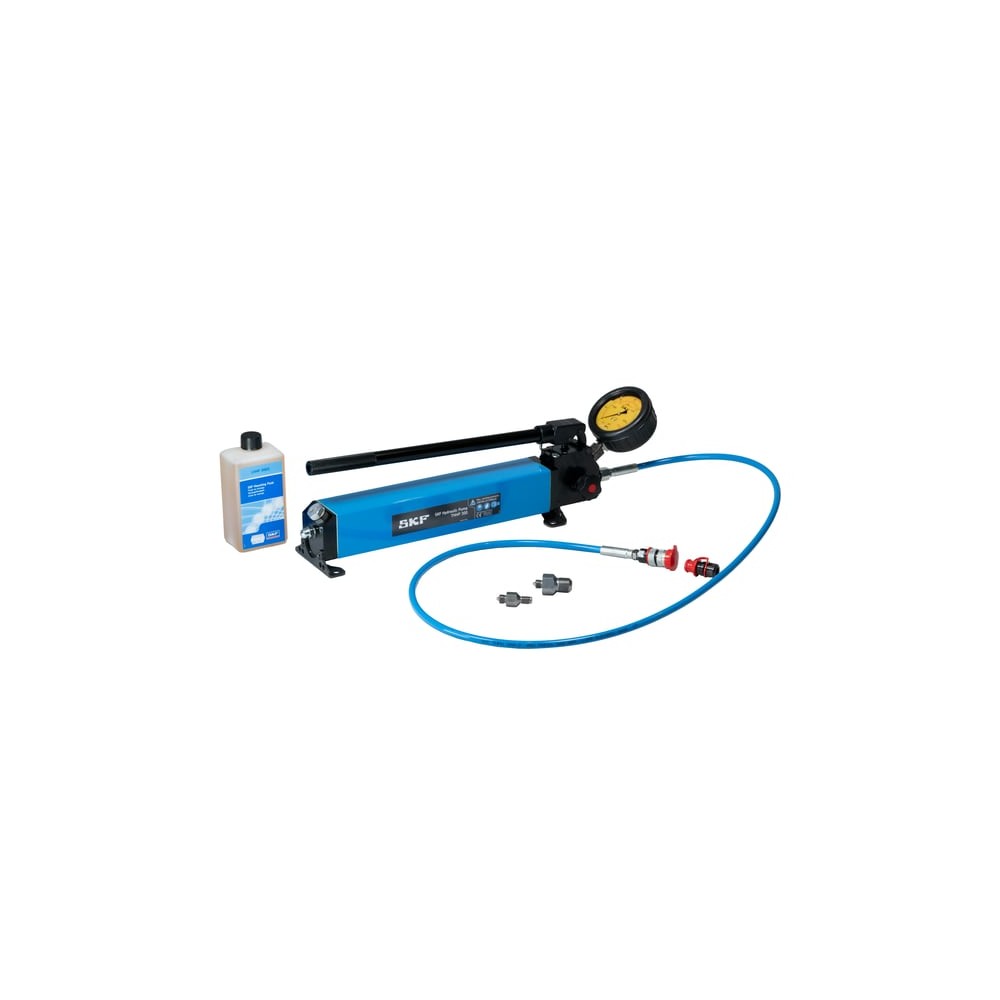

SKF THHP 300 Hydraulic pumps and oil injectors

Product Code: THHP 300

Part/No: 033674

Brand: SKF

Click here for more details

The THHP 300 is a high pressure, easy-to-connect manual hydraulic pump, suitable for many applications using the SKF Oil Injection Method, for oil pressures up to 300 MPa (43 500 psi). The two stage pump includes a 0-300 MPa (0-43 500 psi) pressure gauge

Two stage pump designed to quickly reach high pressures up to 300 MPa (43 500 psi)
Large, mounted gauge shows pressures over the full pressure range
Glycerine filled pressure gauge dampens shocks and pressure peaks, giving longer service life and is

€4,701.09

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Case dimensions (lxhxw) 920x318x380 mm

Dimensions (WxLxH) 130x574x200 mm

Hose length 2000 mm

Performance

Width across flats 1 3000 bar

Maximum pressure 300 MPa

Properties

Content Pump with mounting fluid,pressure hose,quick connection coupling,quick connection nipple,2 connection nipples,pressure gauge,tool case,1l can of mounting fluid

Recommended applications Applications using the SKF Oil Injection Method

Colour Blue,Black

Total product weight 9.1 kg

Housing material light aluminum engineering alloy

Relative humidity 0 to 75%, non-condensing

Product weight 7.5 kg

Operating temperature range 10 – 35 °C

Oil container capacity 1600 ml

Pressure gauge Yes, analogue

Suitable for Drive up method No

Type of pump Two-stage

Connection nipple G1/4 (male) and G3/4 (male)
