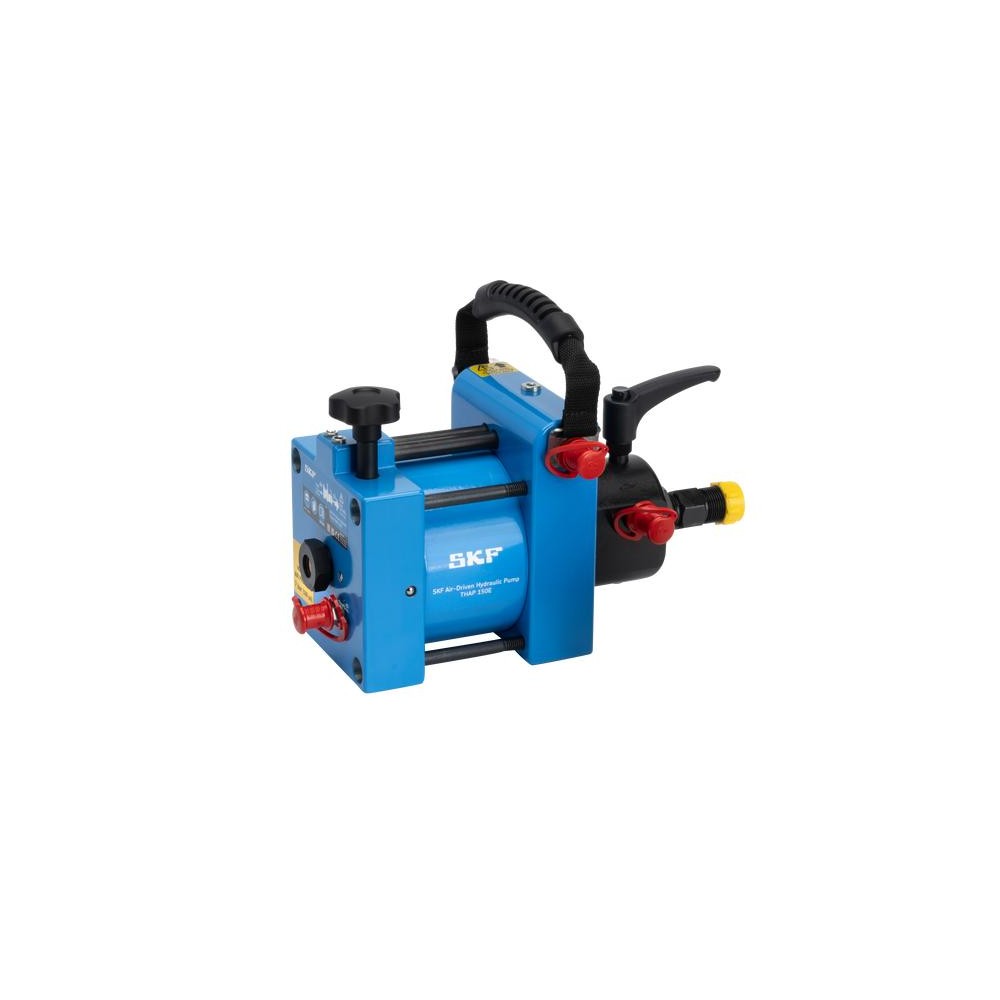

SKF THAP 150E Hydraulic pumps and oil injectors

Product Code: THAP 150E

Part/No: 033935

Brand: SKF

Click here for more details

The THAP 150E air-driven hydraulic pump can be used for mounting SKF OK Coupling hydraulic chambers and for mounting and dismounting large rolling element bearings using the oil injection method. It is also suitable for simlar applications for pressures upto 150 MPa/21,750 psi. The unit consists of a hydraulic pump driven by an air motor. The item is supplied in a sturdy case including oil suction and return hoses with quick connect couplings. SKF Mounting and Dismouting fluids are recommended for use with the THAP 150E.

Time savings compared to hand operated pumps
Portable
Continuous supply of oil
Internal air pressure limiter helps ensure safe operation
Low air consumption
Wide operating temperature range
Sturdy storage boxes

€6,485.14

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Product weight 11.5 kg

Performance

Properties

Dimensions (WxLxH) 171 x 350 x 202 mm

Colour Blue, metallic grey

Air consumption 200 l/min

Air pressure – bar

Content Air driven pump 150 MPa (21 750 psi);2x Low pressure hoses with couplings(1.5 m/4.9 ft);Air hose coupling(f);Mounting fluid (1 ltr/0.22 gal);Instructions for use;Carrying case

Housing material Aluminium;Alloy tool steel

Oil container No

Oil outlet thread G 3/4

Oil viscosity (maximum) 1500

Operating temperature range 0 – 45 °C

Pressure gauge Optional

Pressure ratio 1:250

Recommended applications Bolt tensioners;Mounting of propellers;Oil injection for large bearing seatings

Total product weight 20.2 kg

Volume per stroke 1.92 cm³
1.92 ml

Width across flats 1 1500 bar

Maximum pressure 150 MPa
