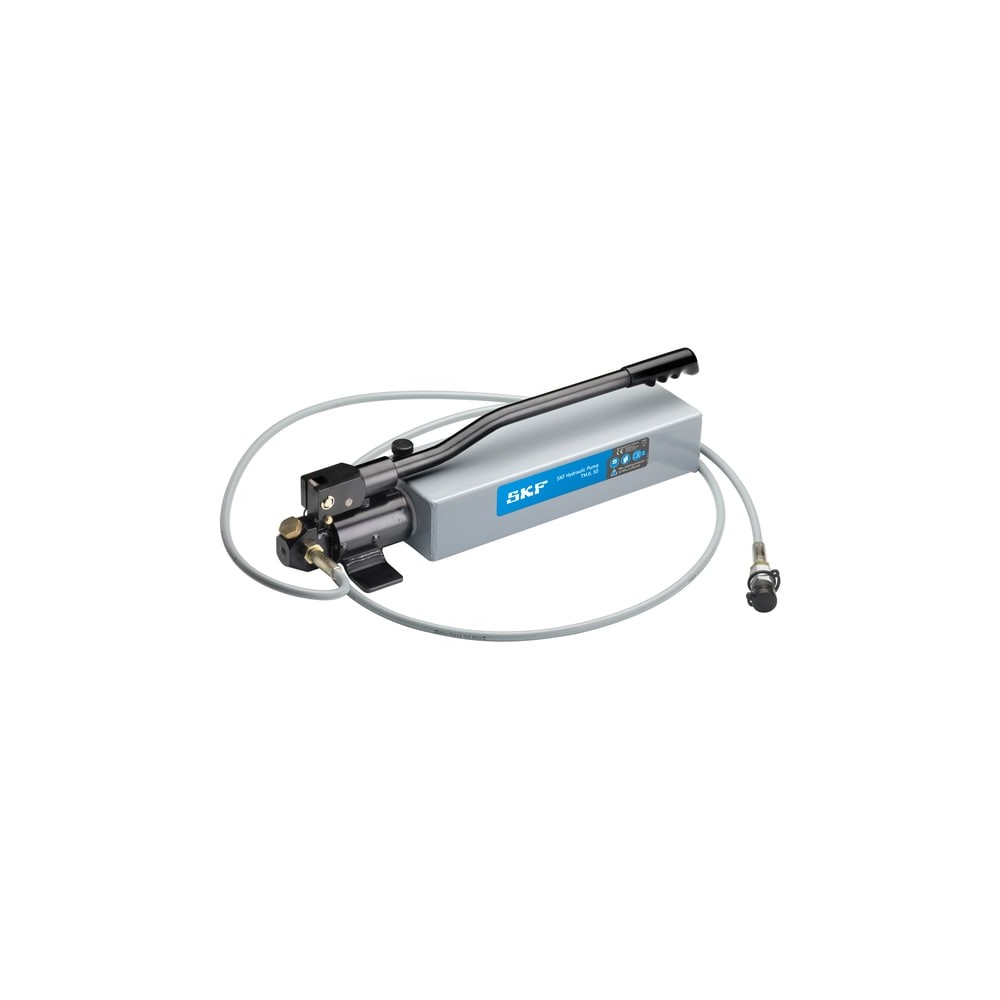

SKF TMJL 50 Hydraulic pumps and oil injectors

Product Code: TMJL 50

Part/No: 033401

Brand: SKF

Click here for more details

The SKF TMJL 50 is mainly intended for larger SKF Hydraulic Nuts and SKF OK Coupling hydraulic chambers, but is also suitable for applications where a maximum pressure of 50 MPa (7,250 psi) is required.

Large oil container capacity 2700 cm³
(165 in³)
Over pressure valve and connection port for a pressure gauge
Packed in a sturdy protective case
Supplied with an extra litre of fluid

€2,142.72

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Case dimensions (lxhxw) 715x280x355 mm

Dimensions (WxLxH) 120x635x185 mm

Hose length 3000 mm

Performance

Width across flats 1 500 bar

Maximum pressure 50 MPa

Properties

Content Pump with mounting fluid,pressure hose,quick connection coupling,quick connection nipple,tool case,1l can of mounting fluid

Recommended applications SKF OK coupling hydraulic chambers,All sizes SKF hydraulic nuts,Oil injection applications where the maximum pressure is 50 MPa (7 250 psi)

Colour Grey,Black

Total product weight 17.8 kg

Housing material Steel pump body

Relative humidity 0 to 75%, non-condensing

Product weight 12 kg

Operating temperature range 10 – 35 °C

Oil container capacity 2700 ml

Pressure gauge No

Suitable for Drive up method No

Type of pump Single stage

Volume per stroke 3.5 ml

Connection nipple G 1/4 (male)
