SKF SC 30 ES Rod ends

SKF SC 30 ES Rod ends

Product Code: SC 30 ES
Part/No: Eshop019519
Brand: SKF

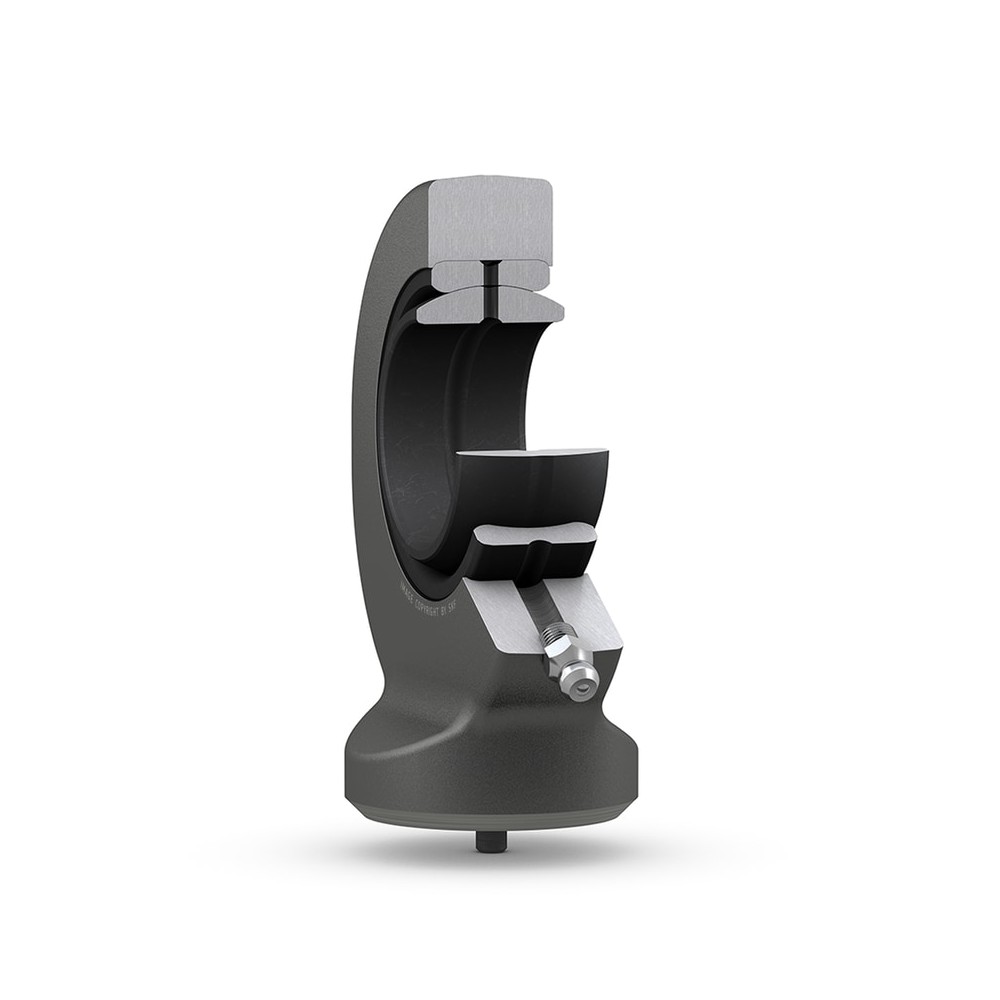

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a lubrication hole or grease fitting in the housing and via the shaft. The dowel pin eases centring at the cylindrical section welding shank.
Suitable for heavy static, alternating or impact loads
Easy to relubricate
Easy to center
€210.38
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 62 kN
Basic static load rating 96.5 kN
Properties
Bore diameter bearing inner ring 30 mm
Centre height housing from end of shank 51 mm
Housing length total 89 mm
Outside diameter housing eye 75 mm
Width bearing inner ring 22 mm
Width housing eye 20 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Cylindrical section, with locating pin, for welding
Sliding contact surface combination Steel/steel, standard
Material inner ring Bearing steel
Material outer ring Bearing steel
Maintenance Relubrication required
Logistics
Pack gross weight 707.8 g
eClass name Rod end (spherical plain bearing)
EAN 7316577002761
Product net weight 251.8 g
