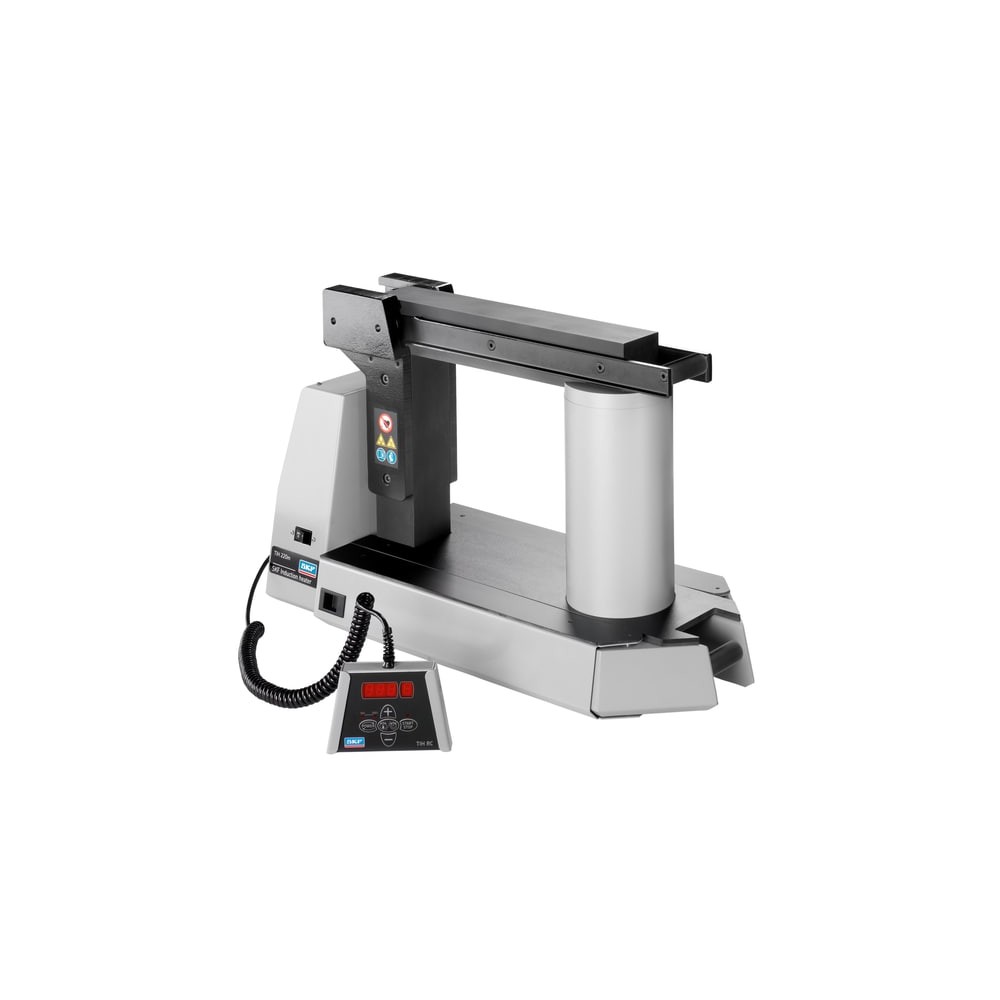

SKF TIH 220M/LV Induction heaters

SKF TIH 220M/LV Induction heaters

Product Code: TIH 220M/LV
Part/No: 033678
Brand: SKF
The SKF TIH 220M is a large induction heater and is designed for the hot mounting of bearings. This versatile heater is ideal for use on workbenches and can easily be transported to on-site applications with the optional heater trolley TIH T1. The heater
Supplied with standard sliding yoke and one smaller yoke located in an integrated storage compartment
Easy and safe to use with automatic temperature control or time controlled heating
Automatic demagnetization reduces risk of bearing contaminati
€9,393.25
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Dimensions (WxLxH) 290x750x440 mm
Coil diameter 140 mm
Operating area height 255 mm
Operating area width 250 mm
Optional yokes for minimal workpiece bore diameter 40 mm
Properties
Voltage 200–230 V
Heating time control 0.1 – 60 min
Heating time steps 0.1 min
Heating temperature steps 1 °C
Temperature measurement Magnetic probe K-type
Colour Light grey, black
Total product weight 140 kg
Voltage frequency 50–60 Hz
Workpiece weight (max) 300 kg
Demagnetisation after heating (according SKF norms) < 2 A/cm
Cooling fan No
Error guiding codes Yes
Thermal overload protection Yes
Housing material Steel, Glass fibre filled polyamide
Heating temperature (max) 250 °C
Power setting 50%,100%
Thermometer mode Yes
Time mode Yes
Power consumption (max) 11.5 kVA
Remote control panel (wired) Yes, with LED display
Bearing support arms Yes, foldable
Yoke storage Yes, internal
Logistics
EAN code 07316573959939
Product net weight 120 kg
eClass name Product for mounting and dismounting and for maintenance
Pack gross weight 146.78 kg
UNSPSC name Induction heaters
