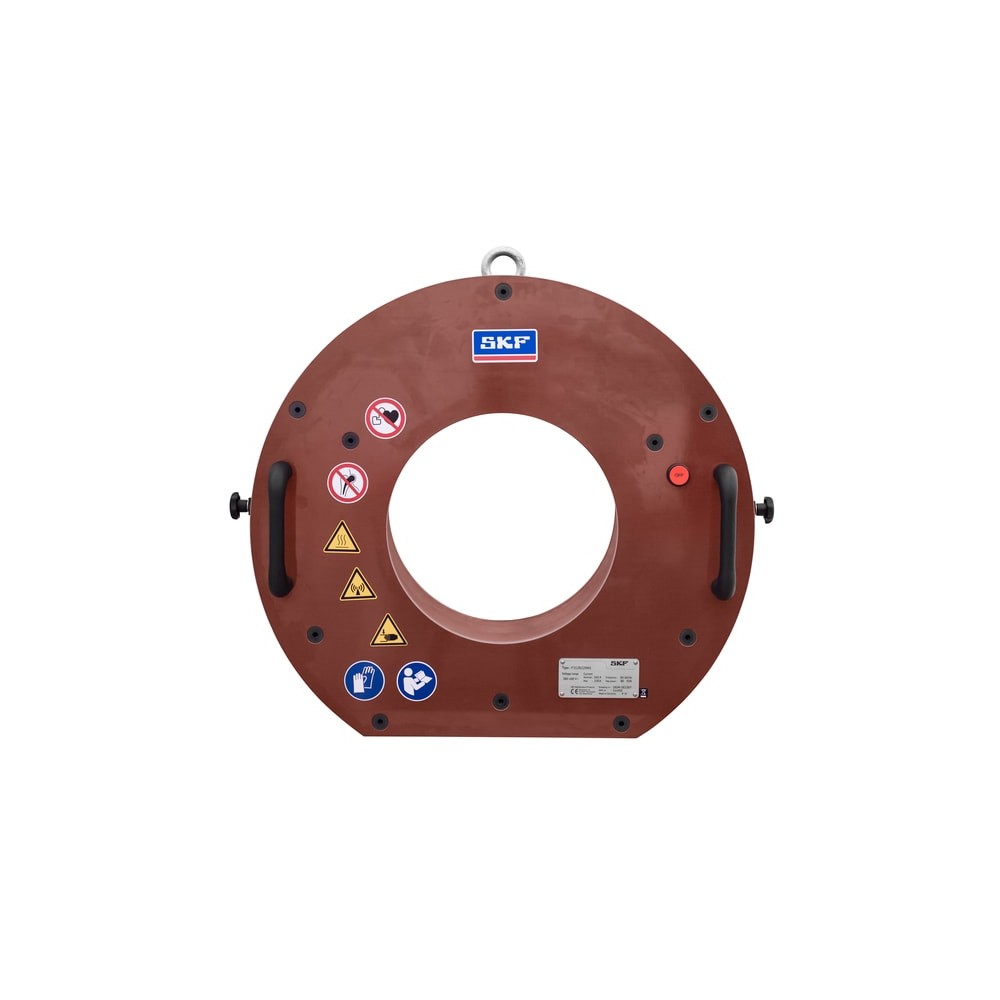

SKF EAZ F312MV Induction heaters

SKF EAZ F312MV Induction heaters

Product Code: EAZ F312MV
Part/No: Eshop042017
Brand: SKF
The fixed size EAZ induction heaters are designed to safely and easily dismount, and mount, cylindrical roller bearing inner rings, which are often mounted with a very tight interference fit. The modular EAZ solution consists of one or two EAZ coils that
Perfect fit
Removal of cylindrical roller bearing inner rings or labyrinth rings without shaft damage
Easy handling
Overheating protection
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Nominal height 60 mm
Total lenght 60 mm
Inner diameter 34 mm
Properties
Voltage 400–480 V
Content EAZ coil,Power cable,Heat Support legs,One pair of Heat and oil resistant gloves TMBA G11H
Colour Brown
Voltage frequency 50–60 Hz
Housing material glass fiber filled epoxyresin, other
Product weight 86 kg
Maximum current (for the coil) 160 A
Bearing Inner ring fit r6
Needed free depth behind bearing 40 mm
Bearing Inner ring bore diameter 280 mm
Bearing Inner ring outer diameter 312 mm
Bearing Inner ring width 220 mm
Logistics
EAN code 07316576058622
Product net weight 86 kg
eClass name Product for mounting and dismounting and for maintenance
Pack gross weight 96 kg
UNSPSC name Induction heaters
