SKF TWIM 15K/110V Induction heaters

Product Code: TWIM 15K/110V

Part/No: Eshop042289

Brand: SKF

Click here for more details

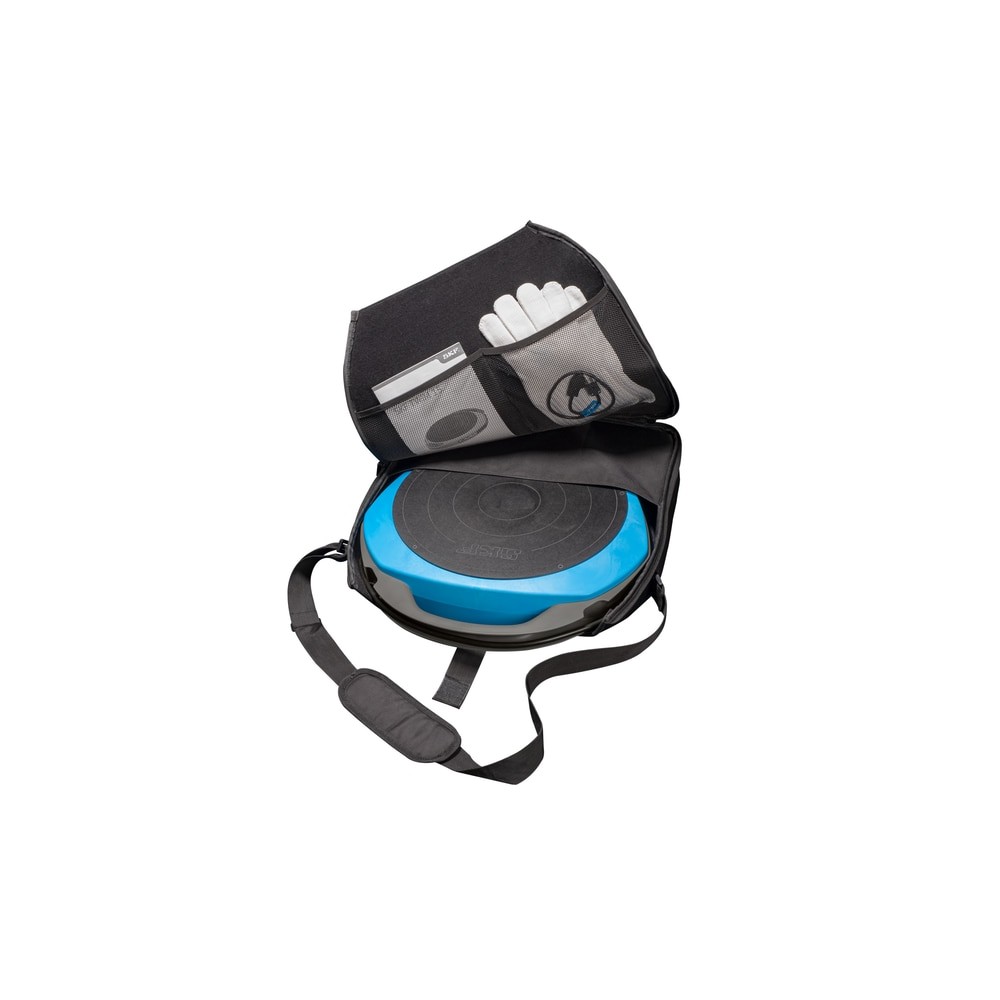

The TWIM 15 kit is a portable and robust induction heater that is designed for safe bearing heating for hot mounting. This compact heater is especially suitable for usage in the field, yet it is compact and versatile for usage on workbenches. The heater utilizes a smart construction and operating software to optimise the bearing heating safety and speed for bearings weighing up to 20 kg. The heater has different power modes to support heating of sensitive bearings (e.g. with reduced clearance) and non-bearing components. This K version of this heater is supplied with a carrying bag with shoulder strap to carry it handsfree and keep your heater clean.

Portable, lightweight, compact and robust
Sturdy carrying bag with shoulder straps and pockets for accessories included
Smart and innovative bearing heating technology
No support yokes required
Automatic temperature control
Detection of bearing size and automatic heating adjustment

€0.00

(*The price will be determined)

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Performance

Properties

Workpiece bore diameter 30 – 320 mm

Workpiece width (max) 85 mm

Colour Blue;Dark Grey

Content TWIM 15 heater;Power cable;Probe;Heat resistant gloves;Carrying bag;Printed instructions for Use

Demagnetisation after heating (according SKF norms) 0 A/cm

Cooling fan Yes

Error guiding codes Yes

Thermal overload protection Yes

Housing material Glassfiber filled special PA

Current consumption (max) 16 A

Heating temperature (max) 200 °C

Power setting 10%;25%;50%;100%

Thermometer mode Yes

Time mode Yes

Power consumption (max) 1.8 kVA

Recommended applications Intended for heating up roller bearings that are mounted with an interference fit on a shaft. Other ring-shaped metallic components can also be heated.

Heating time control 0.1 – 60 min

Heating time steps 0.1 min

Heating temperature control 40 – 200 °C

Heating temperature steps 1 °C

Temperature measurement Magnetic probe K-type

Total product weight 8.08 kg

Voltage 100–120 V

Voltage frequency 50–60 Hz

Workpiece weight (max) 20 kg

Logistics

Pack gross weight 8.861 kg

eClass name Product for mounting and dismounting and for maintenance
