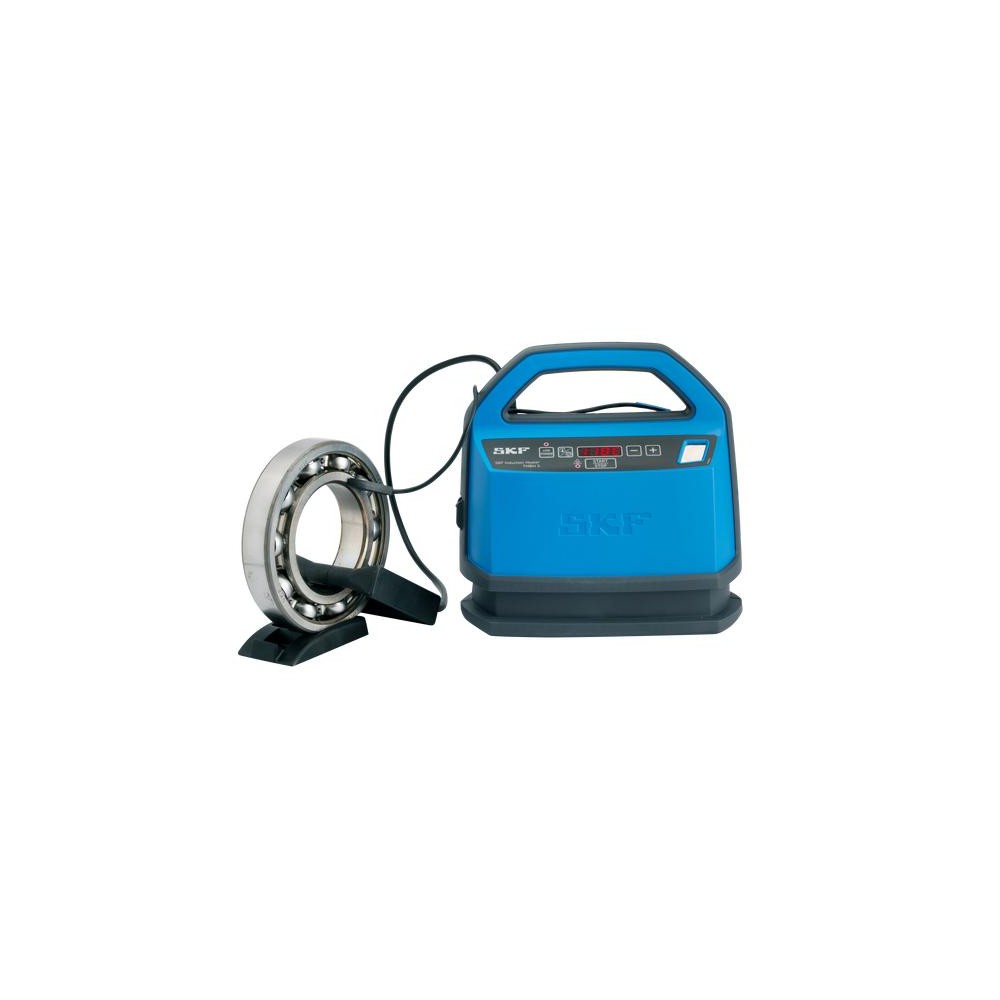

SKF TMBH 5/230V Induction heaters

SKF TMBH 5/230V Induction heaters

Product Code: TMBH 5/230V
Part/No: Eshop042447
Brand: SKF
The compact induction heater TMBH 5 can be used in wide a range of situations including at a work bench, on the factory floor or out in the field. Typical applications include maintenance and service jobs on gearboxes, pumps, fans and blowers. The light weight and built-in handle make it portable to use in a variety of locations, while it can easily be stored in a locked place such as the trunk of a car or small storeroom.
Innovative heating of bearings
Highly portable, compact and light in weight
Automatic temperature monitoring
No need to choose separate yoke for each component
Use of advanced medium frequency electronics
Choice of power settings
User-friendly control panel
Silent operation
€2,665.94
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Properties
Workpiece bore diameter 20 – 100 mm
Workpiece width (max) 50 mm
Colour Blue;Dark Grey
Content TMBH 5 heater with power cable;Clamp;Bearing holder;Probe;Heat resistant gloves;Printed instructions for Use
Demagnetisation after heating (according SKF norms) 0 A/cm
Cooling fan No
Error guiding codes Yes
Thermal overload protection Yes
Housing material Special PA, overmoulded with TPU rubber
Current consumption (max) 2 A
Heating temperature (max) 200 °C
Power setting 10%;25%;50%;100%
Thermometer mode Yes
Time mode Yes
Power consumption (max) 0.35 kVA
Recommended applications It is solely intended to heat up bearings, gears and other industrial annular components.
Heating time control 0.1 – 60 min
Heating time steps 0.1 min
Heating temperature control 40 – 200 °C
Heating temperature steps 1 °C
Temperature measurement Magnetic probe K-type
Total product weight 3 kg
Voltage 220–240 V
Voltage frequency 50–60 Hz
Workpiece weight (max) 5 kg
Logistics
Pack gross weight 3.528 kg
eClass name Product for mounting and dismounting and for maintenance
UNSPSC code 40-10-18-31
EAN code 07316581962013
Product net weight 3 kg
eClass code 23-05-19-01
