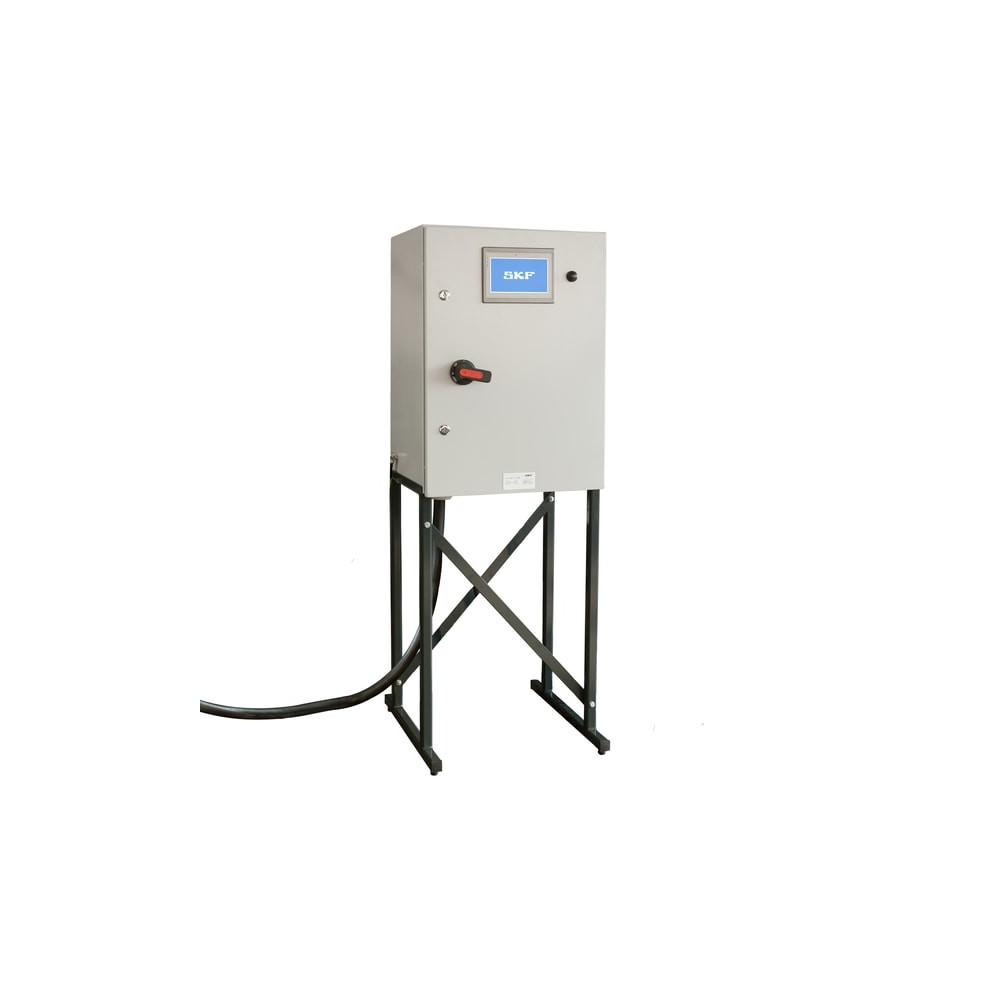

SKF EAZ CCD 350B Induction heaters

Product Code: EAZ CCD 350B

Part/No: Eshop042231

Brand: SKF

Click here for more details

The EAZ control cabinets are designed to enable the easy operation of the EAZ coils. It allows the user to conveniently set the heating parameters and control the heating process. The type CCD is for applications where different EAZ coils are required (e.

Intuitive usage do the use a touch panel
Automatic temperature control
Demagnetization for mounting and dismounting
CCD version for two coils and CC for one coil

€0.00

(*The price will be determined)

Tax included

Quantity

100% Shopping Security

On Request

Properties

Voltage 400–V

Content EAZ control cabinet,Support legs,Grounding cable with magnetic clamp EAZ CC-GRC,Overheating switch control cable (black) and temperature probe cable (green) EAZ CC-OSCTPC,Temperature probe TMBH 1-3

Voltage frequency 50–60 Hz

Product weight 82 kg

Connects to number of EAZ coils (max) 2

Maximum current (for the coil) 350 A

Height of support legs 750 mm

Logistics

EAN code 07316579020701

Product net weight 82 kg

eClass name Product for mounting and dismounting and for maintenance

Pack gross weight 100 kg

UNSPSC name Induction heaters
