SKF TMMR 200F Jaw pullers

Product Code: TMMR 200F

Part/No: 033879

Brand: SKF

Click here for more details

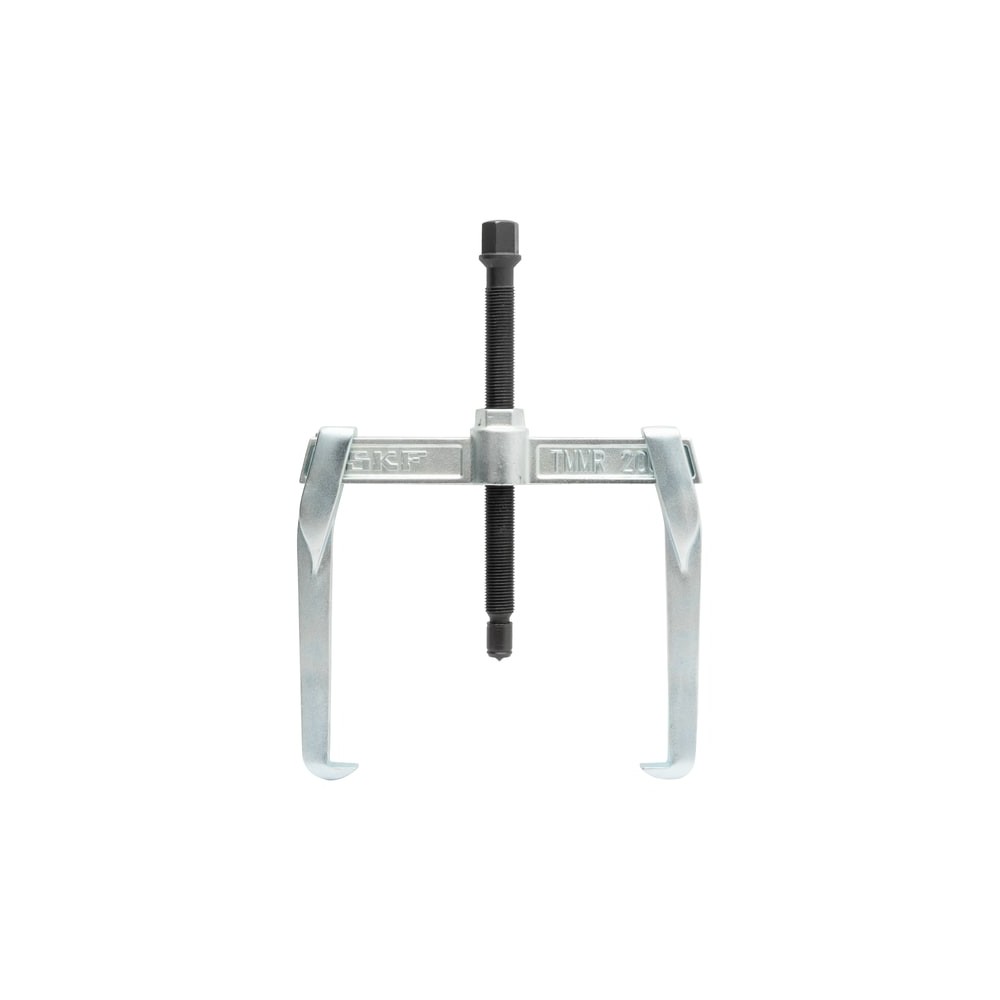

The multi-purpose SKF Reversible Jaw Puller TMMR 200F is designed for internal and external pulling jobs of bearings and other components such as gears and pulleys. The two arms of the puller can be mounted with the claws facing inside or facing outside, making it a versatile and essential tool for mechanical workshops.

Easy adjustment of the width of grip with self-locking arms
Essential and versatile tools for every workshop for internal and external pulling appliactions
Enhanced corrosion resistance and easy cleaning with zinc passivated arms and beam
No permanent deformation of puller arms when used up to maximum withdrawl force
Optional accessories further increase the versatility of the puller

€199.38

Tax included

Quantity

100% Shopping Security

Shipped within 24 hours

Dimensions

Product weight 2.5 kg

Performance

Properties

Material Alloy engineering steels, hardened and tempered

Coating Zinc coated

Effective arm length 169 mm

Claw height 9 mm

Claw length 18 mm

Claw width 22 mm

Puller or Adapter hexagon size 30 mm

Width of grip external 65 – 204 mm

Colour Metallic

Suitable for bearing type (s) All

Content 1x Puller TMMR 200F;1x Tube of spindle grease LGEV2/0.035;1x Printed instructions for use

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) No

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) 2 No

Dismounting force generation Spindle

Suitable for workpiece dismounting from a Housing Yes, with spindle support (not included)

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft) Yes

Number of arms 2

Pulling force (max) 50 kN

Recommended applications For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft

Special features Reversible arms;Selflocking arms

Spindle torque (max) 115 N·m

Width of grip internal 114 – 204 mm

Logistics

Pack gross weight 2.61 kg

eClass name Product for mounting and dismounting and for maintenance

UNSPSC code 27-11-17-12

EAN code 07316571527321

Product net weight 2.6 kg

eClass code 23-05-19-01
