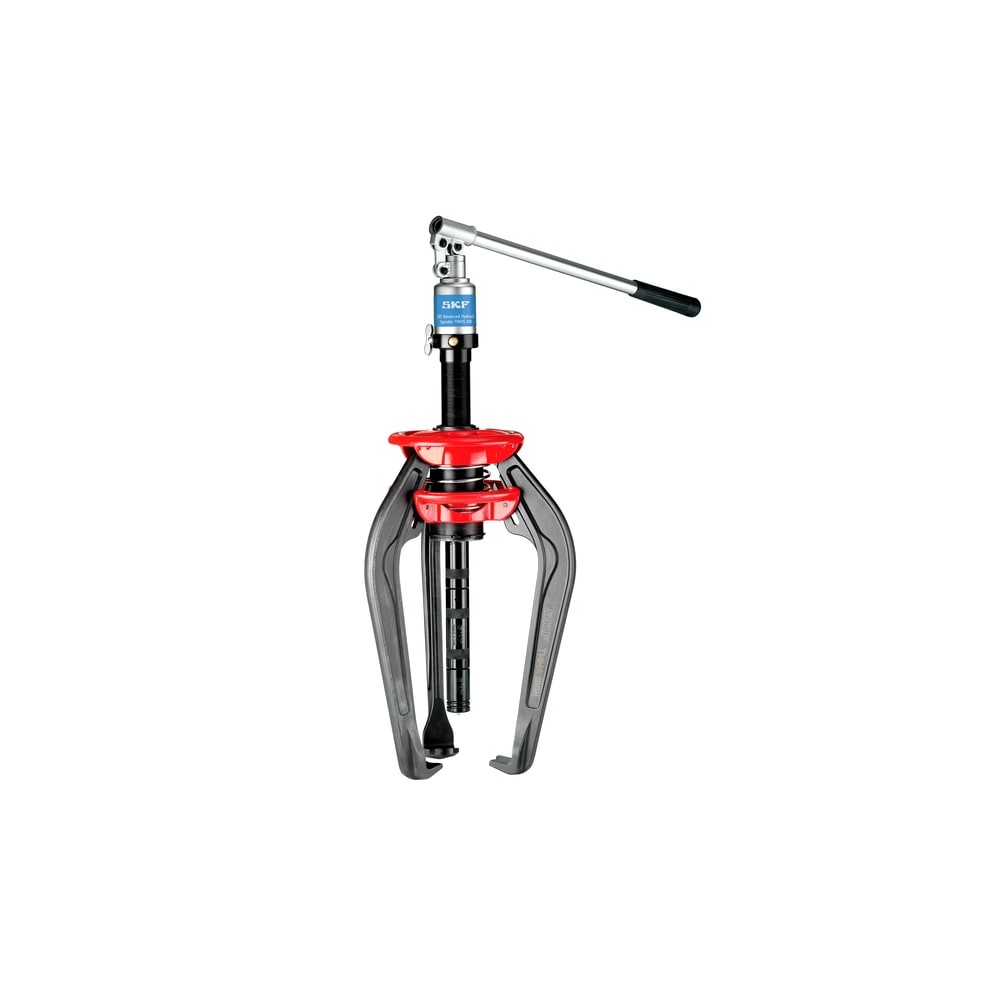

SKF TMMA 100H Jaw pullers

Product Code: TMMA 100H

Part/No: Eshop041810

Brand: SKF

Click here for more details

The SKF EasyPull TMMA 100H is one of the most user-friendly and safest bearing dismounting tools on the market. It is very robust and ergonomically designed and features spring-operated arms that enable the user to position the puller behind the component

Integrated, ready-to-use hydraulic cylinder, pump and puller - assembly-free and no purchase of additional parts
Safety valve prevents spindles and pullers from being overloaded if excessive force is applied
The spring-loaded centre point on the h

€1,279.63

Tax included

Quantity

100% Shopping Security

On Request

Properties

Content 1x Puller TMMA 100H , 1x Mounted hydraulic spindle TMHS 100, 3x Spindle extension pieces, 1x Nose piece, 1x Handle, 1x Handle rod,1x Printed instructions for use

Recommended applications For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft

Colour Black, with red handle

Special features Spring operated opening mechanism

Product weight 13.2 kg

Number of arms 3

Pulling force (max) 100 kN

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes

Dismounting force generation Hydraulic spindle (TMHS 100)

Suitable for workpiece dismounting from a Housing No

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft) Yes

Suitable for bearing type(s) All
