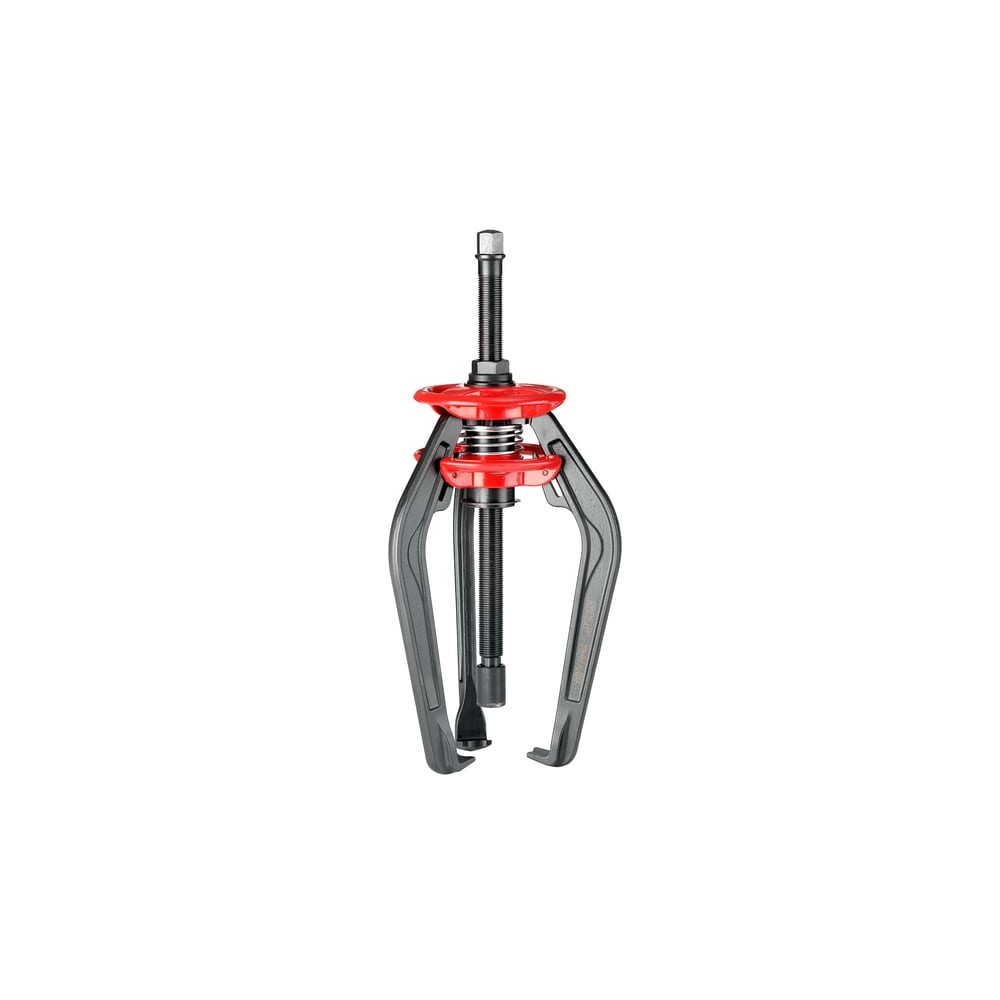

SKF TMMA 80 Jaw pullers

Product Code: TMMA 80

Part/No: 033966

Brand: SKF

Click here for more details

The SKF EasyPull TMMA 80 is one of the most user-friendly and safest bearing dismounting tools on the market. It is very robust and ergonomically designed and features spring-operated arms that enable the user to position the puller behind the component with just one movement. The TMMA 80 is mechanically operated and capable of withdrawl forces up to 80 kN for components with a maximum outer diameter of 200 mm (7.8 in).

Unique red rings spring-operated opening mechanism allow the TMMA 80 to be placed behind the component with just one movement
Self-centring capability and nosepiece help to avoid damage to shaft
Self-locking arms help to prevent puller slipping under load
Sturdy design allows safe dismounting of components in the tightest applications
Hydraulic force generators TMHS 75 available as an accessory

€694.34

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Product weight 5.7 kg

Performance

Properties

Material Alloy engineering steels, hardened and tempered

Coating Black phosphated, red powdercoated

Effective arm length 200 mm

Claw height 9.8 mm

Claw length 18 mm

Claw width 28 mm

Puller or Adapter hexagon size 30 mm

Puller adaptor thread UN 1.25 x 12 tpi

Width of grip external 52 – 200 mm

Colour Black, with red handle

Suitable for bearing type (s) All

Content 1x Puller TMMA 80 with mechanical spindle; 1x Tube of spindle grease LGEV2/0.035;1x Printed instructions for use

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) No

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) 2 No

Dismounting force generation Spindle

Suitable for workpiece dismounting from a Housing No

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft) Yes

Number of arms 3

Pulling force (max) 80 kN

Recommended applications For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft

Special features Spring operated opening mechanism

Spindle torque (max) 175 N·m

Logistics

Pack gross weight 6.2 kg

eClass name Product for mounting and dismounting and for maintenance

UNSPSC code 27-11-17-12

EAN code 07316572464731

Product net weight 5.68 kg

eClass code 23-05-19-01
