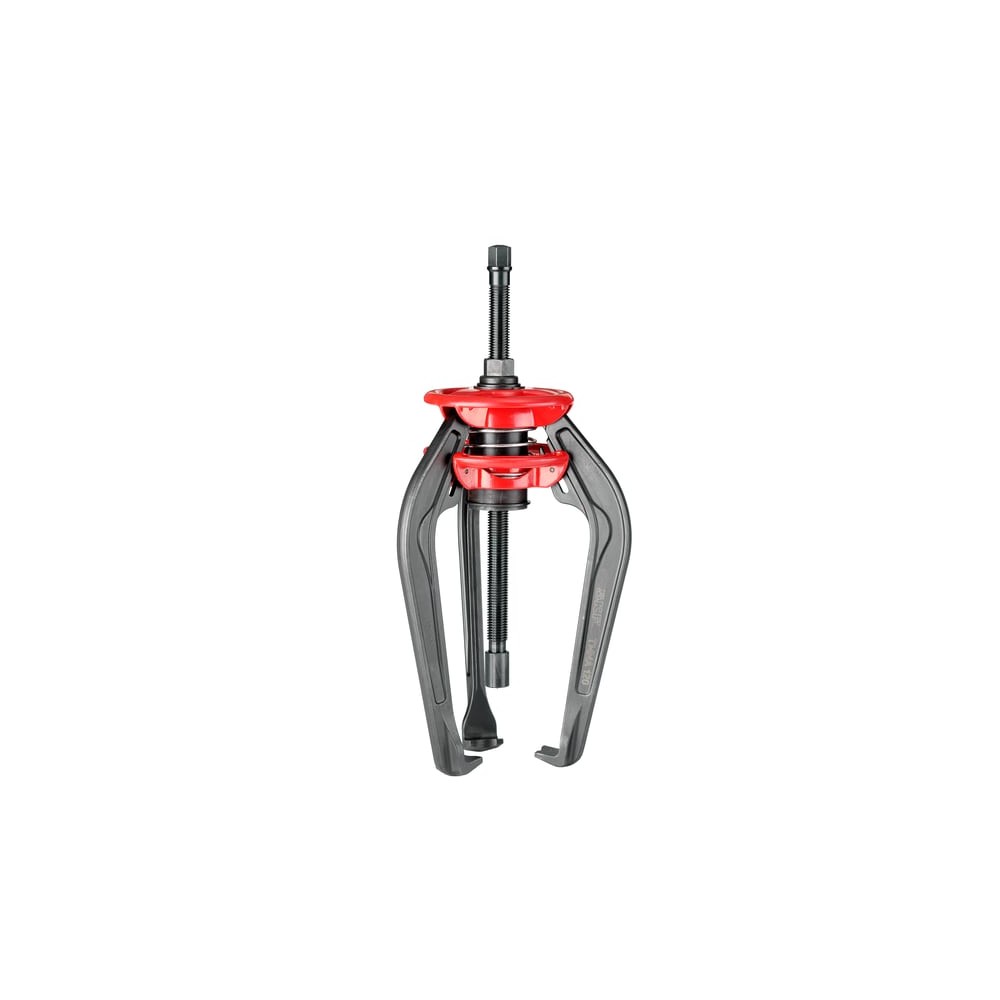

SKF TMMA 120 Jaw pullers

Product Code: TMMA 120

Part/No: 033967

Brand: SKF

Click here for more details

The SKF EasyPull TMMA 120 is one of the most user-friendly and safest bearing dismounting tools on the market. It is very robust and ergonomically designed and features spring-operated arms that enable the user to position the puller behind the component

Unique red rings spring-operated opening mechanism allow the TMMA 120 to be placed behind the component with just one movement
Self-centring capability and nosepiece help to avoid damage to shaft
Self-locking arms help to prevent puller slipping u

€853.07

Tax included

Quantity

100% Shopping Security

On Request

Properties

Content 1x Puller TMMA 120 with mechanical spindle, 1x Tube of spindle grease LGEV2/0.035,1x Printed instructions for use

Recommended applications For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft

Colour Black, with red handle

Special features Spring operated opening mechanism

Product weight 10.9 kg

Number of arms 3

Pulling force (max) 120 kN

Spindle torque (max) 265 N·m

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes

Dismounting force generation Spindle

Suitable for workpiece dismounting from a Housing No

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft) Yes

Suitable for bearing type(s) All
