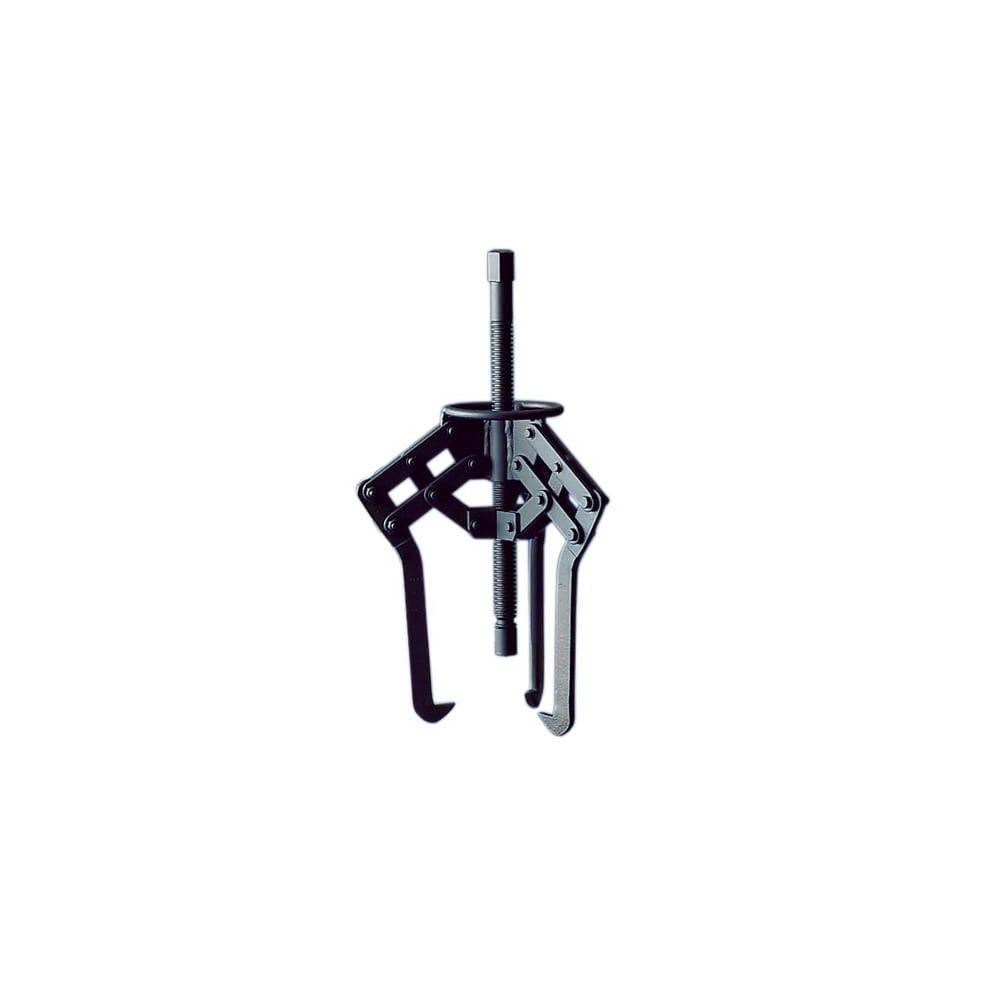

SKF TMMP 6 Jaw pullers

Product Code: TMMP 6

Part/No: 033976

Brand: SKF

Click here for more details

The SKF Heavy Duty Jaw Puller TMMP 6 is a mechanical three arm puller that is designed for dismounting bearings. The puller is characterised by its unique pantograph arm system that gives eXceptional grip and helps to counteract misalignment during dismounting operations. The puller is designed for easy, fast and safe dismounting jobs of bearings and similar components with interference fit on the shaft.

Fast, efficient and smooth handling
Unique pantograph system gives eXceptional grip and helps counteract misalignment during operation
The three arm TMMP 6 jaw puller has a maXimum withdrawl force of up to 60 kN (6.7 US ton)
Blackened, high quality steel for corrosion resistance
Optional arms available for different arm lenths

€967.14

Tax included

Quantity

100% Shopping Security

Shipped within 24 hours

Dimensions

Product weight 4 kg

Performance

Properties

Material Alloy engineering steels, hardened and tempered

Coating Chemical blackened

Effective arm length 120 mm

Claw height 15 mm

Claw length 19 mm

Claw width 8 mm

Width of grip external 50 – 127 mm

Colour Black

Suitable for bearing type (s) All

Content 1x Puller TMMP 6;1x Printed instructions for use

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) No

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) 2 No

Dismounting force generation Spindle

Suitable for workpiece dismounting from a Housing No

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft) Yes

Number of arms 3

Pulling force (max) 60 kN

Recommended applications For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft

Special features Pantograph mechanism for parallel openning of arms with selflocking function, heavy duty version. Alternative arm lenghs available.

Spindle torque (max) 175 N·m

Logistics

Pack gross weight 4.472 kg

eClass name Product for mounting and dismounting and for maintenance

UNSPSC code 27-11-17-12

EAN code 07316577311481

Product net weight 4 kg

eClass code 23-05-19-01
