SKF TMHP 50/320 Jaw pullers

Product Code: TMHP 50/320

Part/No: Eshop041454

Brand: SKF

Click here for more details

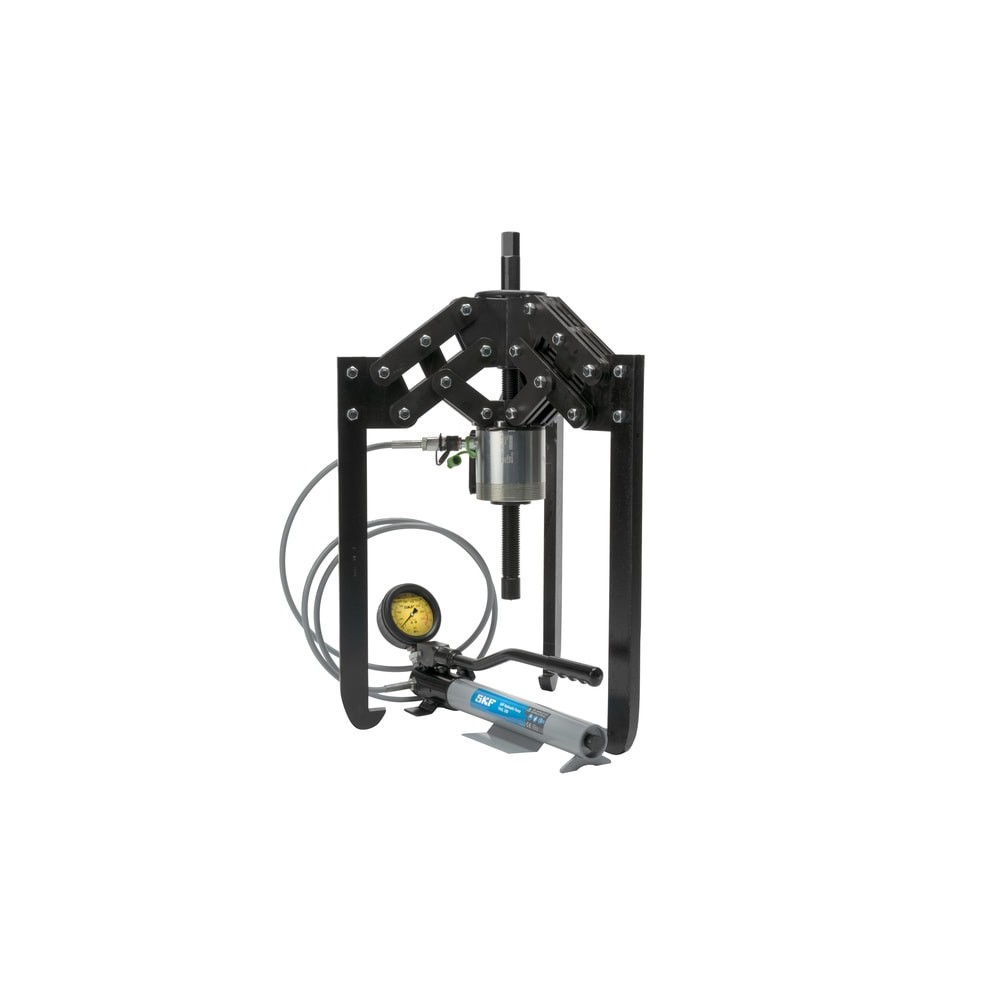

The SKF Hydraulically Assisted Heavy Duty Jaw Puller TMHP 50/320 is a powerful puller for dismounting large bearings and components. The self-centring puller, unique pantograph system and handling options make the puller safe and easy to use. The combination of a spindle and a hydraulic cylinder helps to mount the puller quickly. The SKF TMHP 50/320 is supplied in a complete ready-to-use set with hydraulic pump, oil and connections.

High pulling forces can be applied easily and safely with self-centring puller
Easy adjustable worklength through combination of spindle and hydraulic cylinder
Unique pantograph system gives eXceptional grip and helps counteract misalignment during operation
Simple operation with lifting handle and eye bolt
Ready-to-use with SKF Hydraulic Pump TMJL 100, fleXible high pressure hose and hydraulic oil included

€12,523.94

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Product weight 72 kg

Performance

Properties

Material Alloy engineering steels, hardened and tempered

Coating Chemical blackened

Effective arm length 320 mm

Claw height 40 mm

Claw length 32 mm

Claw width 24 mm

Width of grip external 310 – 506 mm

Colour Black

Suitable for bearing type (s) All

Content 1x Puller TMHP 50/320;1x TMJL 100 Pump (complete in wooden carrying case);1x Printed instructions for use;1x Piston hold tool;1x Wooden storage crate

Hydraulic Cylinder, Oil capacity 260 cm³

Hydraulic Cylinder, piston stroke 40 mm

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) No

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) 2 No

Dismounting force generation A hydraulic pump is needed to advance the piston of the hydraulic cylinder in this puller, in which a mechanical spindle is fitted. The recommended pump TMJL to connect to the hydraulic cylinder, is included with this puller.

Suitable for workpiece dismounting from a Housing No

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft) Yes

Hydraulic_Cylinder, Maximum Operating Pressure (Bar) 800 bar

Hydraulic_Cylinder, Maximum Operating Pressure (Mpa) 80 MPa

Number of arms 3

Oil viscosity (maximum) 300

Pulling force (max) 500 kN

Recommended applications For the dismounting of larger bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft

Logistics

Pack gross weight 91 kg

eClass name Product for mounting and dismounting and for maintenance

UNSPSC code 27-11-17-12

EAN code 07316570663518

Product net weight 92 kg

eClass code 23-05-19-01
