SALE!

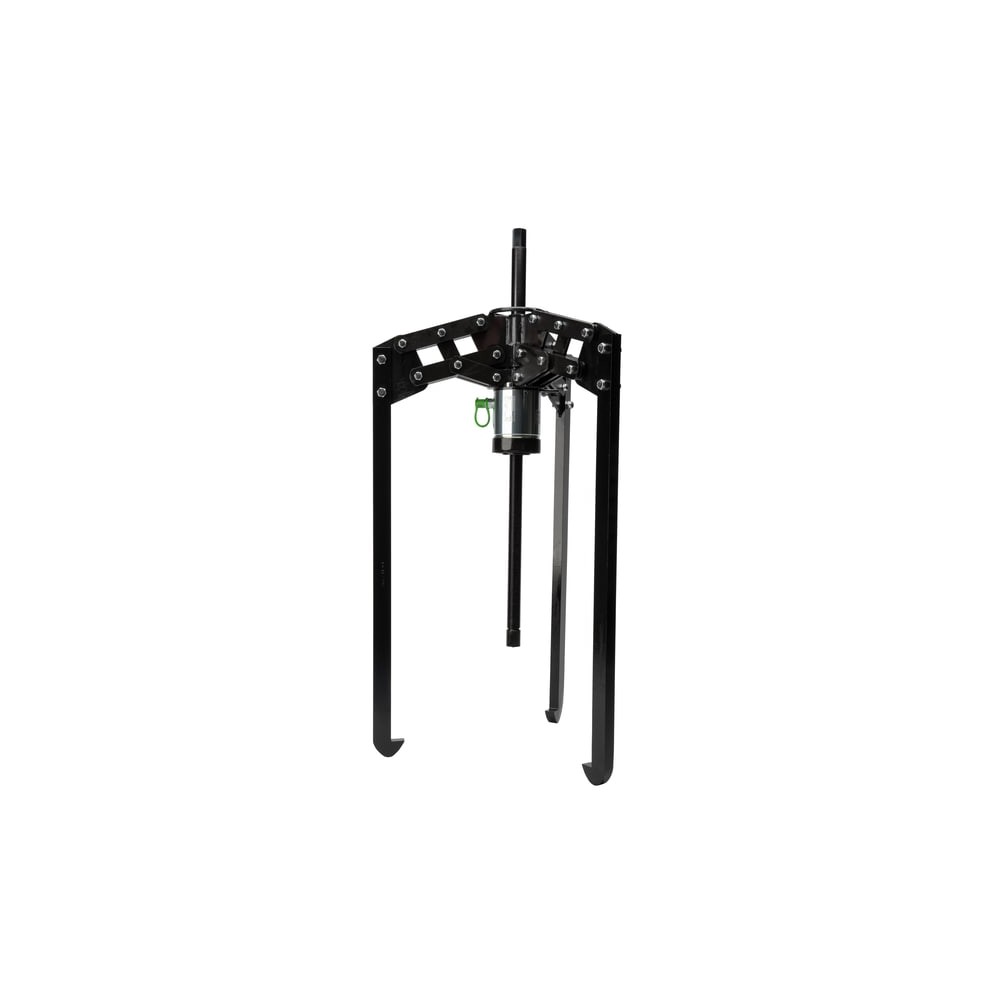

SKF TMHP 30/600X Jaw pullers

Product Code: TMHP 30/600X

Part/No: Eshop041413

Brand: SKF

Click here for more details

The SKF Hydraulically Assisted Heavy Duty Jaw Puller TMHP 30/600X is a powerful puller for dismounting large bearings and components. The self-centring puller, unique pantograph system and handling options make the puller safe and easy to use. The combina

High pulling forces can be applied easily and safely with self-centring puller
Easy adjustable worklength through combination of spindle and hydraulic cylinder
Unique pantograph system gives eXceptional grip and helps counteract misalignment durin

€7,558.05

Tax included

Quantity

100% Shopping Security

On Request

Properties

Content 1x Puller TMHP 30/600X,1x Printed instructions for use,1x Piston hold tool,1x Wooden storage crate

Recommended applications For the dismounting of larger bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft

Colour Black

Product weight 58 kg

Number of arms 3

Pulling force (max) 325 kN

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes

Dismounting force generation A hydraulic pump is needed to advance the piston of the hydraulic cylinder in this puller, in which a mechanical spindle is fitted. The recommended pump TMJL to connect to the hydraulic cylinder, is available as accessory.

Suitable for workpiece dismounting from a Housing No

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft) Yes

Suitable for bearing type(s) All

Oil viscosity (maximum) 300

Hydraulic Cylinder, Oil capacity 204 cm³

Hydraulic Cylinder, piston stroke 50 mm

Hydraulic Cylinder, Maximum Operating Pressure (Mpa) 80 MPa

Logistics

EAN code 07316577311436

Product net weight 58 kg

eClass name Product for mounting and dismounting and for maintenance
