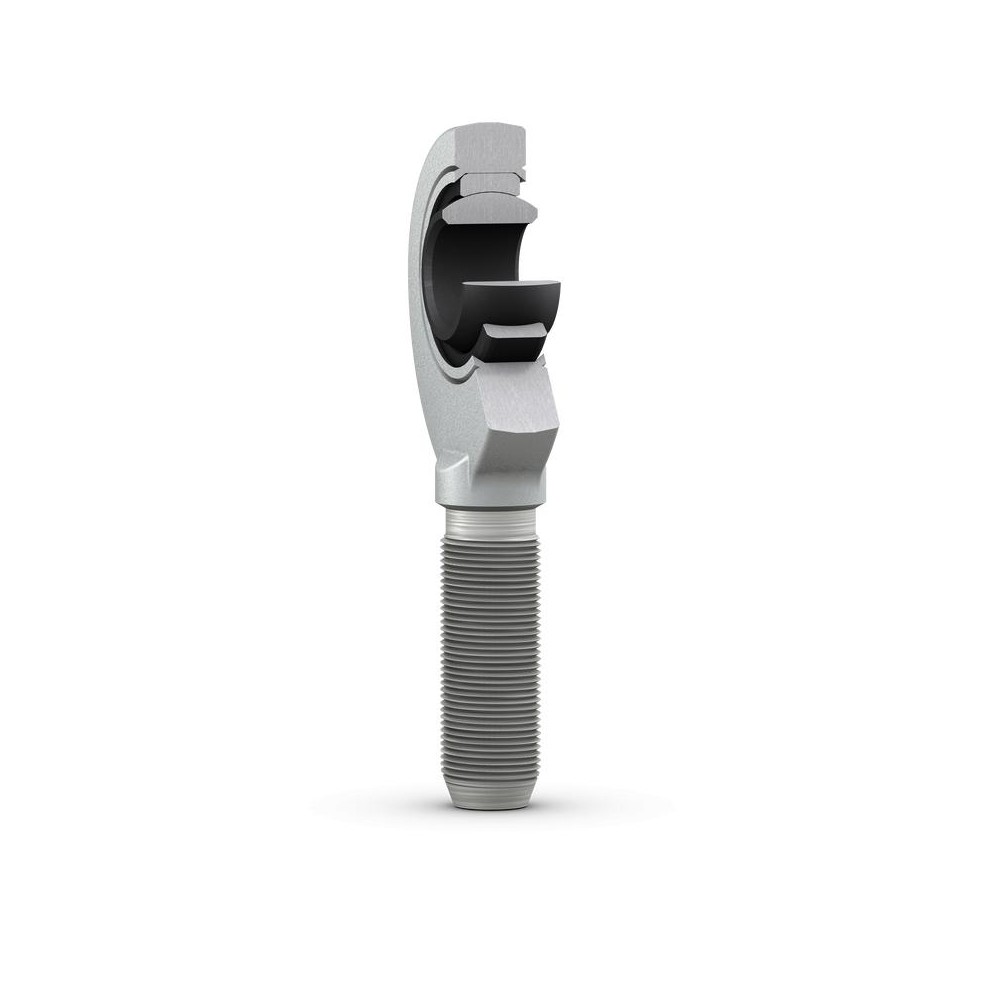

SKF SA 8 E Rod ends

SKF SA 8 E Rod ends

Product Code: SA 8 E
Part/No: Eshop019432
Brand: SKF
These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated only from the side. The male thread is available with a left- (prefix SAL) or right-hand thread.
Suitable for heavy static, alternating or impact loads
Simple and ready-to-mount
€32.46
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 8 mm
Centre height housing from end of shank 42 mm
Housing length total 56 mm
Width bearing inner ring 8 mm
Width housing eye 6.5 mm
Diameter Head 25 mm
Thread G M8
Performance
Basic dynamic load rating 5.5 kN
Basic static load rating 12.9 kN
Properties
Sealing Without
Sliding contact surface combination Steel/steel, standard
Material inner ring Bearing steel
Material outer ring Bearing steel
Maintenance Relubrication required
Material housing Steel
Attachment feature rod end shank Right-hand male thread
Logistics
EAN code 07316577002501
Product net weight 0.0306 kg
eClass name Rod end (spherical plain bearing)
