SKF FYNT 60 F Roller bearing units

SKF FYNT 60 F Roller bearing units

Product Code: FYNT 60 F
Part/No: Eshop011466
Brand: SKF

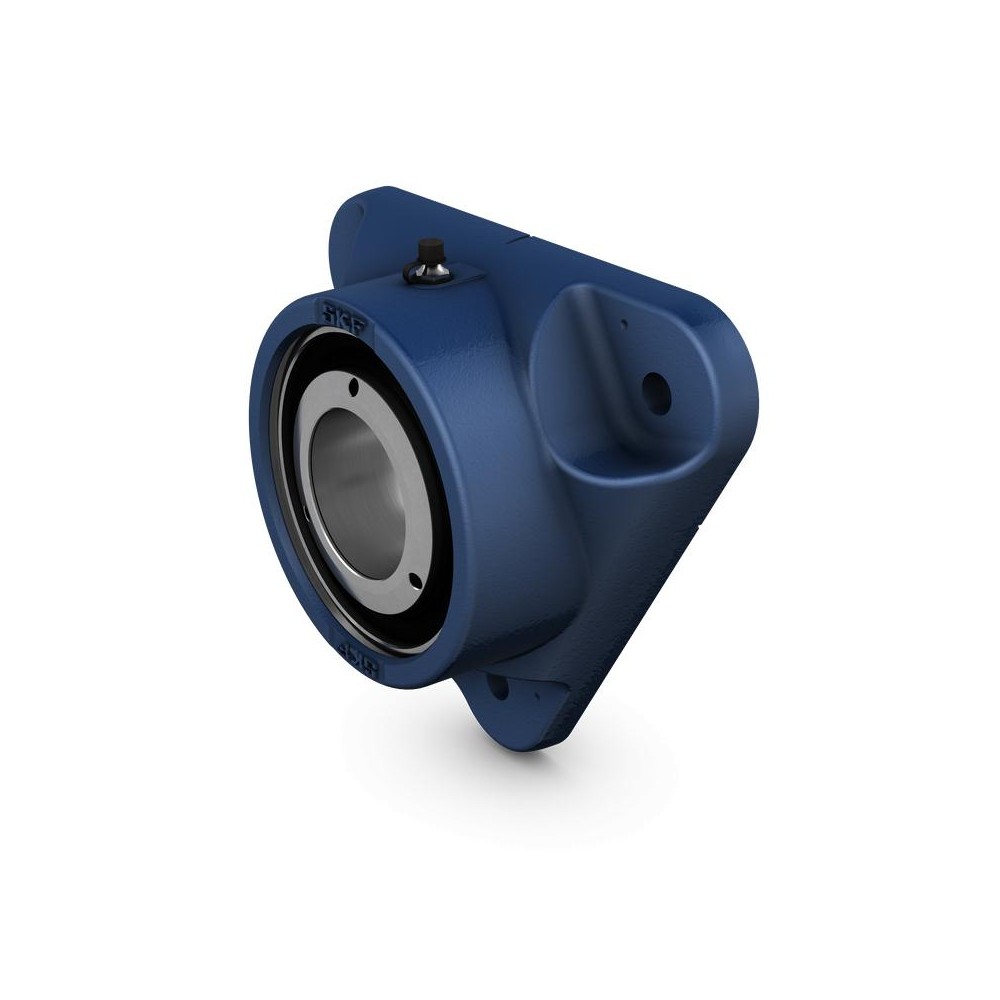

Triangular flanged roller bearing units consist of a spherical roller bearing mounted in a cast iron housing that can be bolted to a machine wall. They are robust, ready-to-mount units that are assembled, lubricated and sealed at the factory for maximum service life. The simple installation, easy alignment and reliable locking technology of SKF ConCentra units contribute to a smooth operation.
Ready to mount
Factory lubricated and sealed
Long service life
Minimal maintenance
€1,416.89
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 60 mm
Performance
Basic dynamic load rating 156 kN
Basic static load rating 166 kN
Limiting speed 2,900 r/min
Properties
Width total 78.7 mm
Bearing width total 70 mm
Housing overall width 78 mm
Pitch diameter of bolt holes of round and triangle flange type housing 190 mm
Attachment bolt diameter 12 mm
Housing type Flanged
Bore type Cylindrical
Lubricant Grease
Material housing Cast iron
Bearing housing seal type Radial lip seal
Bearing insert Spherical roller bearing
Housing type 4 Flanged
Flanged housing type Triangular
Number of bolt holes for fasteners 3
Relubrication hole With
Grease fitting With
Retaining feature inner ring SKF ConCentra
Sealing unit Optional end cover
Coating Without
Material bearing Bearing steel
Bearing position Locating
Logistics
Pack gross weight 6.882 kg
eClass name Mounted bearing unit (unclassified)
EAN 7316574500505
Product net weight 4.5 kg
