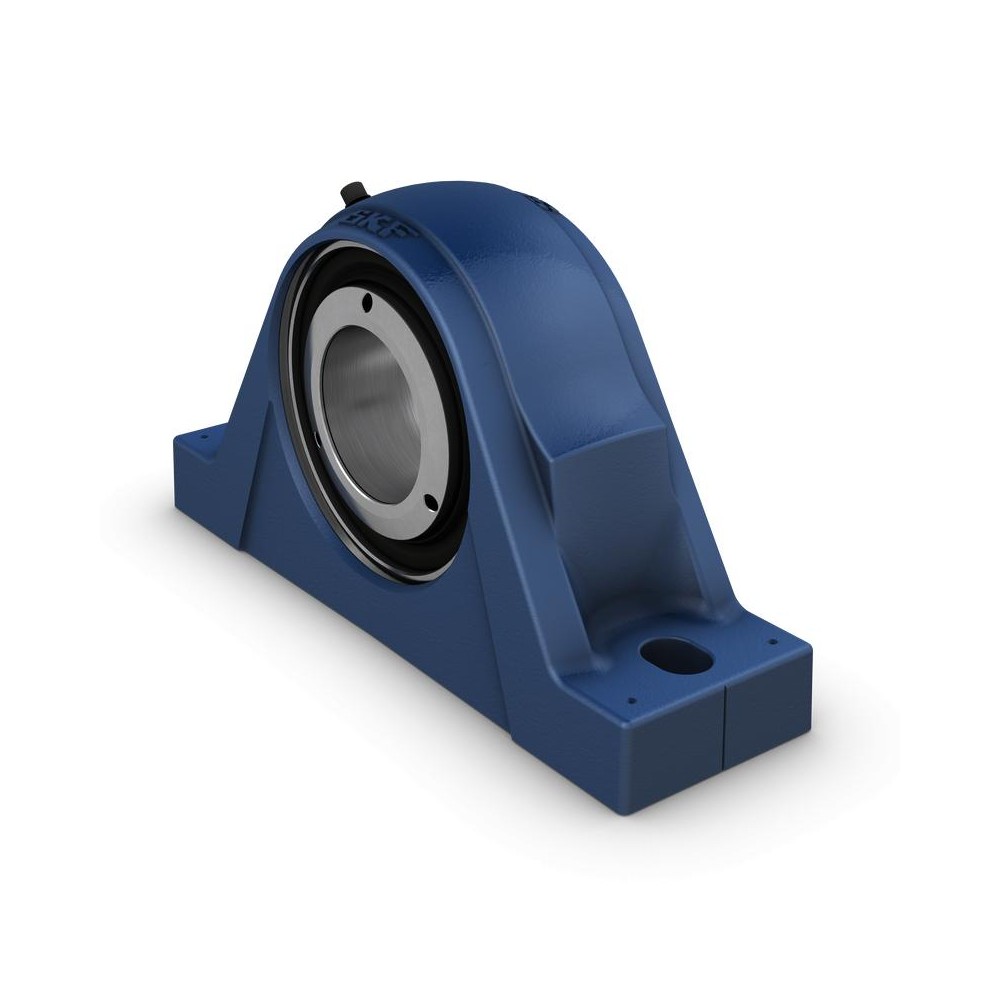

SKF SYNT 70 FTS Roller bearing units

SKF SYNT 70 FTS Roller bearing units

Product Code: SYNT 70 FTS
Part/No: Eshop020104
Brand: SKF
Pillow (plummer) block roller bearing units and take-up roller bearing units consist of a spherical or tapered roller bearing mounted in a non-split housing that can be bolted to a support surface. This variant has a spherical roller bearing, a two-bolt base and SKF ConCentra locking, creating a true concentric tight fit, and setting the correct internal clearance within the bearing. The units are sealed and lubricated and ready to use. This bearing unit covers a wide range of requirements, in metric dimensions.
Ready to mount
Robust
Factory lubricated and sealed
Quick mounting
Long service life
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 70 mm
Performance
Basic dynamic load rating 208 kN
Basic static load rating 228 kN
Limiting speed 3,600 r/min
Properties
Centre height pillow block 95 mm
Bearing width total 72 mm
Centre distance between bolt holes 260 mm
Housing overall width 90 mm
Attachment bolt diameter 20 mm
Housing type Pillow block
Bore type Cylindrical
Lubricant Grease
Material housing Cast iron
Bearing housing seal type Labyrinth seal
Bearing insert Spherical roller bearing
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole With
Grease fitting With
Retaining feature inner ring SKF ConCentra
Sealing unit Optional end cover
Coating Without
Material bearing Bearing steel
Bearing position Locating
Logistics
Pack gross weight 11.59 kg
eClass name Mounted bearing unit (unclassified)
EAN 7316574448272
Product net weight 8.85 kg
